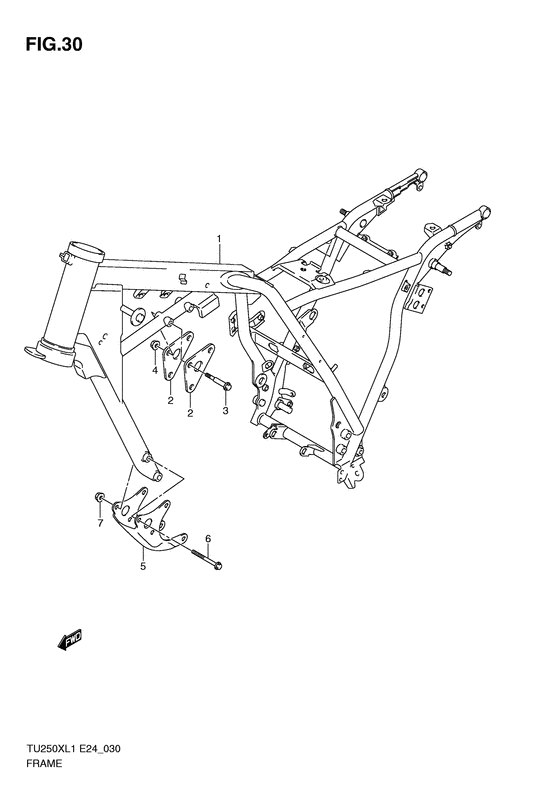

Frame Diagram Suzuki TU250
- Year
- 2011
- Model code
- TU250XL1(E24) L1
- Engine Capacity
- 250
- Model
- TU250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-26G40-019 FRAME(BLACK) |
41100-26G40-019 |
US $1,176.48 |
||
|
2
|
2
41991-26G00-000 PLATE,ENG MTG UPR |
41991-26G00-000 |
from US $6.15 |
||
|
3
|
3
09103-08081-000 BOLT(8X50)Bolt, 8x50 Bolt (8x50); |
09103-08081-000 |
from US $5.07 |
||
|
4
|
4
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
5
|
5
41992-38300-019 PLATE,ENGINE MOUNT LWRPlate, mount lower (black) Plate, mount lower; |
41992-38300-019 |
US $12.51 |
||
|
6
|
6
09103-08037-000 BOLT(8X67)Bolt (8x67); |
09103-08037-000 |
from US $8.91 |
||
|
7
|
7
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
