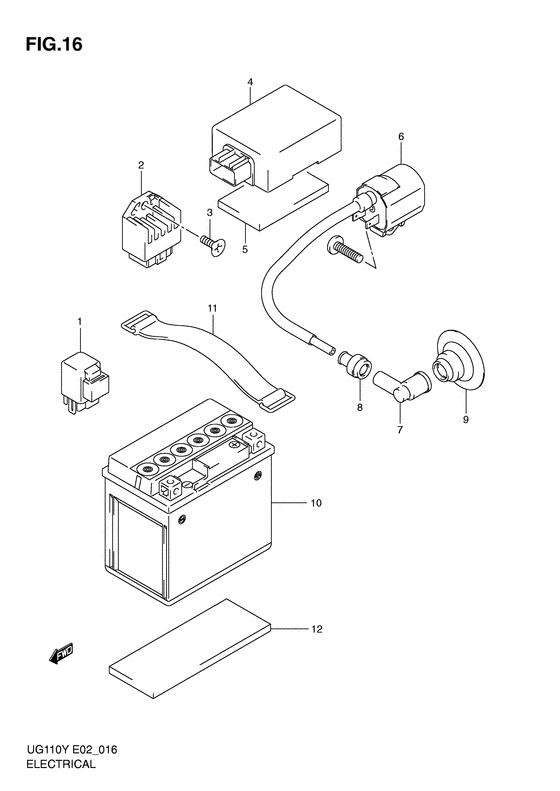

Electrical Diagram Suzuki UG110 Address 110
- Year
- 2000
- Model code
- UG110Y(E2) Y
- Engine Capacity
- 110
- Model
- UG110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-41D01-000 RELAY ASSY,STARTINGRelay assy, starting motor |
31800-41D01-000 |
US $47.47 |
||
|
2
|
2
32800-47E00-000
New Genuine Part
|
32800-47E00-000 |
— | ||
| replacements | |||||
|
2
|
2
32800-41H00-000
Rectifier Assy
|
32800-41H00-000 |
— | ||
|
2
|
2
32800-41H01-000 Rectifier Assy |
32800-41H01-000 |
from US $69.55 |
||
|
3
|
3
02112-06123-000
Screw, breather cover
Screw; |
02112-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0612B-000 SCREWScrew, oil guide plate Screw; |
02112-0612B-000 |
from US $0.76 |
||
|
3
|
3
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
4
|
4
32900-16F10-000 CDI UNITCdi unit |
32900-16F10-000 |
US $276 |
||
|
5
|
5
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) Protector (170x95x3.0); Cut as required profile, (50x30x3) |
33651-37000-000 |
from US $4.41 |
||
|
6
|
6
33410-16F00-000 COIL ASSY,IGNITIONCoil assy, ignition |
33410-16F00-000 |
US $85.38 |
||
|
7
|
7
33510-35411-000 Cap,spark plugCap assy, spark plug |
33510-35411-000 |
from US $32.44 |
||
|
8
|
8
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, hightension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
9
|
9
33543-02100-000 BOOT,SPARK PLUGBoot, spark plug cap |
33543-02100-000 |
US $2.82 |
||
|
10
|
10
33610-40B20-000
BATTERY ASSY(YTX5L-BS,12V4.2AH
Battery assy (ftx5l-bs,12v,4ah); |
33610-40B20-000 |
— | ||
|
11
|
11
09462-00055-000 BAND |
09462-00055-000 |
from US $9.50 |
||
|
12
|
12
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) Protector (170x95x3.0); Cut as required profile, (40x85x3) |
33651-37000-000 |
from US $4.41 |
||
