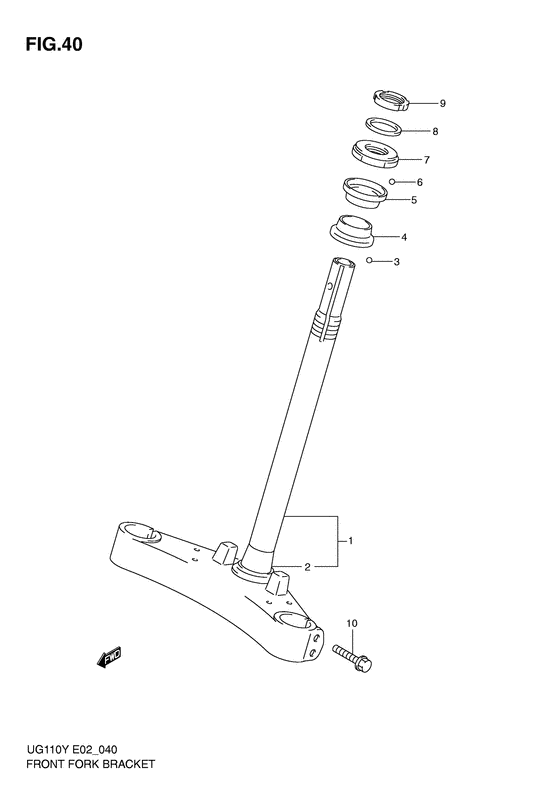

Front fork bracket Diagram Suzuki UG110 Address 110
- Year
- 2000
- Model code
- UG110Y(E2) Y
- Engine Capacity
- 110
- Model
- UG110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-16F10-000
BRACKET,FR FORK UNDER
|
51410-16F10-000 |
— | ||
|
2
|
2
51622-16B00-000 RACE,STEERING OUTER LWRRace, steering outer lower |
51622-16B00-000 |
US $7.69 |
||
|
3
|
3
06111-05004-000 BALLBall, lower; |
06111-05004-000 |
from US $0.77 |
||
|
4
|
4
51612-16B00-000 RACE,STEERING INNER LWRRace, steering inner lower |
51612-16B00-000 |
US $8.76 |
||
|
5
|
5
51611-02200-000
Race,inner uppe
|
51611-02200-000 |
— | ||
| replacement | |||||
|
5
|
5
51611-16A00-000 RACE,STEERING INNER UPR |
51611-16A00-000 |
from US $6.04 |
||
|
6
|
6
06111-05004-000 BALLBall, upper; |
06111-05004-000 |
from US $0.77 |
||
|
7
|
7
51621-02200-000
Race,outer uppe
|
51621-02200-000 |
— | ||
| replacement | |||||
|
7
|
7
51621-16A01-000 RACE,STEERING OUTER UPR |
51621-16A01-000 |
from US $6.77 |
||
|
8
|
8
09166-26001-000 WASHERWasher Washer (26x34x2.3); |
09166-26001-000 |
from US $2.82 |
||
|
9
|
9
99800-10420-000
Nut stem
|
99800-10420-000 |
— | ||
| replacement | |||||
|
9
|
9
51631-29C00-000 NUT,STEERING STEM |
51631-29C00-000 |
US $4.31 |
||
|
10
|
10
51321-27C20-000 BOLT,HANDLE HOLDER(8X35)Bolt, handle holder Bolt (8x35); |
51321-27C20-000 |
US $3.75 |
||
