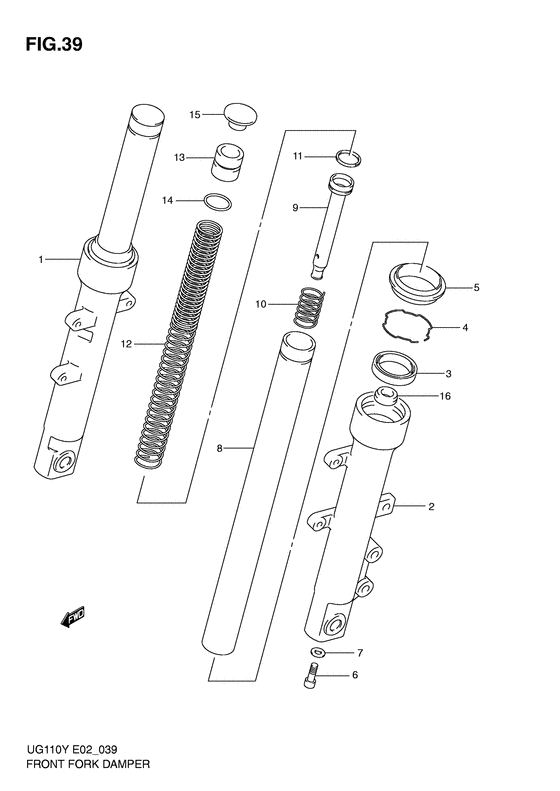

Front fork damper Diagram Suzuki UG110 Address 110
- Year
- 2000
- Model code
- UG110Y(E2) Y
- Engine Capacity
- 110
- Model
- UG110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
51103-16F00-000
DAMPER ASSY,FR FORK,R
|
51103-16F00-000 |
— | ||
|
|
51104-16F00-000 DAMPER ASSY,FR FORK,LDamper assy, front fork lh |
51104-16F00-000 |
US $382.72 |
||
|
1
|
1
51130-16F00-000
TUBE,OUTER,R
|
51130-16F00-000 |
— | ||
|
2
|
2
51140-16F00-000
TUBE,OUTER,L
|
51140-16F00-000 |
— | ||
|
3
|
3
51153-16F00-000 SEAL,OILSeal, oil; |
51153-16F00-000 |
from US $8.62 |
||
|
4
|
4
51156-39260-000 RING,SNAPSnap ring Ring, snap; |
51156-39260-000 |
US $2.58 |
||
|
5
|
5
51173-16F00-000 SEAL,DUST |
51173-16F00-000 |
US $8.64 |
||
|
6
|
6
07130-08203-000
Bolt
|
07130-08203-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0820B-000 Bolt |
07130-0820B-000 |
from US $5.59 |
||
|
7
|
7
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
8
|
8
51110-16F00-000 TUBE,INNERTube, inner |
51110-16F00-000 |
US $173.70 |
||
|
9
|
9
51146-16F00-000
CYLINDER
|
51146-16F00-000 |
— | ||
|
10
|
10
51177-36A00-000 SPRING,REBOUNDSpring, rebound |
51177-36A00-000 |
US $3.97 |
||
|
11
|
11
51196-16F00-000 RING,PISTONRing, piston |
51196-16F00-000 |
US $5.30 |
||
|
12
|
12
51171-16F00-000
SPRING,FR
|
51171-16F00-000 |
— | ||
|
13
|
13
51351-16F00-000 CAPCap |
51351-16F00-000 |
US $19.87 |
||
|
14
|
14
51117-16F00-000
0 RING
|
51117-16F00-000 |
— | ||
| replacement | |||||
|
14
|
14
51117-16F01-000 O Ring |
51117-16F01-000 |
US $3.02 |
||
|
15
|
15
51189-29400-000 CAP,FR FORK |
51189-29400-000 |
from US $10.56 |
||
|
16
|
16
51292-16F00-000
CUSHION,RUBBER
|
51292-16F00-000 |
— | ||
| replacement | |||||
|
16
|
16
51292-16F01-000 Cushion,rubber |
51292-16F01-000 |
US $3.90 |
||
