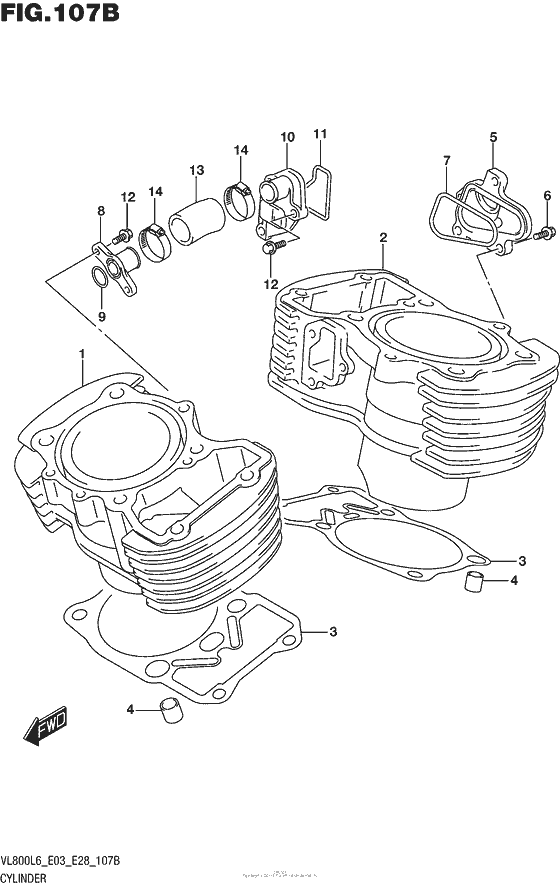

Cylinder (Vl800L6 E28) Diagram Suzuki VL800 Boulevard C50
- Year
- 2016
- Model code
- VL800L6
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VL800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-39G00-0F0 CYLINDER,FR |
11210-39G00-0F0 |
from US $471.68 |
||
|
2
|
2
11220-39G00-0F0 CYLINDER,RR |
11220-39G00-0F0 |
from US $471.68 |
||
|
3
|
3
11241-39G00-000 GASKET,CYLINDER |
11241-39G00-000 |
US $16.58 |
||
|
4
|
4
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
5
|
5
11237-41F00-000 CONNECTOR,CYLINDER INLET PIPE |
11237-41F00-000 |
from US $24 |
||
|
6
|
6
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
7
|
7
11247-38A00-000 O RING,INLET WATER CHAMBER |
11247-38A00-000 |
from US $2.13 |
||
|
8
|
8
11235-41F00-000 UNION,CYL INLET |
11235-41F00-000 |
from US $15.68 |
||
|
9
|
9
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $1.31 |
||
|
10
|
10
17892-41F00-000 UNION,CYL OUTLET |
17892-41F00-000 |
from US $19.20 |
||
|
11
|
11
17899-41F00-000 O RING,CYL OUTLET UNION |
17899-41F00-000 |
from US $3.65 |
||
|
12
|
12
01547-0616A-000 BOLT |
01547-0616A-000 |
from US $0.76 |
||
|
13
|
13
17853-38A10-000 HOSE,CYLINDER JOINT |
17853-38A10-000 |
from US $4.93 |
||
|
14
|
14
09402-28513-000 CLAMP |
09402-28513-000 |
from US $2.90 |
