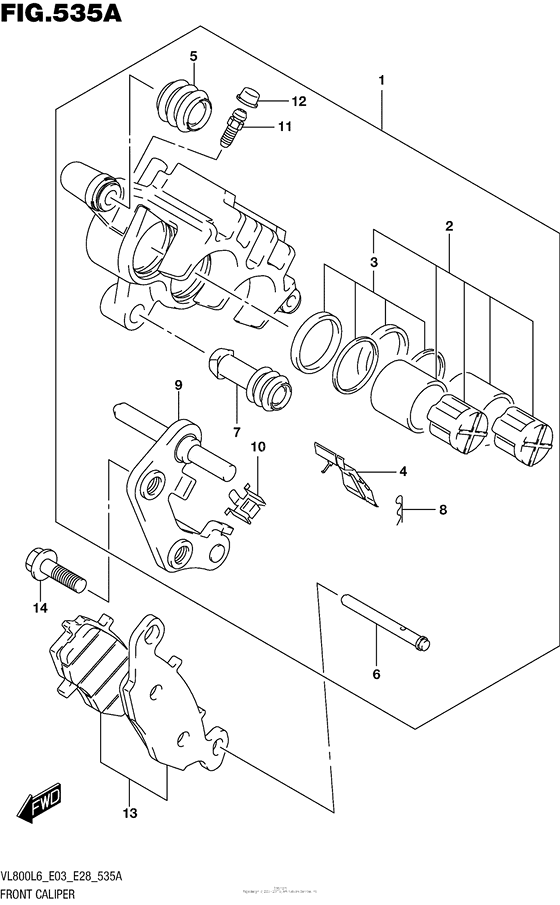

Front Caliper Diagram Suzuki VL800 Boulevard C50
- Year
- 2016
- Model code
- VL800L6
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VL800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59100-33DB1-999 CALIPER ASSY,FR,R |
59100-33DB1-999 |
from US $316.48 |
||
|
2
|
2
59301-20810-000 PISTON SET |
59301-20810-000 |
from US $60.72 |
||
|
3
|
3
59300-33841-000 SEAL SET,PISTON |
59300-33841-000 |
from US $20.84 |
||
|
4
|
4
59115-33D00-000 SPRING,PAD,RSpring rh |
59115-33D00-000 |
from US $5.47 |
||
|
5
|
5
59112-44B00-000 BOOT,AXLE |
59112-44B00-000 |
from US $5.62 |
||
|
6
|
6
59141-44B01-000 PIN,PAD |
59141-44B01-000 |
from US $5.04 |
||
|
7
|
7
59313-36500-000 INSULATOR,AXLE |
59313-36500-000 |
from US $4.10 |
||
|
8
|
8
69142-45000-000 CLIP,PAD PINClip |
69142-45000-000 |
from US $2.58 |
||
|
9
|
9
59150-33D01-000 CARRIER,CALIPER,RCarrier, caliper, r |
59150-33D01-000 |
from US $52.26 |
||
|
10
|
10
59116-33D00-000 GUIDE,PAD |
59116-33D00-000 |
from US $3.04 |
||
|
11
|
11
59121-18410-000 BLEEDER |
59121-18410-000 |
from US $7.14 |
||
|
12
|
12
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
13
|
13
59102-33820-000 Pad set |
59102-33820-000 |
from US $73.32 |
||
|
14
|
14
09103-10379-000 BOLT(10X30) |
09103-10379-000 |
from US $1.92 |
