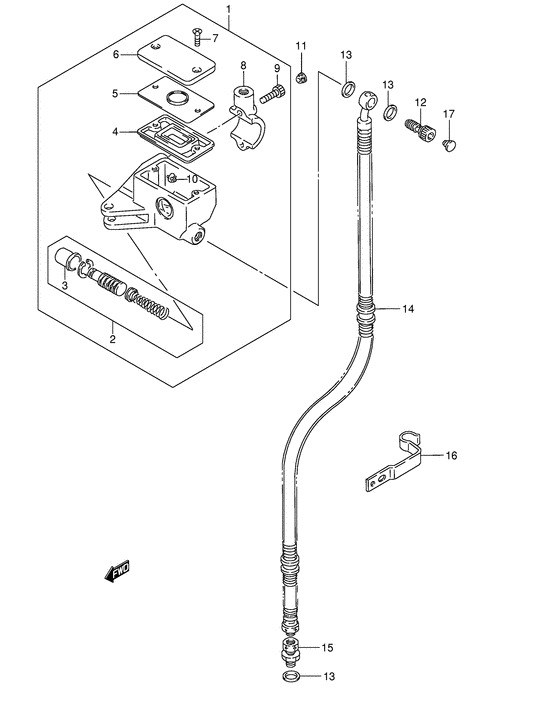

Front Master Cylinder (Model k5/k6/k7/k8) Diagram Suzuki VS1400 Intruder 1400
- Year
- 2004
- Model code
- VS1400GLPK4(E3/E28) K4
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Intruder 1400)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-38A90-000 CYLINDER ASSY,FR MASTERCylinder assy, front master (flat type) |
59600-38A90-000 |
from US $323.84 |
||
|
2
|
2
59600-04810-000 PISTON/CUP SETPiston & cup set; |
59600-04810-000 |
from US $32.68 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
5
|
5
59668-41C00-000 PLATE,DIAPHRAGMPlate, diaphragm Plate, diaphragm; |
59668-41C00-000 |
from US $5.28 |
||
|
6
|
6
59669-10F00-000 CAP |
59669-10F00-000 |
from US $37.90 |
||
|
7
|
7
02122-04127-000 SCREW |
02122-04127-000 |
from US $0.80 |
||
|
8
|
8
59671-38A00-000 HOLDER |
59671-38A00-000 |
from US $32.68 |
||
|
9
|
9
07130-06207-000 Bolt |
07130-06207-000 |
from US $0.96 |
||
|
10
|
10
59664-48B00-000 PROTECTOR |
59664-48B00-000 |
from US $5.37 |
||
|
11
|
11
09250-05008-000 CAP(OD:10) |
09250-05008-000 |
from US $1.92 |
||
|
12
|
12
09360-10027-000 UNIONBolt (10x1.00x24) Bolt (10x1.00x24); |
09360-10027-000 |
from US $12.27 |
||
|
13
|
13
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer; |
09161-10009-000 |
from US $1.06 |
||
|
14
|
14
59480-38B50-000 HOSE,FR BRAKE |
59480-38B50-000 |
US $113.71 |
||
|
15
|
15
59290-43500-000 ADAPTER,BRAKE HOSEAdaptor, brake hose Adapter, brake hose; |
59290-43500-000 |
from US $23.55 |
||
|
16
|
16
59268-38B01-000 GUIDE,BRAKE HOSEGuide, brake hose no.2 |
59268-38B01-000 |
from US $5.70 |
||
|
17
|
17
09250-08014-000 CAP(OD:12) |
09250-08014-000 |
from US $1.82 |
