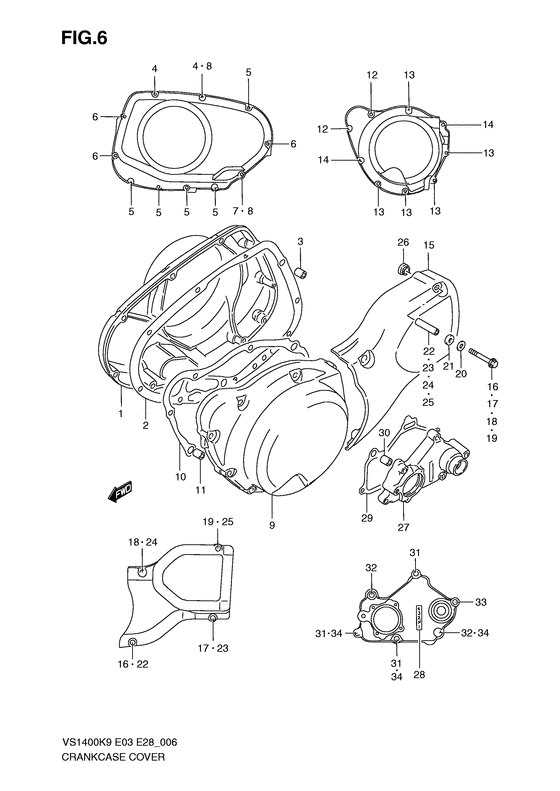

Crankcase cover Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-38B01-000 Cover,clutch |
11341-38B01-000 |
from US $345.92 |
||
|
2
|
2
11482-38B20-000 GASKET,CLUTCH COVER |
11482-38B20-000 |
from US $22.80 |
||
|
3
|
3
04211-09189-000 PINPin; |
04211-09189-000 |
from US $0.91 |
||
|
4
|
4
09103-06213-000 BOLT(6X30) |
09103-06213-000 |
from US $0.91 |
||
|
5
|
5
09103-06213-000 BOLT(6X30) |
09103-06213-000 |
from US $0.91 |
||
|
6
|
6
09103-06215-000 BOLT(6X40)Bolt (6x40) |
09103-06215-000 |
from US $1.28 |
||
|
7
|
7
09103-06216-000 BOLT(6X55) |
09103-06216-000 |
from US $1.44 |
||
|
8
|
8
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.52 |
||
|
9
|
9
11351-38B00-000 COVER,GENERATORCover, generator |
11351-38B00-000 |
from US $414.60 |
||
|
10
|
10
11483-38B10-000 GASKET,GENERATOR COVER |
11483-38B10-000 |
from US $15.47 |
||
|
11
|
11
09206-11007-000 PIN(8.4X11X20) |
09206-11007-000 |
from US $3.20 |
||
|
12
|
12
09103-06213-000 BOLT(6X30) |
09103-06213-000 |
from US $0.91 |
||
|
13
|
13
09103-06214-000 BOLT(6X35)Bolt (6x35) |
09103-06214-000 |
from US $1.08 |
||
|
14
|
14
09103-06224-000 BOLT(6X45) |
09103-06224-000 |
from US $4.11 |
||
|
15
|
15
11361-38B00-000 COVER,SECONDARY GEAR CASECover, secondary case |
11361-38B00-000 |
from US $135.79 |
||
|
16
|
16
09103-06214-000 BOLT(6X35)Bolt (6x35) |
09103-06214-000 |
from US $1.08 |
||
|
17
|
17
09103-06215-000 BOLT(6X40)Bolt (6x40) |
09103-06215-000 |
from US $1.28 |
||
|
18
|
18
09103-06261-000 BOLT(6X60)Bolt (l:60) |
09103-06261-000 |
from US $1.60 |
||
|
19
|
19
09103-06261-000 BOLT(6X60)Bolt (l:60) |
09103-06261-000 |
from US $1.60 |
||
|
20
|
20
09160-06125-000 WASHER(6.5X14X1.6)Washer (6.5x14x1.6) |
09160-06125-000 |
from US $0.76 |
||
|
21
|
21
09161-09005-000 WASHER(8.7X16X5)Cushion, inner Cushion, outer; |
09161-09005-000 |
from US $1.92 |
||
|
22
|
22
09180-06301-000 SPACER(6.5X9X21)Spacer (l:21.0) Spacer (l:18.2); |
09180-06301-000 |
from US $8.65 |
||
|
23
|
23
09180-06302-000 SPACER(6.5X9X26)Spacer (l:26.0) Spacer (l:23); |
09180-06302-000 |
from US $2.08 |
||
|
24
|
24
09180-06303-000 SPACER(6.5X9X49)Spacer (l:49.0) Spacer (l:43); |
09180-06303-000 |
from US $10.44 |
||
|
25
|
25
09180-06281-000 SPACER(6.5X9X45.9)Spacer (l:45.9); |
09180-06281-000 |
from US $9.84 |
||
|
26
|
26
09161-09005-000 WASHER(8.7X16X5)Cushion, inner Cushion, inner; |
09161-09005-000 |
from US $1.92 |
||
|
27
|
27
11371-38B20-000 COVER,GEAR SHIFT |
11371-38B20-000 |
from US $54.83 |
||
|
28
|
28
68392-38B00-000 LABEL,GEAR SHIFTLabel, gear shift pattern; |
68392-38B00-000 |
from US $1.52 |
||
|
29
|
29
11485-38B20-000 GASKET,GEAR SHIFT COVER |
11485-38B20-000 |
from US $9.12 |
||
|
30
|
30
04211-09109-000 PINKnock pin Pin; |
04211-09109-000 |
from US $0.92 |
||
|
31
|
31
09103-06212-000 BOLT(6X25) |
09103-06212-000 |
from US $0.91 |
||
|
32
|
32
09103-06214-000 BOLT(6X35)Bolt (6x35) |
09103-06214-000 |
from US $1.08 |
||
|
33
|
33
09103-06224-000 BOLT(6X45) |
09103-06224-000 |
from US $4.11 |
||
|
34
|
34
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.52 |
