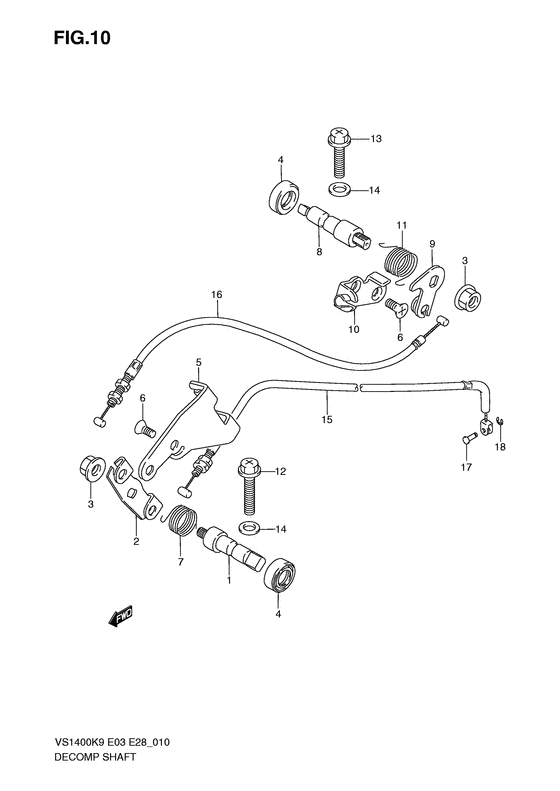

Decomp shaft Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12939-38B00-000 SHAFT,DECOMP FR |
12939-38B00-000 |
from US $27.42 |
||
|
2
|
2
12942-38B03-000
LEVER,DECOMP SHAFT FR
|
12942-38B03-000 |
— | ||
|
3
|
3
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
09282-10012-000 SEAL,OIL(10X20X6)Seal, cl rlse arm Oil seal (10x20x6); |
09282-10012-000 |
from US $4.64 |
||
|
5
|
5
12944-38B02-000 HOLDER,DECOMP CABLE FRHolder, decomp cable front |
12944-38B02-000 |
US $4.64 |
||
|
6
|
6
02122-0510B-000 SCREWScrew (green); |
02122-0510B-000 |
from US $2.15 |
||
|
7
|
7
09448-17029-000
Spring, front
Spring, front; |
09448-17029-000 |
— | ||
| replacement | |||||
|
7
|
7
09448-17029-XC0 SPRINGSpring, front; |
09448-17029-XC0 |
US $8.91 |
||
|
8
|
8
12941-38B00-000
SHAFT,DECOMP RR
|
12941-38B00-000 |
— | ||
|
9
|
9
12952-38B01-000
LEVER,DECOMP SHAFT RR
|
12952-38B01-000 |
— | ||
|
10
|
10
12950-38B00-000
HOLDER,DECOMP CABLE RR
|
12950-38B00-000 |
— | ||
|
11
|
11
09448-17023-000
SPRING
Spring, rear; |
09448-17023-000 |
— | ||
|
12
|
12
02162-0630B-000 SCREWBolt, shaft exhaust Bolt (green); |
02162-0630B-000 |
from US $1.93 |
||
|
13
|
13
02162-0625B-000 SCREWBolt (green); |
02162-0625B-000 |
from US $3.32 |
||
|
14
|
14
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.52 |
||
|
15
|
15
58900-38B20-000 CABLE ASSY,DECOMP FRCable, decomp, fr; |
58900-38B20-000 |
from US $64 |
||
|
16
|
16
58910-38B20-000 CABLE ASSY,DECOMP RR |
58910-38B20-000 |
from US $60.80 |
||
|
17
|
17
09209-04020-000 PIN(4X12.5) |
09209-04020-000 |
from US $5.37 |
||
|
18
|
18
08332-1103A-000 E RING |
08332-1103A-000 |
from US $2.94 |
||
