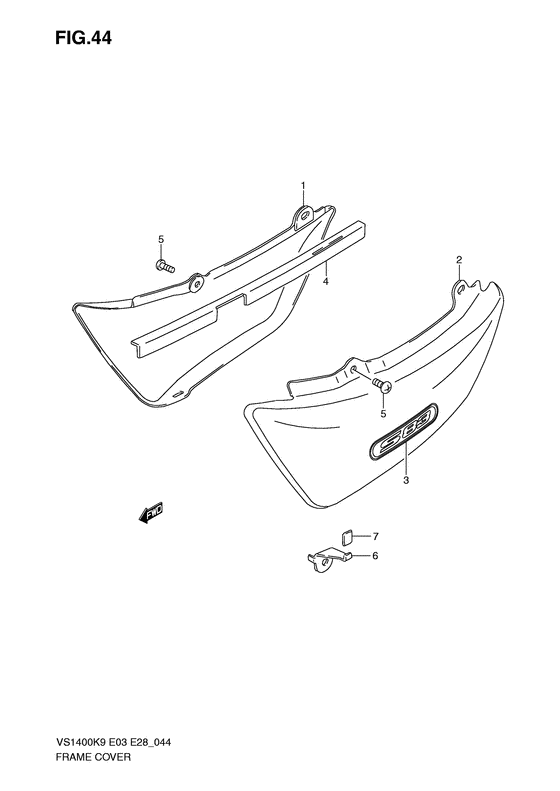

Frame cover Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47110-38B00-YAY
COVER,FRAME,R(BLACK)
Cover, frame rh (black); |
47110-38B00-YAY |
— | ||
| replacement | |||||
|
1
|
1
47110-38B00-13L COVER,FRAME,R(SILVER)Cover, frame rh (black); |
47110-38B00-13L |
from US $156.40 |
||
|
1
|
1
47110-38B00-YHG
COVER,FRAME,R(GRAY)
Cover, frame rh (gray); |
47110-38B00-YHG |
— | ||
|
2
|
2
47210-38B00-YAY
COVER,FRAME,L(BLACK)
Cover, frame lh (black); |
47210-38B00-YAY |
— | ||
| replacement | |||||
|
2
|
2
47210-38B00-13L COVER,FRAME,L(SILVER)Cover, frame lh (black); |
47210-38B00-13L |
from US $180.69 |
||
|
2
|
2
47210-38B00-YHG
COVER,FRAME,L(GRAY)
Cover, frame lh (gray); |
47210-38B00-YHG |
— | ||
|
3
|
3
68131-39BA0-000 EMBLEM,FRAME COVER |
68131-39BA0-000 |
from US $25.76 |
||
|
4
|
4
47165-38B00-000 PROTECTOR,FRAME COVER,RProtector, rh |
47165-38B00-000 |
US $10.40 |
||
|
5
|
5
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
6
|
6
47171-38B00-000 HOOK,FRAME COVER,LHook, frame cover lh |
47171-38B00-000 |
from US $6.07 |
||
|
7
|
7
47175-38B00-000 CUSHION,FRAME COVER HOOKCushion, frame cover hook Cushion, hook; |
47175-38B00-000 |
from US $4.59 |
||
