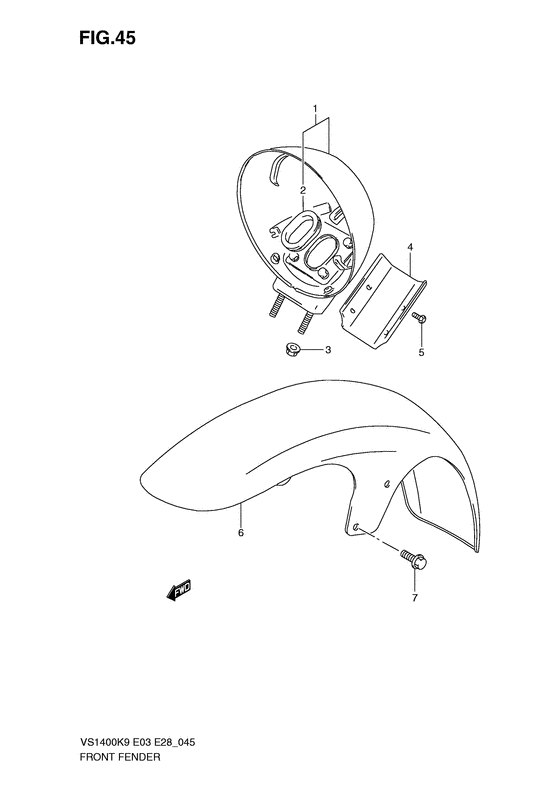

Front fender Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51810-38B00-000 Housing,headlampHousing, headlamp |
51810-38B00-000 |
from US $138.74 |
||
|
2
|
2
51819-38B00-000 GROMMET |
51819-38B00-000 |
from US $5.59 |
||
|
3
|
3
08319-3106B-000 NUT |
08319-3106B-000 |
from US $1.37 |
||
|
4
|
4
51815-38B00-000 COVER,HEADLAMP HSGCover, headlamp housing |
51815-38B00-000 |
from US $8.13 |
||
|
5
|
5
02142-04107-000 SCREWScrew |
02142-04107-000 |
from US $0.20 |
||
|
6
|
6
53110-38B11-YAY
Fender, front (black)
Fender, front (black); |
53110-38B11-YAY |
— | ||
| replacement | |||||
|
6
|
6
53110-38B11-13L FENDER,FRFender, front (black); |
53110-38B11-13L |
from US $224.37 |
||
|
6
|
6
53110-38B00-YHG
FENDER,FR
Fender, front (gray); |
53110-38B00-YHG |
— | ||
|
7
|
7
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
