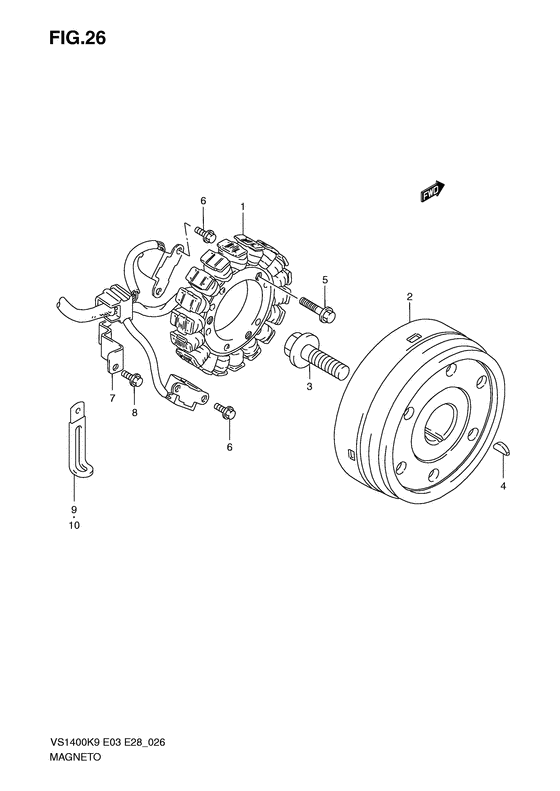

Magneto Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-38B02-000 STATOR ASSY |
32101-38B02-000 |
from US $929.50 |
||
|
2
|
2
32102-38B10-000 ROTOR ASSY |
32102-38B10-000 |
from US $707.52 |
||
|
3
|
3
09103-14001-000 BOLT(14X43)Bolt, rotor Bolt, rotor; |
09103-14001-000 |
from US $6.38 |
||
|
4
|
4
09420-05007-000 KEY |
09420-05007-000 |
from US $3.80 |
||
|
5
|
5
01547-0630B-000 BoltBolt Bolt, stator; |
01547-0630B-000 |
from US $0.96 |
||
|
6
|
6
01547-0510B-000 Bolt |
01547-0510B-000 |
from US $0.76 |
||
|
7
|
7
32371-45C00-000 CLAMP,MAGNETO LEAD WIREClamp, lead wire Clamp, lead wire; |
32371-45C00-000 |
from US $2.11 |
||
|
8
|
8
01547-0510B-000 Bolt |
01547-0510B-000 |
from US $0.76 |
||
|
9
|
9
09404-08419-000 CLAMP(L:80)Clamp (l:80); |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
9
|
9
09404-08422-000 Clamp,wiring HarnessClamp (l:80); |
09404-08422-000 |
from US $3.62 |
||
|
10
|
10
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:60); |
09404-06429-000 |
from US $1.52 |
||
