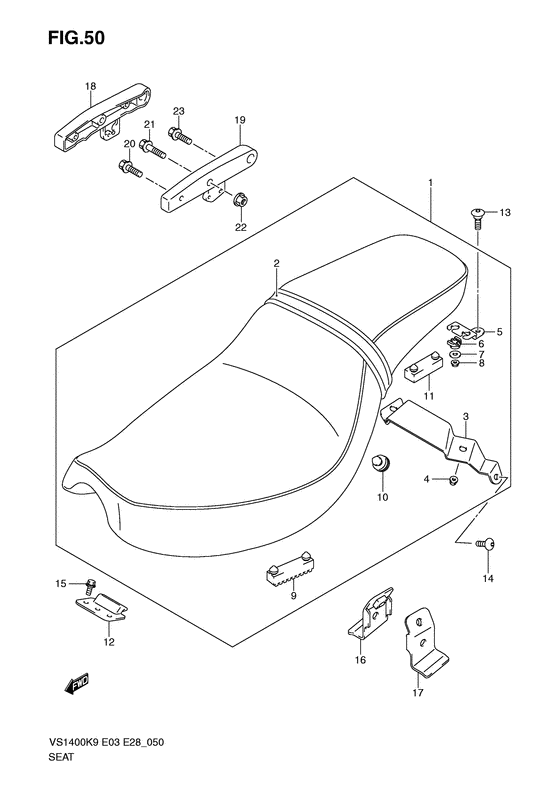

Seat Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-38BA0-HW9
SEAT ASSY
|
45100-38BA0-HW9 |
— | ||
|
2
|
2
45180-38BA0-000
BAND ASSY
|
45180-38BA0-000 |
— | ||
|
3
|
3
45115-38BA0-000
BRACKET,BAND
|
45115-38BA0-000 |
— | ||
|
4
|
4
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
5
|
5
45118-38BA0-000
BRACKET,SEAT RR
|
45118-38BA0-000 |
— | ||
|
6
|
6
45215-06B00-000
CUSHION
|
45215-06B00-000 |
— | ||
| replacements | |||||
|
6
|
6
45100-06B02-000
Cushion
|
45100-06B02-000 |
— | ||
|
6
|
6
45215-06B01-000 Cushion |
45215-06B01-000 |
from US $2.76 |
||
|
7
|
7
09160-06088-000 WASHER(6.5X20X1.6)Washer, upper |
09160-06088-000 |
from US $0.47 |
||
|
8
|
8
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
45148-31E00-000
CUSHION,SEAT
|
45148-31E00-000 |
— | ||
|
10
|
10
45148-16700-000 CUSHION,FRCushion, rear |
45148-16700-000 |
from US $1.51 |
||
| replacement | |||||
|
10
|
10
09321-10002-000 CUSHION(11.5X22X20)Cushion |
09321-10002-000 |
from US $1.52 |
||
|
11
|
11
45149-43500-000 CUSHION,SEAT |
45149-43500-000 |
from US $4.80 |
||
|
12
|
12
45210-38B00-000 BRACKET,SEAT FRBracket, seat front |
45210-38B00-000 |
from US $12.77 |
||
|
13
|
13
09139-06121-000 SCREW(6X16)Screw Bolt, rear; |
09139-06121-000 |
from US $2.13 |
||
|
14
|
14
09106-06117-000 BOLT(6X12)Screw, seat center |
09106-06117-000 |
from US $3.68 |
||
|
15
|
15
01580-06167-000 BoltBolt, bracket; |
01580-06167-000 |
from US $4.54 |
||
|
16
|
16
45116-38BA0-000 BRACKET,SEAT CTR,R |
45116-38BA0-000 |
from US $11.22 |
||
|
17
|
17
45117-38BA0-000 BRACKET,SEAT CTR,L |
45117-38BA0-000 |
from US $13.47 |
||
|
18
|
18
46212-38B22-000
HANDLE,PILLION RIDER,R
Handle, pillion rider, r; |
46212-38B22-000 |
— | ||
|
19
|
19
46213-38B22-000
HANDLE,PILLION RIDER,L
Handle, pillion rider, l; |
46213-38B22-000 |
— | ||
|
20
|
20
01580-0640B-000 Bolt |
01580-0640B-000 |
from US $5.07 |
||
|
21
|
21
01580-0845B-000 BoltBolt, center |
01580-0845B-000 |
from US $6.38 |
||
|
22
|
22
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
23
|
23
01580-0620B-000 Bolt |
01580-0620B-000 |
from US $4.49 |
||
