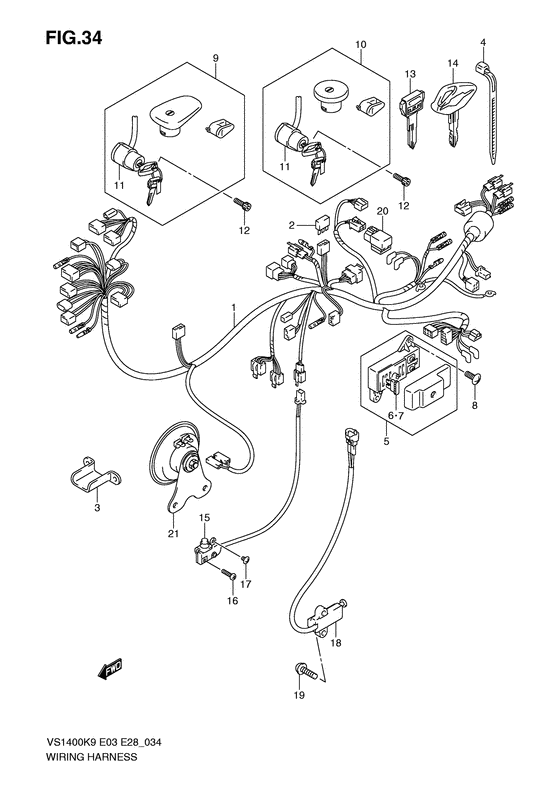

Wiring harness Diagram Suzuki VS1400 Boulevard S83
- Year
- 2009
- Model code
- VS1400K9(E3/E28) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 1400
- Model
- VS1400 (Boulevard S83)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-38BL0-000
HARNESS,WIRING
|
36610-38BL0-000 |
— | ||
|
2
|
2
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
2
|
2
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $8.98 |
||
|
3
|
3
36619-38B00-000 GUIDE,WIRING HARNESSGuide, wiring harness |
36619-38B00-000 |
US $4.31 |
||
|
4
|
4
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
4
|
4
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $1.08 |
||
|
4
|
4
09407-14407-000 CLAMP(L:145)Band Clamp (l:145); |
09407-14407-000 |
from US $2.08 |
||
|
4
|
4
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $0.77 |
||
|
5
|
5
36740-19C00-000 BOX ASSY,FUSEFuse box assy |
36740-19C00-000 |
from US $59.62 |
||
|
6
|
6
09481-25103-000 FUSE(25A)Fuse (25a); |
09481-25103-000 |
from US $0.77 |
||
|
7
|
7
09481-10101-000 FUSE(10A)Fuse (10a); |
09481-10101-000 |
from US $0.79 |
||
|
8
|
8
02142-0616B-000 SCREWScrew, hinge Screw; |
02142-0616B-000 |
from US $2.82 |
||
|
9
|
9
37100-38860-000
LOCK SET
|
37100-38860-000 |
— | ||
|
10
|
10
37100-38870-000
LOCK SET
E33 |
37100-38870-000 |
— | ||
|
11
|
11
37110-38B10-000
SWITCH ASSY,IGNITION
|
37110-38B10-000 |
— | ||
|
12
|
12
07130-0516B-000 Bolt |
07130-0516B-000 |
from US $3.35 |
||
|
13
|
13
37146-03A00-000 KEY,BLANK(TYPE:C)Key, blank type c; Opt |
37146-03A00-000 |
from US $13.20 |
||
|
13
|
13
37146-03A10-000 KEY,BLANK(TYPE:D)Key, blank type d; Opt |
37146-03A10-000 |
from US $8.36 |
||
|
13
|
13
37146-03A20-000 KEY,BLANK(TYPE:E)Key, blank type e; Opt |
37146-03A20-000 |
from US $13.20 |
||
|
13
|
13
37146-03A30-000 KEY,BLANK(TYPE:F)Key, blank type f; Opt |
37146-03A30-000 |
from US $9.68 |
||
|
14
|
14
37146-38B00-000 KEY,BLANK(TYPE:C)Key, blank "boulevard"; Opt,type c |
37146-38B00-000 |
from US $60.33 |
||
|
14
|
14
37146-38B10-000 KEY,BLANK(TYPE:D)Key, blank "boulevard"; Opt,type d |
37146-38B10-000 |
from US $46.37 |
||
|
14
|
14
37146-38B20-000 KEY,BLANK(TYPE:E)Key, blank "boulevard"; Opt,type e |
37146-38B20-000 |
from US $46.37 |
||
|
14
|
14
37146-38B30-000 KEY,BLANK(TYPE:F)Key, blank "boulevard"; Opt,type f |
37146-38B30-000 |
from US $46.37 |
||
|
15
|
15
37740-38B00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp |
37740-38B00-000 |
from US $105.45 |
||
|
16
|
16
02112-0416B-000 SCREW |
02112-0416B-000 |
US $9.60 |
||
|
17
|
17
02142-0406B-000 SCREWScrew, front turn |
02142-0406B-000 |
US $9.60 |
||
|
18
|
18
37840-39A30-000
Switch Assy,Side Stand
|
37840-39A30-000 |
— | ||
|
19
|
19
02112-7620B-000 SCREW |
02112-7620B-000 |
from US $4.39 |
||
|
20
|
20
38740-38B00-000 RELAY ASSYRelay assy, fan motor Relay assy, side stand; |
38740-38B00-000 |
from US $32.94 |
||
|
21
|
21
38500-38B20-000
HORN ASSY
|
38500-38B20-000 |
— | ||
