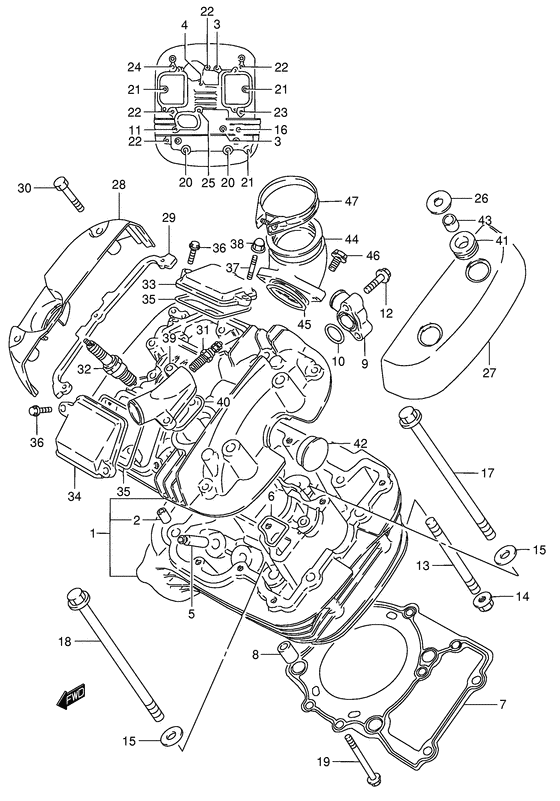

Cylinder head (Front) Diagram Suzuki VS800 Intruder 800
- Year
- 2001
- Model code
- VS800GLK1(E3/E28) K1
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-39A20-000
HEAD ASSY,CYLINDER FR
Model k1/k2/k3/k4 |
11101-39A20-000 |
— | ||
|
1
|
1
11101-39A50-000
HEAD ASSY,CYLINDER FR
Model k5 |
11101-39A50-000 |
— | ||
|
2
|
2
09206-11004-000 PIN(8.4X11X14)Pin, gear case no.2 |
09206-11004-000 |
from US $5.17 |
||
|
3
|
3
09103-06101-000 BOLT(6X50)Bolt (6x50); |
09103-06101-000 |
from US $1.60 |
||
|
4
|
4
09103-06102-000 BOLT(6X55)Bolt (6x55); |
09103-06102-000 |
from US $1.52 |
||
|
5
|
5
11115-38A71-000
Guide, valve (os 0.3)
Guide, valve (os:0.3); Opt |
11115-38A71-000 |
— | ||
| replacement | |||||
|
5
|
5
11115-41F70-000 GUIDE,VALVE(OS:0.3)Guide, valve (os:0.3); Opt |
11115-41F70-000 |
from US $18.48 |
||
|
6
|
6
11123-38A00-000 GASKET,CYLINDER HEAD WATERGasket, head cover Gasket, cylinder head cover; |
11123-38A00-000 |
from US $2.11 |
||
|
7
|
7
11141-45C00-000 GASKET,CYLINDER HEAD FRGasket, cylinder head front Gasket, cylinder head front; |
11141-45C00-000 |
from US $52.80 |
||
|
8
|
8
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
9
|
9
11169-45C10-000 UNION,CYLINDER HEAD WATERUnion, cylinder head water |
11169-45C10-000 |
from US $35.26 |
||
|
10
|
10
09280-18004-000 O RING(D:2.4,ID:17.8)O ring, front hook O ring (d:2.4,id:17.8); |
09280-18004-000 |
from US $2.56 |
||
|
11
|
11
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0625B-000 BOLT |
01547-0625B-000 |
from US $0.91 |
||
|
13
|
13
09108-08144-000 BOLT,STUDStud bolt l:40 Stud bolt (l:40); |
09108-08144-000 |
from US $2.56 |
||
|
14
|
14
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
09160-10039-000 WASHER(10.5X22X2.3)Washer; |
09160-10039-000 |
from US $1.06 |
||
|
16
|
16
09103-08040-000 BOLT(8X140)Bolt, (l:140) Bolt (8x140); |
09103-08040-000 |
from US $2.88 |
||
|
17
|
17
09103-10133-000 BOLT(10X155)Bolt (10x155); |
09103-10133-000 |
from US $6.38 |
||
|
18
|
18
09103-10134-000 BOLT(10X165)Bolt (10x165); |
09103-10134-000 |
from US $7.45 |
||
|
19
|
19
01550-06403-000
Bolt (green)
Bolt; |
01550-06403-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0640B-000 BoltBolt; |
01550-0640B-000 |
from US $0.96 |
||
|
19
|
19
01550-0640A-000 BoltBolt (l:40) Bolt; |
01550-0640A-000 |
from US $3.83 |
||
|
20
|
20
09103-08180-000 BOLT(8X245)Bolt (8x245) Bolt (8x245); |
09103-08180-000 |
from US $12.27 |
||
|
21
|
21
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
21
|
21
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
22
|
22
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
23
|
23
07120-06303-000
Bolt (green)
|
07120-06303-000 |
— | ||
| replacement | |||||
|
23
|
23
07120-0630B-000 Bolt |
07120-0630B-000 |
from US $0.91 |
||
|
24
|
24
01550-06403-000
Bolt (green)
Bolt; |
01550-06403-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0640B-000 BoltBolt; |
01550-0640B-000 |
from US $0.96 |
||
|
24
|
24
01550-0640A-000 BoltBolt (l:40) Bolt; |
01550-0640A-000 |
from US $3.83 |
||
|
25
|
25
09103-06102-000 BOLT(6X55)Bolt (6x55); |
09103-06102-000 |
from US $1.52 |
||
|
26
|
26
09160-08130-000 WASHER(8.5X24X1.6)Washer (8.5x24x1.6); |
09160-08130-000 |
from US $0.91 |
||
|
27
|
27
11171-38A02-000 CAP,CYLINDER HEAD COVER FR,LCap, head cover lh |
11171-38A02-000 |
from US $56.67 |
||
|
28
|
28
11172-38A03-000 CAP,CYLINDER HEAD COVER FR,RCap, head cover rh |
11172-38A03-000 |
US $68.08 |
||
|
29
|
29
11272-38A00-000 CUSHION,FR,R CAPCushion, head cover cap Cushion, head cover cap; |
11272-38A00-000 |
from US $6.92 |
||
|
30
|
30
01244-06407-000 BoltBolt (l:40) |
01244-06407-000 |
from US $11.76 |
||
|
31
|
31
34850-21E00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature Sending unit, water temp; |
34850-21E00-000 |
from US $54.83 |
||
|
32
|
32
09482-00334-000 PLUG,SPARK(DPR8EA-9)Spark plug (ngk,dpr8ea-9) Spark plug (ngk,dpr8ea-9); |
09482-00334-000 |
from US $4.86 |
||
|
32
|
32
09482-00335-000 PLUG,SPARK(X24EPR-U9)Spark plug (nd,x24epr-u9) Spark plug (nd,x24epr-u9); |
09482-00335-000 |
from US $7.92 |
||
|
32
|
32
09482-00354-000 SPARK PLUG (NGK DPR7EA-9)Spark plug (ngk,dpr7ea-9); Opt |
09482-00354-000 |
from US $5.30 |
||
|
32
|
32
09482-00355-000
Spark plug (denso,x22epr-u9)
Spark plug (nd,x22epr-u9); Opt |
09482-00355-000 |
— | ||
| replacement | |||||
|
32
|
32
09482-00354-000 SPARK PLUG (NGK DPR7EA-9)Spark plug (nd,x22epr-u9); Opt |
09482-00354-000 |
from US $5.30 |
||
|
32
|
32
09482-00330-000 PLUG,SPARK(DPR9EA-9)Spark plug (ngk,dpr9ea-9) Spark plug (ngk,dpr9ea-9); Opt |
09482-00330-000 |
from US $4.98 |
||
|
32
|
32
09482-00331-000 PLUG,SPARK(X27EPR-U9)Spark plug (denso,x27epr-u9) Spark plug (nd,x27epr-u9); Opt |
09482-00331-000 |
from US $5.63 |
||
|
33
|
33
11175-38A11-000 CAP,INSPECTION INTAKE |
11175-38A11-000 |
from US $10.82 |
||
|
34
|
34
11176-38A11-000 CAP,INSPECTION EXHAUST |
11176-38A11-000 |
from US $10.82 |
||
|
35
|
35
11177-38A00-000 GASKET,INSPECTION CAPGasket, inspection cap; |
11177-38A00-000 |
from US $2.58 |
||
|
36
|
36
01547-06203-000
Bolt (6x20)
|
01547-06203-000 |
— | ||
| replacement | |||||
|
36
|
36
01547-0620B-000 BOLT |
01547-0620B-000 |
from US $0.76 |
||
|
37
|
37
09108-06102-000 BOLT,STUDBolt, stud Stud bolt; |
09108-06102-000 |
from US $1.98 |
||
|
38
|
38
08313-20063-000
Nut
|
08313-20063-000 |
— | ||
| replacements | |||||
|
38
|
38
08313-2006B-000 NUT |
08313-2006B-000 |
from US $0.76 |
||
|
38
|
38
08313-2006A-000 NUT |
08313-2006A-000 |
from US $1.04 |
||
|
39
|
39
11181-38A02-000
UNION,WATER OUTLET
|
11181-38A02-000 |
— | ||
|
40
|
40
11182-38A00-000 GASKET,WATER OUTLET UNIONGasket, water union; |
11182-38A00-000 |
from US $1.52 |
||
|
41
|
41
09320-13015-000 CUSHION |
09320-13015-000 |
from US $1.92 |
||
|
42
|
42
09241-30004-000 PLUG(OD:30)Plug, head Plug, cylinder head; |
09241-30004-000 |
from US $4.56 |
||
|
43
|
43
09301-08007-000 BUSH |
09301-08007-000 |
from US $1.82 |
||
|
44
|
44
13101-38E00-000
PIPE ASSY,INTAKE FR
Pipe, intake front; |
13101-38E00-000 |
— | ||
| replacement | |||||
|
44
|
44
13101-38E01-000 Pipe Assy,intake FrPipe, intake front; |
13101-38E01-000 |
US $97.97 |
||
|
45
|
45
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); |
09280-40010-000 |
— | ||
| replacement | |||||
|
45
|
45
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); |
09280-40020-000 |
from US $4.59 |
||
|
46
|
46
02122-06203-000
Screw
|
02122-06203-000 |
— | ||
| replacements | |||||
|
46
|
46
02122-0620B-000 SCREW |
02122-0620B-000 |
from US $3.04 |
||
|
46
|
46
02122-0620A-000 SCREW |
02122-0620A-000 |
from US $0.77 |
||
|
47
|
47
09402-52501-000 CLAMPClamp, intake pipe Clamp, intake pipe; |
09402-52501-000 |
from US $14.69 |
||
