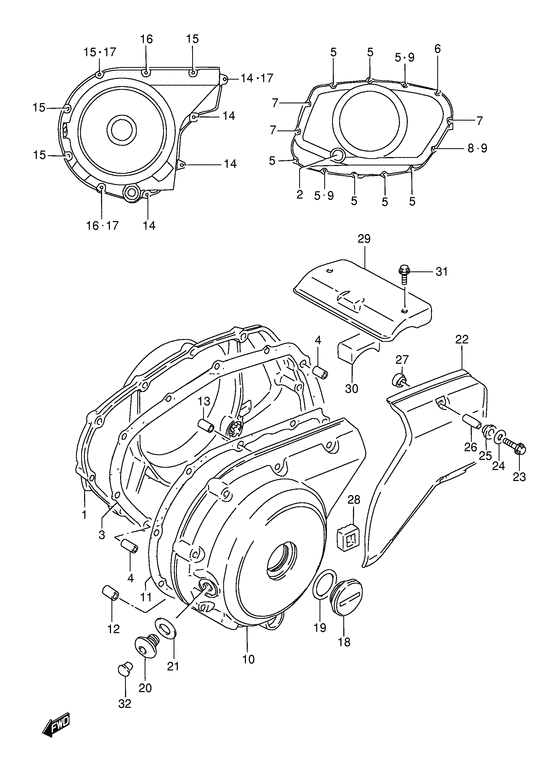

Crankcase cover Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-38A00-000 Cover,clutchCover, clutch |
11340-38A00-000 |
from US $283.36 |
||
|
2
|
2
11971-33210-000 LENS,OIL LEVEL CHECKLens, oil check Lens, oil level; |
11971-33210-000 |
from US $11.97 |
||
|
3
|
3
11482-41F00-000 GASKET,CLUTCH COVER |
11482-41F00-000 |
from US $12.35 |
||
|
4
|
4
04211-09189-000 PINPin; |
04211-09189-000 |
from US $0.91 |
||
|
5
|
5
01547-06307-000 Bolt |
01547-06307-000 |
from US $0.96 |
||
|
6
|
6
01547-06357-000 Bolt |
01547-06357-000 |
from US $0.84 |
||
|
7
|
7
01547-06457-000 Bolt |
01547-06457-000 |
from US $0.91 |
||
|
8
|
8
01547-06607-000 Bolt |
01547-06607-000 |
from US $4.34 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
11351-45C20-000 COVER,GENERATORCover, generator |
11351-45C20-000 |
from US $281.52 |
||
|
11
|
11
11483-41F00-000 GASKET,GENERATOR COVER |
11483-41F00-000 |
from US $8.97 |
||
|
12
|
12
09206-11017-000 PIN(8.4X11X20)Pin (8.4x11x20) |
09206-11017-000 |
from US $2.40 |
||
|
13
|
13
04211-09189-000 PINPin; |
04211-09189-000 |
from US $0.91 |
||
|
14
|
14
01547-06307-000 Bolt |
01547-06307-000 |
from US $0.96 |
||
|
15
|
15
01547-06407-000 Bolt |
01547-06407-000 |
from US $1.13 |
||
|
16
|
16
01547-06507-000 BOLTBolt, cyl head cover no.2 |
01547-06507-000 |
from US $0.91 |
||
|
17
|
17
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.51 |
||
|
18
|
18
09259-36008-000 PLUG(36X10)Plug, access; |
09259-36008-000 |
from US $11.42 |
||
|
19
|
19
09280-33004-000 O RING(D:3.1,ID:32.7)O ring (d:3.1,id:32.7); |
09280-33004-000 |
from US $1.67 |
||
|
20
|
20
09248-14005-000
PLUG(14X12)
Plug, t.d.c; |
09248-14005-000 |
— | ||
| replacement | |||||
|
20
|
20
09248-14011-000 PLUGPlug, t.d.c; |
09248-14011-000 |
from US $2.13 |
||
|
21
|
21
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x0.4); |
09168-14002-000 |
— | ||
| replacement | |||||
|
21
|
21
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x0.4); |
09168-14004-000 |
from US $1.22 |
||
|
22
|
22
11361-38A50-000 COVER,SECONDARY GEAR CASECover, secondary drive |
11361-38A50-000 |
US $115.92 |
||
|
23
|
23
01547-06457-000 Bolt |
01547-06457-000 |
from US $0.91 |
||
|
24
|
24
09160-06125-000 WASHER(6.5X14X1.6)Washer (6.5x14x1.6) |
09160-06125-000 |
from US $0.76 |
||
|
25
|
25
09161-09006-000 WASHER(8.7X15X2.1)Cushion, outer Cushion, outer; |
09161-09006-000 |
from US $1.92 |
||
|
26
|
26
09180-06278-000 SPACER(6.5X9X33.3) |
09180-06278-000 |
from US $2.24 |
||
|
27
|
27
09161-09005-000 WASHER(8.7X16X5)Cushion, inner Cushion, inner; |
09161-09005-000 |
from US $1.92 |
||
|
28
|
28
11369-38A00-000 DAMPER,SECONDARY COVERDamper, rear Damper, secondary cover; |
11369-38A00-000 |
US $6.88 |
||
| replacement | |||||
|
28
|
28
11369-38A01-000 Damper,secondary CoverDamper, secondary cover; |
11369-38A01-000 |
US $25.52 |
||
|
29
|
29
31210-38A01-000 COVER,STARTER MOTORCover, starter motor |
31210-38A01-000 |
from US $15.24 |
||
|
30
|
30
31212-38A10-000 DAMPER,MOTOR COVER |
31212-38A10-000 |
from US $3.09 |
||
|
31
|
31
01547-05087-000 Bolt |
01547-05087-000 |
from US $2.35 |
||
|
32
|
32
09250-08014-000 CAP(OD:12) |
09250-08014-000 |
from US $1.82 |
||
