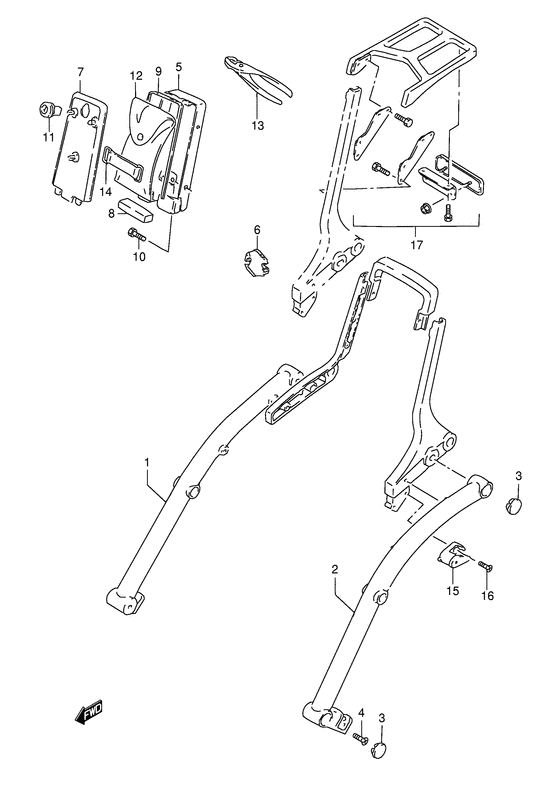

Frame handle grip Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41610-38A20-000 GRIP,FRAME HANDLE RHGrip, frame handle rh |
41610-38A20-000 |
from US $263.12 |
||
|
2
|
2
41620-38A20-000 GRIP,FRAME HANDLE LHGrip, frame handle lh |
41620-38A20-000 |
from US $263.12 |
||
|
3
|
3
95672-24A00-000 CAP,FRAME HANDLE GRIPCap,frame handle gri |
95672-24A00-000 |
from US $2.58 |
||
|
4
|
4
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
5
|
5
47430-38B02-22S
Holder, tool rear (black)
Holder, tool rear (black); Model k1 |
47430-38B02-22S |
— | ||
| replacement | |||||
|
5
|
5
47430-38B11-22S
HOLDER,TOOL RR
Holder, tool rear (black); Model k1 |
47430-38B11-22S |
— | ||
|
5
|
5
47430-38B11-22S
HOLDER,TOOL RR
Holder, tool rear (black); Model k2/k3 |
47430-38B11-22S |
— | ||
|
6
|
6
68261-38A30-000 EMBLEM,TOOL HOLDER RR |
68261-38A30-000 |
from US $23.18 |
||
|
7
|
7
47441-38B00-000 HOLDER,TOOL FRHolder, tool front |
47441-38B00-000 |
from US $28.02 |
||
|
8
|
8
47438-38B00-000 CUSHION,TOOL BACKCushion, tool back Cushion, tool holder; |
47438-38B00-000 |
from US $6.83 |
||
|
9
|
9
47437-38B00-000 MOLDING,TOOL HOLDER RRMolding, rear tool Molding, tool holder; |
47437-38B00-000 |
from US $4.97 |
||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
95700-24831-000 LOCK SET,TOOL HOLDERLock set, tool holder |
95700-24831-000 |
from US $47.10 |
||
|
12
|
12
09800-21013-000 TOOL ASSY |
09800-21013-000 |
US $105 |
||
|
13
|
13
09812-00009-000
PLIER(150)
Plier, 150; |
09812-00009-000 |
— | ||
|
14
|
14
09462-00008-000 BANDBand, battery Band, tool; |
09462-00008-000 |
from US $4.80 |
||
|
15
|
15
95700-38821-000 LOCK SET,HELMETLock set, helmet Lock set, helmet; |
95700-38821-000 |
from US $32.94 |
||
|
16
|
16
02112-05127-000 SCREWScrew, vacuum sw valve |
02112-05127-000 |
from US $0.76 |
||
|
17
|
17
46300-38822-000
CARRIER SET,SPORT
Carrier set, sport; Opt |
46300-38822-000 |
— | ||
