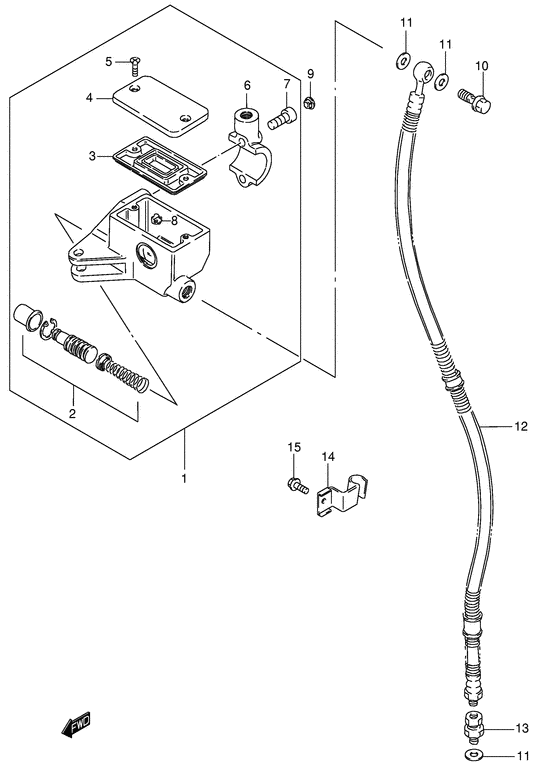

Front Master Cylinder Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-24B50-000 CYLINDER ASSY,FR MASTERCylinder assy, front master (pull back type) |
59600-24B50-000 |
from US $338.56 |
||
|
2
|
2
59600-04810-000 PISTON/CUP SETPiston & cup set; |
59600-04810-000 |
from US $32.68 |
||
|
3
|
3
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
4
|
4
59669-24B00-000 CAPCap |
59669-24B00-000 |
from US $40.11 |
||
|
5
|
5
02122-04127-000 SCREW |
02122-04127-000 |
from US $0.80 |
||
|
6
|
6
59671-38A00-000 HOLDER |
59671-38A00-000 |
from US $32.68 |
||
|
7
|
7
07130-06207-000 Bolt |
07130-06207-000 |
from US $0.96 |
||
|
8
|
8
59664-48B00-000 PROTECTOR |
59664-48B00-000 |
from US $5.37 |
||
|
9
|
9
09250-05008-000 CAP(OD:10) |
09250-05008-000 |
from US $1.92 |
||
|
10
|
10
09360-10039-000
Bolt
Bolt (10x1.00x22); |
09360-10039-000 |
— | ||
| replacement | |||||
|
10
|
10
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Bolt (10x1.00x22); |
09360-10061-000 |
from US $6.24 |
||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer; |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
59480-38A63-000 HOSE,FR BRAKEHose, front brake (pull back type) |
59480-38A63-000 |
from US $150.14 |
||
|
13
|
13
59290-43500-000 ADAPTER,BRAKE HOSEAdaptor, brake hose Adapter, brake hose; |
59290-43500-000 |
from US $23.55 |
||
|
14
|
14
59268-38A30-000 GUIDE,BRAKE HOSEGuide, brake hose |
59268-38A30-000 |
from US $10.05 |
||
|
15
|
15
01547-06107-000 BOLT |
01547-06107-000 |
from US $1.60 |
||
