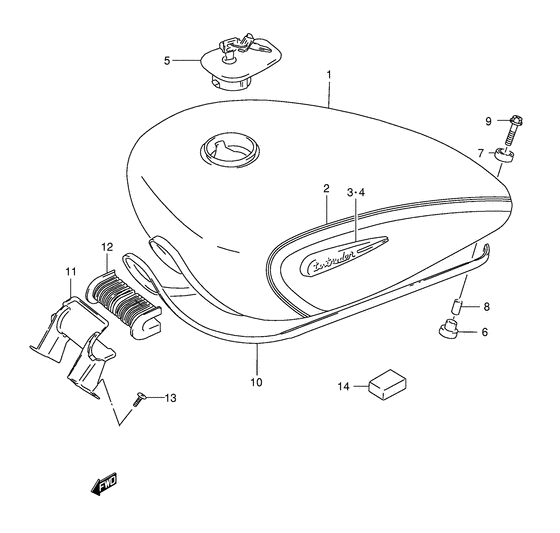

Fuel tank (Model k2) Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-38EF0-YSX
TANK ASSY,FUEL(BLACK)
Tank assy, fuel (black); |
44100-38EF0-YSX |
— | ||
|
1
|
1
44100-38EF0-19A
TANK ASSY,FUEL(RED)
Tank assy, fuel (red); |
44100-38EF0-19A |
— | ||
|
2
|
2
68110-38E40-HF1
TAPE SET,FUEL TANK
For ysx |
68110-38E40-HF1 |
— | ||
|
2
|
2
68110-38E40-HF2
TAPE SET,FUEL TANK
For 19a |
68110-38E40-HF2 |
— | ||
|
3
|
3
68111-38E00-000 EMBLEM,FUEL TANK,REmblem, rh |
68111-38E00-000 |
from US $37.17 |
||
|
4
|
4
68121-38E00-000 EMBLEM,FUEL TANK,LEmblem, lh |
68121-38E00-000 |
US $46.73 |
||
|
5
|
5
44200-38820-000 CAP SET,FUEL TANKCap, filler |
44200-38820-000 |
from US $88.32 |
||
|
6
|
6
09320-10020-000
CUSHION
Cushion, rear; |
09320-10020-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-10071-000 Cushion(9X24X18)Cushion, rear; |
09320-10071-000 |
from US $1.98 |
||
|
7
|
7
09320-14013-000 CUSHIONCushion, rear upper Cushion, rear; |
09320-14013-000 |
from US $2.08 |
||
|
8
|
8
09180-06273-000 SPACER(6.5X9X21.5)Spacer |
09180-06273-000 |
from US $4.88 |
||
|
9
|
9
09136-06095-000 SCREW(6X35) |
09136-06095-000 |
from US $5.07 |
||
|
10
|
10
68241-04X50-00B MOLDING |
68241-04X50-00B |
from US $15.96 |
||
|
11
|
11
44250-38A01-019 BRACKET,FUEL TANK FRBracket, front (black) Bracket, front (black); |
44250-38A01-019 |
from US $59.81 |
||
|
12
|
12
44511-38A01-000 CUSHION,FUEL TANK FRCushion, front |
44511-38A01-000 |
from US $7.43 |
||
|
13
|
13
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
14
|
14
44512-38B00-000
Cushion, side
|
44512-38B00-000 |
— | ||
| replacement | |||||
|
14
|
14
56314-48B10-000 CUSHION |
56314-48B10-000 |
from US $1.98 |
||
