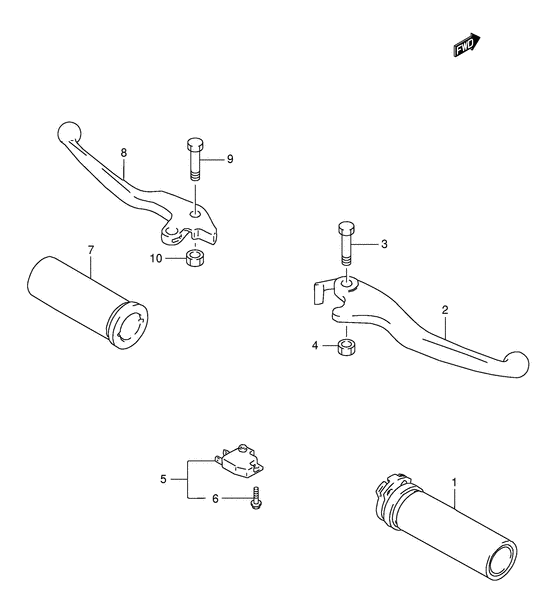

Handle lever Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-26D00-000
GRIP,THROTTLE
|
57110-26D00-000 |
— | ||
| replacement | |||||
|
1
|
1
57110-26D01-000 Grip,throttle |
57110-26D01-000 |
US $75.68 |
||
|
2
|
2
57420-24B01-000 LEVER,BRAKELever, brake |
57420-24B01-000 |
from US $35.14 |
||
|
3
|
3
57431-38A10-000 BOLT,LEVER SETBolt |
57431-38A10-000 |
from US $9.42 |
||
|
4
|
4
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
5
|
5
57460-17C00-000
Switch assy, stop
Switch assy, stop; |
57460-17C00-000 |
— | ||
| replacements | |||||
|
5
|
5
57460-14J01-000
SWITCH ASSY,FR BRAKE
Switch assy, stop; |
57460-14J01-000 |
— | ||
|
5
|
5
57460-14J02-000 Switch Assy,stopSwitch assy, stop; |
57460-14J02-000 |
US $51.90 |
||
|
6
|
6
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
7
|
7
57210-26D00-000
GRIP, LH
|
57210-26D00-000 |
— | ||
| replacement | |||||
|
7
|
7
57210-26D01-000 Grip, Lh |
57210-26D01-000 |
from US $18.24 |
||
|
8
|
8
57621-38A02-000 LEVER,CLUTCHLever, clutch |
57621-38A02-000 |
from US $28.48 |
||
|
9
|
9
57431-38A10-000 BOLT,LEVER SETBolt |
57431-38A10-000 |
from US $9.42 |
||
|
10
|
10
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
