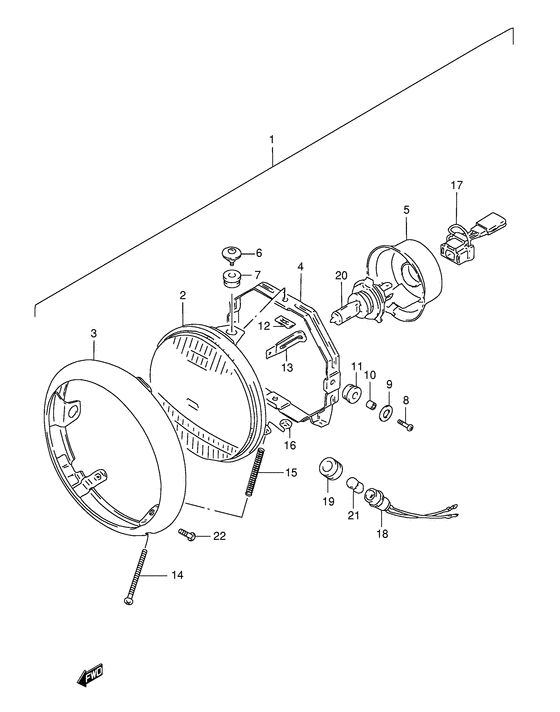

Headlamp Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-38A51-999 HEADLAMP ASSY |
35100-38A51-999 |
US $213.44 |
||
|
2
|
2
35121-38A41-000 UnitUnit, lamp; |
35121-38A41-000 |
US $124.38 |
||
|
3
|
3
35111-38A00-000 RIMRim |
35111-38A00-000 |
from US $46.36 |
||
|
4
|
4
35130-38A00-000 RING,MOUNTING |
35130-38A00-000 |
from US $33.44 |
||
|
5
|
5
35173-38A00-000 COVER,SOCKETSocket cover |
35173-38A00-000 |
from US $8.76 |
||
|
6
|
6
35136-38A00-000 SCREW,MOUNTINGScrew, mounting |
35136-38A00-000 |
from US $1.95 |
||
|
7
|
7
35139-45230-000 CUSHION |
35139-45230-000 |
from US $0.96 |
||
|
8
|
8
02112-05163-000
Screw
Screw; |
02112-05163-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-0516B-000 SCREWScrew; |
02112-0516B-000 |
from US $0.80 |
||
|
8
|
8
02112-0516A-000 SCREWScrew; |
02112-0516A-000 |
from US $0.80 |
||
|
9
|
9
09160-05045-000 WASHER(5.5X18X1)Washer, vacuum sw valve Washer (5.5x18x1.0); |
09160-05045-000 |
from US $0.86 |
||
|
10
|
10
35133-45230-000 SPACER |
35133-45230-000 |
from US $1.62 |
||
|
11
|
11
35139-45230-000 CUSHION |
35139-45230-000 |
from US $0.96 |
||
|
12
|
12
35155-48510-000 NUTNut (m5) |
35155-48510-000 |
from US $1.21 |
||
|
13
|
13
09404-06432-000
CLAMP(L:65)
Clamp (l:80); |
09404-06432-000 |
— | ||
| replacement | |||||
|
13
|
13
09404-06039-000 Clamp(L:65)Clamp (l:80); |
09404-06039-000 |
from US $1.82 |
||
|
14
|
14
35151-38A00-000 SCREW,ADJUSTING(4X50)Screw, adjust (4x50) |
35151-38A00-000 |
from US $2.11 |
||
|
15
|
15
35154-31300-000 SPRINGSpring, headlamp adjust |
35154-31300-000 |
from US $1.60 |
||
|
16
|
16
35135-45600-000 NUTNut Nut; |
35135-45600-000 |
from US $1.95 |
||
|
17
|
17
36853-38A00-000 SOCKET |
36853-38A00-000 |
from US $6.66 |
||
|
18
|
18
36118-49320-000 SOCKET |
36118-49320-000 |
US $8.13 |
||
|
19
|
19
36116-22630-000 JOINT,RUBBERGrommet |
36116-22630-000 |
US $3.97 |
||
|
20
|
20
09471-12060-000 BULB(12V60/55W,H4)Bulb (12v,60/55w,h4) Bulb (12v,60/55w); |
09471-12060-000 |
from US $39.19 |
||
|
21
|
21
09471-12063-000 BULB(12V4W)Bulb (12v,4w); |
09471-12063-000 |
US $5.33 |
||
|
22
|
22
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
