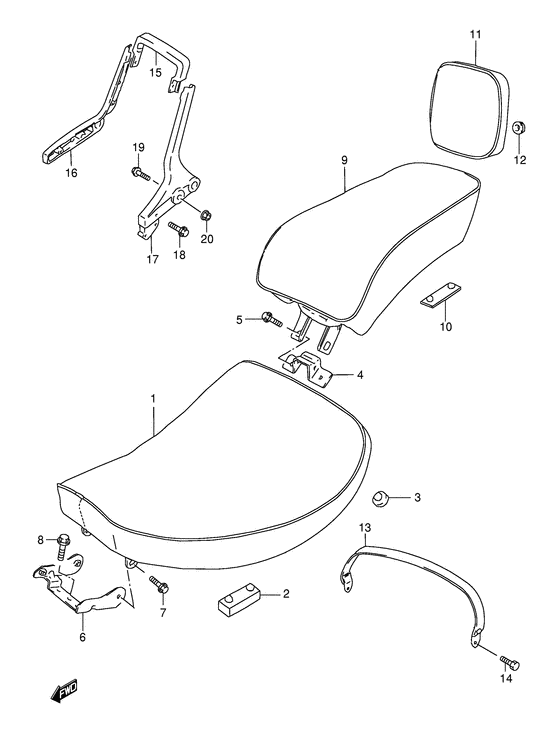

Seat Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-38A60-E7T
SEAT ASSY
Seat set; |
45100-38A60-E7T |
— | ||
|
2
|
2
45149-43500-000 CUSHION,SEAT |
45149-43500-000 |
from US $4.80 |
||
|
3
|
3
09321-10012-000 CUSHION |
09321-10012-000 |
from US $1.67 |
||
|
4
|
4
45119-38A00-000 PLATE,FR SEAT HOOK & RRPlate, seat hook & rear |
45119-38A00-000 |
from US $7.62 |
||
|
5
|
5
09113-06001-000 BOLT(6X16)Bolt, outer Bolt (6x16); |
09113-06001-000 |
from US $1.22 |
||
|
6
|
6
45210-38A03-000 BRACKET,SEAT FRBracket, seat front |
45210-38A03-000 |
from US $8.68 |
||
|
7
|
7
09113-06001-000 BOLT(6X16)Bolt, outer Bolt (6x16); |
09113-06001-000 |
from US $1.22 |
||
|
8
|
8
01550-06163-000
Bolt
Bolt (6x16); |
01550-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 BOLTBolt (6x16); |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 BOLTBolt (6x16); |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
45300-38A60-E7T SEAT ASSY,PILLIONSeat set, pillion Seat set, pillion; |
45300-38A60-E7T |
from US $206.08 |
||
|
10
|
10
45149-14500-000 CUSHION |
45149-14500-000 |
from US $7.65 |
||
|
11
|
11
45350-38A60-E7T PAD ASSY,SEAT |
45350-38A60-E7T |
from US $186.56 |
||
|
12
|
12
09320-09026-000
Cushion box front
|
09320-09026-000 |
— | ||
| replacements | |||||
|
12
|
12
09320-09045-000
CUSHION
|
09320-09045-000 |
— | ||
|
12
|
12
09320-09062-000
New Genuine Part
|
09320-09062-000 |
— | ||
|
13
|
13
45180-38A60-R48
Band, seat grip (black)
Band, seat grip (black); |
45180-38A60-R48 |
— | ||
|
14
|
14
01580-06167-000 BOLT |
01580-06167-000 |
from US $4.54 |
||
|
15
|
15
46211-38B01-000 HANDLE,PILLION RIDER UPRHandle, pillion rider upper |
46211-38B01-000 |
US $95.69 |
||
|
16
|
16
46212-38A21-000
Handle, pillion rider rh
|
46212-38A21-000 |
— | ||
| replacement | |||||
|
16
|
16
46212-38A50-000 HANDLE,PILLION RIDER,R |
46212-38A50-000 |
from US $156.77 |
||
|
17
|
17
46213-38A21-000 HANDLE,PILLION RIDER,LHabdle, pillion rider lh Handle, pillion rider lh; |
46213-38A21-000 |
from US $156.77 |
||
|
18
|
18
01580-06353-000
Bolt, front (6x35)
Bolt, front (6x35); |
01580-06353-000 |
— | ||
| replacement | |||||
|
18
|
18
01580-0635B-000 BOLTBolt, front (6x35); |
01580-0635B-000 |
from US $5.46 |
||
|
19
|
19
01580-08453-000
Bolt, rear (8x45)
Bolt, rear (8x45); |
01580-08453-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-0845B-000 BOLTBolt, center Bolt, rear (8x45); |
01580-0845B-000 |
from US $6.38 |
||
|
20
|
20
08316-10083-000
Nut
Nut, rear; |
08316-10083-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1008B-000 NUTNut, rear; |
08316-1008B-000 |
from US $0.76 |
||
