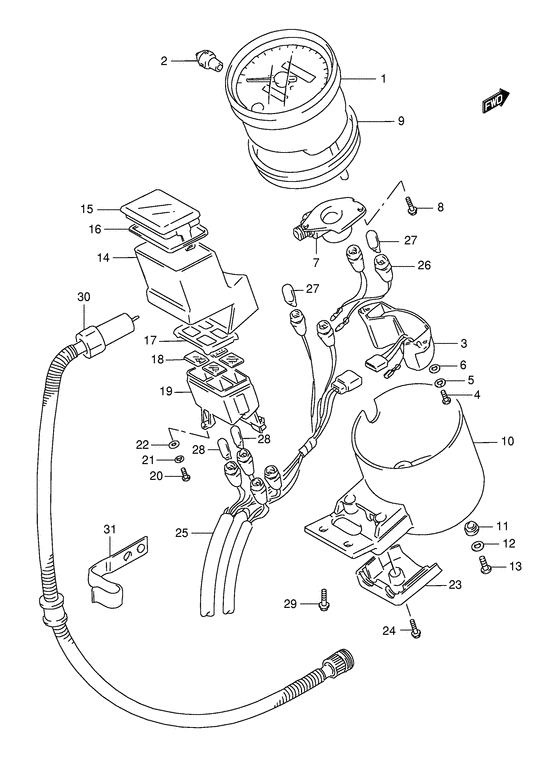

Speedometer Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34110-39AN0-000 SpeedometerSpeedometer (kilo); |
34110-39AN0-000 |
US $401.28 |
||
|
2
|
2
34124-39A10-000 KNOB,TRIPKnob, trip |
34124-39A10-000 |
from US $12.64 |
||
|
3
|
3
34490-39A10-000 UNIT,WATER TEMPUnit, water temp warning |
34490-39A10-000 |
from US $166.70 |
||
|
4
|
4
02112-03083-000
Screw
|
02112-03083-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $2.84 |
||
|
5
|
5
08321-21033-000
Washer lock
|
08321-21033-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
6
|
6
08322-01033-000
Washer
Washer; |
08322-01033-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-0103B-000 WASHERWasher; |
08322-0103B-000 |
from US $3.86 |
||
|
7
|
7
34131-19B00-000 BOX,GEARBox, meter gear |
34131-19B00-000 |
from US $93.84 |
||
|
8
|
8
02112-34103-000
Screw
Screw; |
02112-34103-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3410A-000 SCREWScrew; |
02112-3410A-000 |
from US $2.99 |
||
|
9
|
9
34288-39A00-000 CUSHIONCushion, meter |
34288-39A00-000 |
from US $12.77 |
||
|
10
|
10
34193-39A20-000 COVER,METER |
34193-39A20-000 |
from US $198.40 |
||
|
11
|
11
34189-05A30-000
CUSHION,METER
|
34189-05A30-000 |
— | ||
| replacement | |||||
|
11
|
11
34189-05A31-000 Cushion |
34189-05A31-000 |
from US $3.42 |
||
|
12
|
12
34181-38A00-000 WASHER |
34181-38A00-000 |
from US $2.17 |
||
|
13
|
13
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
14
|
14
36381-39A20-000 BOX,PILOTBox, pilot lamp |
36381-39A20-000 |
from US $67.71 |
||
|
15
|
15
36393-39AJ0-000 LENS,PILOT BOX |
36393-39AJ0-000 |
from US $10.05 |
||
|
16
|
16
36395-38A00-000 CUSHION |
36395-38A00-000 |
from US $4.60 |
||
|
17
|
17
36386-38A00-000 PLATE,PILOT LENSPlate, pilot lens |
36386-38A00-000 |
from US $4.12 |
||
|
18
|
18
36300-38850-000 LENS SET,PILOT LAMPLens set, pilot lamp |
36300-38850-000 |
from US $11.19 |
||
|
19
|
19
36382-38B30-000 CASE,PILOT LAMPCase, pilot lamp |
36382-38B30-000 |
from US $13.58 |
||
|
20
|
20
02112-03083-000
Screw
|
02112-03083-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $2.84 |
||
|
21
|
21
08321-21033-000
Washer lock
|
08321-21033-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
22
|
22
08322-01033-000
Washer
Washer; |
08322-01033-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0103B-000 WASHERWasher; |
08322-0103B-000 |
from US $3.86 |
||
|
23
|
23
34152-39A21-000 COVER,PILOT BOXCover, pilot box |
34152-39A21-000 |
from US $47.10 |
||
|
24
|
24
02112-74083-000
Screw
|
02112-74083-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-7408B-000 SCREW |
02112-7408B-000 |
from US $0.91 |
||
|
25
|
25
34173-39AC0-000
SOCKET,METER NO.1
|
34173-39AC0-000 |
— | ||
|
26
|
26
34174-39AJ0-000
SOCKET
|
34174-39AJ0-000 |
— | ||
|
27
|
27
09471-12103-000 BULB(12V3W,T6.5)Bulb (12v,3w); |
09471-12103-000 |
from US $4.84 |
||
|
28
|
28
09471-12108-000 BULB(12V1.7W,T6.5)Bulb (t6.5,1.7w) Bulb (12v,1.7w); |
09471-12108-000 |
from US $2.13 |
||
|
29
|
29
02162-06163-000
Screw
Screw; |
02162-06163-000 |
— | ||
| replacement | |||||
|
29
|
29
02162-0616B-000 SCREWBolt, adjust Screw; |
02162-0616B-000 |
from US $0.80 |
||
|
30
|
30
34910-39A10-000
SABLE ASSY,SPEEDOMETER
|
34910-39A10-000 |
— | ||
| replacement | |||||
|
30
|
30
34910-39A11-000 Cable Assy, Speedometer |
34910-39A11-000 |
from US $98.99 |
||
|
31
|
31
34938-38A02-000 GUIDE,SPEEDOMETER CABLEGuide, meter cable |
34938-38A02-000 |
from US $10.88 |
||
