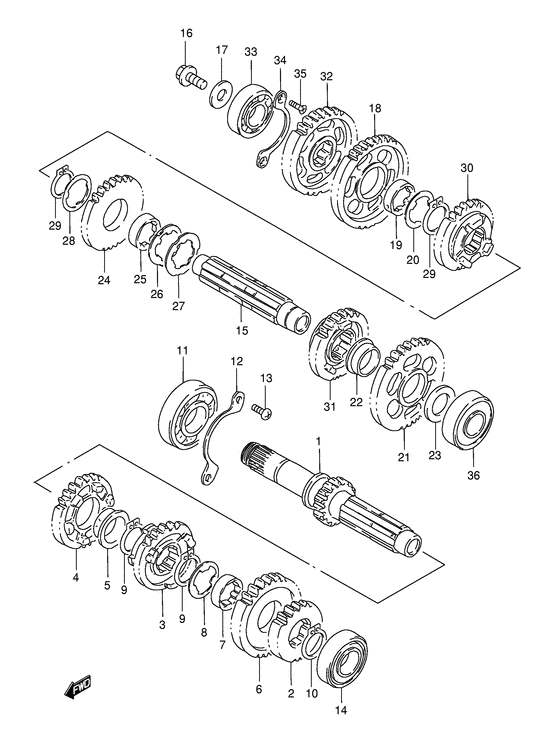

Transmission Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-38820-000
COUNTERSHAFT(NT:14)
Countershaft (nt:14); |
24100-38820-000 |
— | ||
|
2
|
2
24221-38A01-000 GEAR,2ND DRIVE(NT:19)Gear, 2nd drive (nt:19); |
24221-38A01-000 |
from US $75.81 |
||
|
3
|
3
24231-38A02-000
GEAR,3RD DRIVE(NT:22)
Gear, 3rd drive (nt:22); |
24231-38A02-000 |
— | ||
|
4
|
4
24241-38A00-000
Gear,4th drive
Gear, 4th drive (nt:25); |
24241-38A00-000 |
— | ||
|
5
|
5
09301-25001-000
Bush driven gea
|
09301-25001-000 |
— | ||
| replacement | |||||
|
5
|
5
24322-19F00-000 BUSHBush, 2nd driven |
24322-19F00-000 |
from US $11.22 |
||
|
6
|
6
24251-38A01-000
GEAR,5TH DRIVE
Gear, 5th drive (nt:27); |
24251-38A01-000 |
— | ||
|
7
|
7
24252-38A10-000 BUSH,6TH DRIVE GEARBush, 5th drive gear |
24252-38A10-000 |
from US $9.57 |
||
|
8
|
8
09167-25016-000 WASHER,LOCKLock washer Washer (25.5x35x1.0); |
09167-25016-000 |
from US $2.13 |
||
|
9
|
9
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
10
|
10
09380-25010-000 CIRCLIPCirclip |
09380-25010-000 |
from US $1.98 |
||
|
11
|
11
09262-25080-000 BEARING(25X62X17)Bearing, rh (25x62x17); |
09262-25080-000 |
from US $19.20 |
||
|
12
|
12
24741-38A00-000 RETAINER,CNTR SHAFT BEARING |
24741-38A00-000 |
from US $3.46 |
||
|
13
|
13
09125-06086-000 SCREW(6X12)Screw, retainer (6x12) Screw (6x12); |
09125-06086-000 |
from US $1.76 |
||
|
14
|
14
09262-20081-000
B1 20x47x14 bea
Bearing, lh (20x47x14); |
09262-20081-000 |
— | ||
| replacement | |||||
|
14
|
14
09262-20139-000 BEARING(20X47X14)Bearing, sub t/m counter, r Bearing, lh (20x47x14); |
09262-20139-000 |
from US $19.20 |
||
|
15
|
15
24131-38A03-000 SHAFT,DRIVEDriveshaft; |
24131-38A03-000 |
US $93.84 |
||
|
16
|
16
24135-38A02-000 NOZZLE,DRIVE SHAFT |
24135-38A02-000 |
from US $3.17 |
||
|
17
|
17
08211-10305-000 WASHERWasher, oil pump drive gear |
08211-10305-000 |
from US $5.78 |
||
|
18
|
18
24311-38A20-000 GEAR,1ST DRIVEN(NT:32)Gear, 1st driven (nt:32) Gear, 1st driven (nt:32); |
24311-38A20-000 |
from US $93.10 |
||
|
19
|
19
24332-07A00-000 BUSHBush |
24332-07A00-000 |
from US $8.46 |
||
|
20
|
20
09167-28001-000 WASHER,LOCKWasher, 3rd driven gr,rh Washer, lh (28.1x38x1.0); |
09167-28001-000 |
from US $6.26 |
||
|
21
|
21
24321-38A00-000
GEAR,2ND DRIVEN(NT:31)
Gear, 2nd driven (nt:31); |
24321-38A00-000 |
— | ||
|
22
|
22
09301-22002-000 BUSHBush |
09301-22002-000 |
US $6.72 |
||
|
23
|
23
09181-20251-000 SHIM(20X34X1)Shim (t:1.0) Washer (20x34x1.0); |
09181-20251-000 |
from US $1.62 |
||
|
24
|
24
24331-38A02-000 GEAR,3RD DRIVEN(NT:27)Gear, 3rd driven (nt:27) Gear, 3rd driven (nt:27); |
24331-38A02-000 |
from US $75.81 |
||
|
25
|
25
24332-07A00-000 BUSHBush |
24332-07A00-000 |
from US $8.46 |
||
|
26
|
26
09169-28001-000 WASHERWasher, 3rd driven gr,lh Lock washer, rh; |
09169-28001-000 |
from US $5.24 |
||
|
27
|
27
09167-28002-000 WASHER,LOCKWasher, 3rd driven gr,lh Lock washer, lh; |
09167-28002-000 |
from US $6.49 |
||
|
28
|
28
09167-28001-000 WASHER,LOCKWasher, 3rd driven gr,rh Washer; |
09167-28001-000 |
from US $6.26 |
||
|
29
|
29
08331-31286-000
Circlip, 3rd driven
|
08331-31286-000 |
— | ||
| replacement | |||||
|
29
|
29
08331-31289-000 CIRCLIP |
08331-31289-000 |
from US $1.37 |
||
|
30
|
30
24341-38A02-000 GEAR,4TH DRIVEN(NT:25)Gear, 4th driven (nt:25); |
24341-38A02-000 |
from US $93.84 |
||
|
31
|
31
24351-38A03-000 GEAR,5TH DRIVENGear, 5th driven (nt:23) Gear, 5th driven (nt:23); |
24351-38A03-000 |
from US $71.02 |
||
|
32
|
32
24621-38A00-000 GEAR,REDUCTION DRIVE(NT:30)Gear, reduction drive (nt:30); |
24621-38A00-000 |
from US $66.61 |
||
|
33
|
33
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) Bearing, rh (20x52x15); |
09262-20073-000 |
from US $12.31 |
||
|
34
|
34
24751-38A00-000 RETAINER,DRIVE SHAFT BEARING |
24751-38A00-000 |
US $3.46 |
||
|
35
|
35
09126-06011-000 SCREW(6X12)Screw, retainer mdl Screw (6x12); |
09126-06011-000 |
from US $0.76 |
||
|
36
|
36
09262-20080-000 BEARING(20X52X15)Bearing, drive shaft,lh Bearing, lh (20x52x15); |
09262-20080-000 |
from US $19.20 |
||
