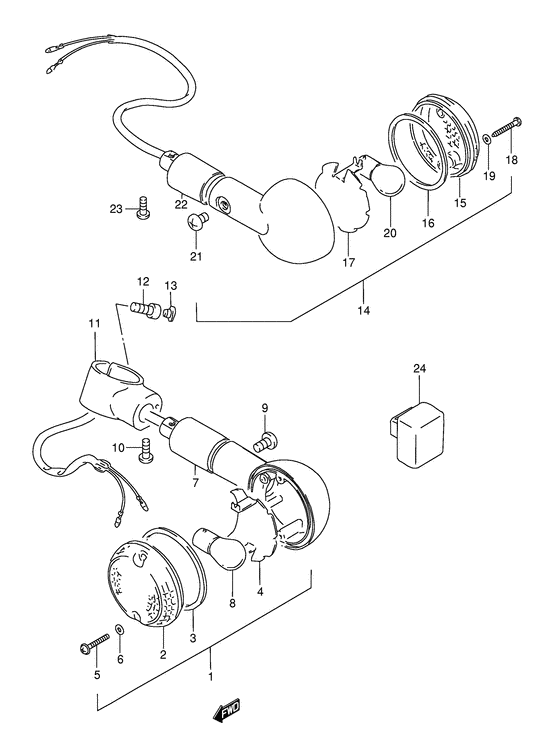

Turn signal lamp Diagram Suzuki VS800 Intruder 800
- Year
- 2002
- Model code
- VS800GLK2(E22) K2
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-38A22-000 LAMP ASSY,FR TURN SIGNAL |
35601-38A22-000 |
US $89.79 |
||
|
2
|
2
35612-38A01-000 LENSLens; |
35612-38A01-000 |
from US $8.76 |
||
|
3
|
3
35613-38A00-000 GASKETGasket; |
35613-38A00-000 |
from US $2.24 |
||
|
4
|
4
35624-38A20-000 REFLECTOR |
35624-38A20-000 |
from US $12.51 |
||
|
5
|
5
03211-04253-000
Screw
|
03211-04253-000 |
— | ||
| replacement | |||||
|
5
|
5
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
6
|
6
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
7
|
7
35619-38A01-000 STAY,TURNSIGNAL LAMPStay, turnsignal lamp; |
35619-38A01-000 |
from US $27.42 |
||
|
8
|
8
09471-12045-000 BULB(12V21W)Bulb (12v,21w); |
09471-12045-000 |
from US $2.54 |
||
|
9
|
9
35623-38A01-000 SCREWScrew; |
35623-38A01-000 |
from US $2.99 |
||
|
10
|
10
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
11
|
11
35671-39A00-000 BRACKET,FR TURNSIGNAL LAMP,RBracket, rh |
35671-39A00-000 |
US $41.58 |
||
|
11
|
11
35681-39A00-000 BRACKET,FR TURNSIGNAL LAMP,LBracket, lh |
35681-39A00-000 |
from US $41.58 |
||
|
12
|
12
07130-06167-000 BoltBolt, cam position sensor |
07130-06167-000 |
from US $5.07 |
||
|
13
|
13
09250-05008-000 CAP(OD:10) |
09250-05008-000 |
from US $1.92 |
||
|
14
|
14
35603-38A22-000 LAMP ASSY,RR TURNSIGNAL,R |
35603-38A22-000 |
US $89.79 |
||
|
15
|
15
35652-38A21-000 LENS |
35652-38A21-000 |
from US $7.36 |
||
|
16
|
16
35613-38A00-000 GASKETGasket; |
35613-38A00-000 |
from US $2.24 |
||
|
17
|
17
35654-38A20-000 REFLECTORReflector; |
35654-38A20-000 |
US $12.51 |
||
|
18
|
18
03211-04253-000
Screw
|
03211-04253-000 |
— | ||
| replacement | |||||
|
18
|
18
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
19
|
19
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
20
|
20
09471-12045-000 BULB(12V21W)Bulb (12v,21w); |
09471-12045-000 |
from US $2.54 |
||
|
21
|
21
35623-38A01-000 SCREWScrew; |
35623-38A01-000 |
from US $2.99 |
||
|
22
|
22
35619-38A01-000 STAY,TURNSIGNAL LAMPStay, turnsignal lamp; |
35619-38A01-000 |
from US $27.42 |
||
|
23
|
23
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
24
|
24
38610-26E00-000
RELAY ASSY
Relay, turn signal; |
38610-26E00-000 |
— | ||
| replacement | |||||
|
24
|
24
38610-26E01-000 Relay AssyRelay, turn signal; |
38610-26E01-000 |
from US $36.80 |
||
