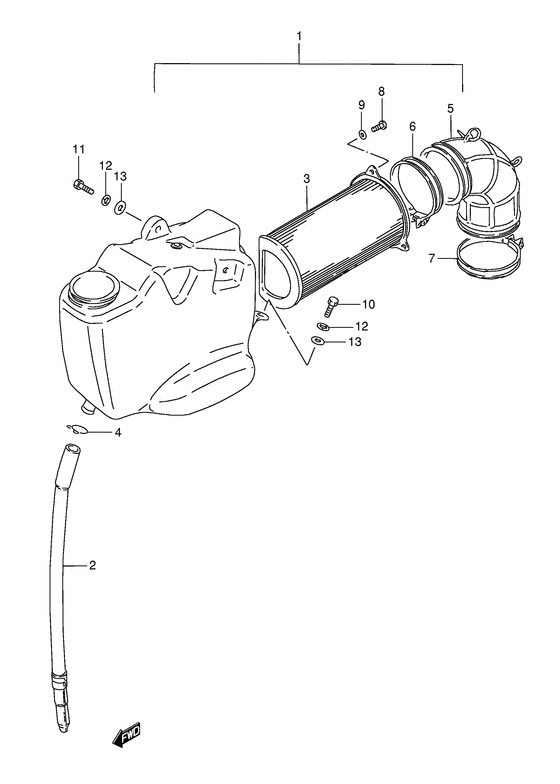

Air cleaner (Front) Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-38A11-000
CLEANER ASSY,AIR FR
|
13700-38A11-000 |
— | ||
|
2
|
2
13870-11458-000
TUBE,DRAIN
Tube, drain; |
13870-11458-000 |
— | ||
| replacement | |||||
|
2
|
2
13870-11459-000 Tube,drainTube, drain; |
13870-11459-000 |
from US $11.84 |
||
|
3
|
3
13780-38A01-000 FILTER ASSYFilter assy |
13780-38A01-000 |
from US $29.60 |
||
|
4
|
4
09401-13409-000 CLIPClamp Clip; |
09401-13409-000 |
from US $2.25 |
||
|
5
|
5
13881-38A00-000
TUBE,AIR CLEANER OUTLET
|
13881-38A00-000 |
— | ||
| replacement | |||||
|
5
|
5
13881-38A01-000 Tube,air Cleaner Outlet |
13881-38A01-000 |
from US $25.52 |
||
|
6
|
6
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
6
|
6
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
|
7
|
7
09402-58208-000 CLAMP |
09402-58208-000 |
from US $2.29 |
||
|
8
|
8
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
|
9
|
9
08321-01043-000
Lock washer
Lock washer; |
08321-01043-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0104A-000 WASHER,LOCKLock washer; |
08321-0104A-000 |
from US $0.80 |
||
|
10
|
10
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
11
|
11
01580-06203-000
Bolt
|
01580-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0620B-000 BOLT |
01580-0620B-000 |
from US $4.49 |
||
