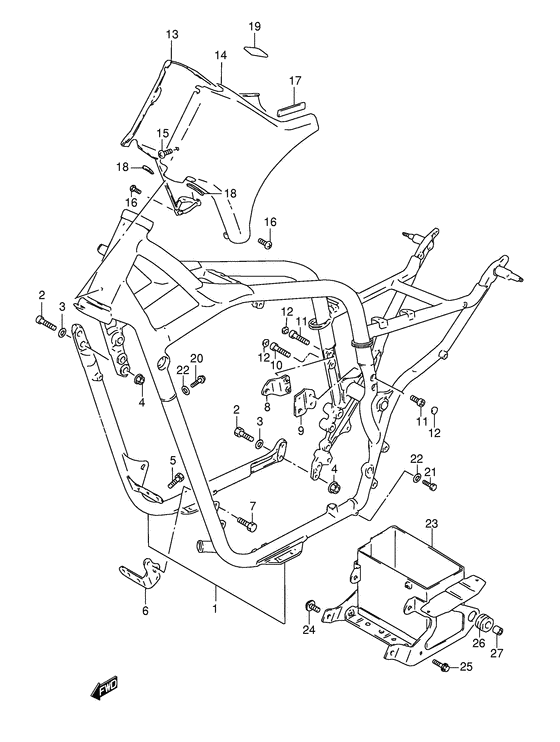

Frame Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41101-39813-33J
FRAME SET(BLACK)
Frame set (black); |
41101-39813-33J |
— | ||
|
1
|
1
41101-39813-YC6
FRAME SET(RED)
Frame set (red); Model k1 |
41101-39813-YC6 |
— | ||
|
1
|
1
41101-39813-19A
FRAME SET(RED)
Frame set (red); Model k2 |
41101-39813-19A |
— | ||
|
1
|
1
41101-39813-YD8
FRAME SET(SILVER)
Frame set (silver); Model k3 |
41101-39813-YD8 |
— | ||
|
2
|
2
09106-10019-000 BOLT(10X33)Bolt, rear; |
09106-10019-000 |
from US $1.92 |
||
|
3
|
3
09164-10010-000 WASHERWasher; |
09164-10010-000 |
from US $6.58 |
||
|
4
|
4
08319-31103-000
Nut
|
08319-31103-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
5
|
5
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
5
|
5
01551-0820A-000 BOLT |
01551-0820A-000 |
from US $0.96 |
||
|
6
|
6
41920-38A00-019
PLATE,ENGINE MOUNT NO.1,L
Plate, no.1 lh (black); |
41920-38A00-019 |
— | ||
|
7
|
7
07130-08163-000
Bolt
|
07130-08163-000 |
— | ||
| replacement | |||||
|
7
|
7
07130-0816A-000 BOLT |
07130-0816A-000 |
from US $1.06 |
||
|
8
|
8
41950-38A11-019 PLATE,ENGINE MOUNT NO.3,RPlate, no.3 rh (black) Plate, no.3 rh (black); |
41950-38A11-019 |
US $25.94 |
||
|
9
|
9
41960-38A10-019 PLATE,ENGINE MOUNT NO.3,LPlate, no.3 lh (black) Plate, no.3 lh (black); |
41960-38A10-019 |
US $21.16 |
||
|
10
|
10
07130-08303-000
Bolt, lower
Bolt, lower; |
07130-08303-000 |
— | ||
| replacement | |||||
|
10
|
10
07130-0830A-000 BOLT (chrome)Bolt, lower; |
07130-0830A-000 |
from US $2.65 |
||
|
11
|
11
09106-08070-000 BOLT(8X30)Bolt, upper |
09106-08070-000 |
from US $8.01 |
||
|
12
|
12
09250-06004-000 CAP(OD:14.5) |
09250-06004-000 |
from US $0.91 |
||
|
13
|
13
47350-38A01-33J
COVER,FRAME HEAD,R(BLACK)
Cover, frame head rh (black); |
47350-38A01-33J |
— | ||
| replacement | |||||
|
13
|
13
47350-38A01-13L COVER,FRAME HEAD,R(SILVER)Cover, frame head rh (black); |
47350-38A01-13L |
from US $254.78 |
||
|
13
|
13
47350-38A01-YC6
COVER,FRAME HEAD,R(RED)
Cover, frame head rh (red); Model k1 |
47350-38A01-YC6 |
— | ||
|
13
|
13
47350-38A01-19A
Cover, frame head rh (red)
Cover, frame head rh (red); Model k2 |
47350-38A01-19A |
— | ||
| replacement | |||||
|
13
|
13
47350-38A01-13L COVER,FRAME HEAD,R(SILVER)Cover, frame head rh (red); Model k2 |
47350-38A01-13L |
from US $254.78 |
||
|
13
|
13
47350-38A01-YD8
COVER,FRAME HEAD,R(SILVER)
Cover, frame head rh (silver); Model k3 |
47350-38A01-YD8 |
— | ||
|
14
|
14
47360-38A01-33J
Cover, frame head lh (black)
Cover, frame head lh (black); |
47360-38A01-33J |
— | ||
| replacement | |||||
|
14
|
14
47360-38A01-13L COVER,FRAME HEAD,L(SILVER)Cover, frame head lh (black); |
47360-38A01-13L |
from US $254.78 |
||
|
14
|
14
47360-38A01-YC6
COVER,FRAME HEAD,L(RED)
Cover, frame head lh (red); Model k1 |
47360-38A01-YC6 |
— | ||
|
14
|
14
47360-38A01-19A
Cover, frame head lh (red)
Cover, frame head lh (red); Model k2 |
47360-38A01-19A |
— | ||
| replacement | |||||
|
14
|
14
47360-38A01-13L COVER,FRAME HEAD,L(SILVER)Cover, frame head lh (red); Model k2 |
47360-38A01-13L |
from US $254.78 |
||
|
14
|
14
47360-38A01-YD8
COVER,FRAME HEAD,L(SILVER)
Cover, frame head lh (silver); Model k3 |
47360-38A01-YD8 |
— | ||
|
15
|
15
02142-06103-000
Screw
Screw; |
02142-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0610B-000 SCREWStopper, cl rlse cam shaft Screw; |
02142-0610B-000 |
from US $0.76 |
||
|
15
|
15
02142-0610A-000 SCREWScrew; |
02142-0610A-000 |
from US $0.80 |
||
|
16
|
16
02112-04253-000
Screw
|
02112-04253-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0425B-000 SCREW |
02112-0425B-000 |
from US $0.80 |
||
|
17
|
17
33652-07D00-000 PROTECTOR(80X80X2)Protector (80x80x2) Cushion, frame head cover; |
33652-07D00-000 |
from US $2.56 |
||
|
18
|
18
68241-04X50-300 MOLDINGMolding, frame head cover; |
68241-04X50-300 |
from US $2.46 |
||
|
19
|
19
47358-38A00-000 TAPE,FRAME HEAD COVERProtector, sheet Tape, frame head cover; |
47358-38A00-000 |
from US $5.26 |
||
|
20
|
20
09360-06015-000
Bolt
Bolt, air duct; |
09360-06015-000 |
— | ||
| replacement | |||||
|
20
|
20
09360-06015-XC0
UNION
Bolt, air duct; |
09360-06015-XC0 |
— | ||
|
21
|
21
01550-06103-000
Bolt, front
Bolt, drain; |
01550-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0610B-000 BoltBolt Bolt, drain; |
01550-0610B-000 |
from US $0.80 |
||
|
21
|
21
01550-0610A-000 BOLTBolt, drain; |
01550-0610A-000 |
from US $0.80 |
||
|
22
|
22
09168-06004-000 GASKET(6.2X11X1.2)Washer (6x11.8x1.5) |
09168-06004-000 |
from US $1.06 |
||
|
23
|
23
41540-38A12-000 HOLDER,BATTERYHolder, battery |
41540-38A12-000 |
from US $116.66 |
||
|
24
|
24
01551-10163-000
Bolt
|
01551-10163-000 |
— | ||
| replacement | |||||
|
24
|
24
01551-1016A-000 Bolt |
01551-1016A-000 |
from US $5.24 |
||
|
25
|
25
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
25
|
25
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
26
|
26
09320-12031-000 CUSHION |
09320-12031-000 |
from US $1.92 |
||
|
27
|
27
09301-08009-000 BUSHSpacer |
09301-08009-000 |
from US $6.94 |
||
