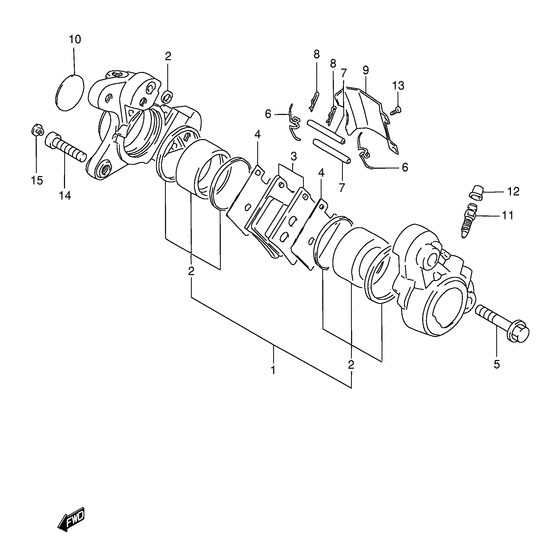

Front caliper Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
59100-38A02-000 Caliper assy, frontCaliper assy, front |
59100-38A02-000 |
US $333.62 |
||
| replacements | |||||
|
|
59100-38890-000 PAD & SHIM SET |
59100-38890-000 |
from US $60.10 |
||
|
|
59100-38A02-999 CALIPER ASSY,FR |
59100-38A02-999 |
from US $438.28 |
||
|
1
|
1
69100-38850-000
Piston set
|
69100-38850-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-38851-000 PISTON SET |
69100-38851-000 |
from US $120.31 |
||
|
2
|
2
69100-38830-000
Seal set, piston
|
69100-38830-000 |
— | ||
| replacement | |||||
|
2
|
2
69100-38831-000 SEAL SET,PISTON |
69100-38831-000 |
from US $22 |
||
|
3
|
3
59100-38820-000 Pad set |
59100-38820-000 |
from US $55.17 |
||
|
4
|
4
59371-33410-000 SHIM,PADShim |
59371-33410-000 |
from US $9.64 |
||
|
5
|
5
59145-16700-000 BOLT,HOUSING |
59145-16700-000 |
from US $4.75 |
||
|
6
|
6
59143-16700-000 SPRINGSpring |
59143-16700-000 |
from US $2.82 |
||
|
7
|
7
69141-45000-000 PIN,PADPin; |
69141-45000-000 |
from US $2.99 |
||
|
8
|
8
69142-45000-000 CLIP,PAD PINClip Clip; |
69142-45000-000 |
from US $2.58 |
||
|
9
|
9
59151-38B01-000 COVER,CALIPER HOUSING,DUST |
59151-38B01-000 |
from US $39.74 |
||
|
10
|
10
59152-24A00-000 CAP,CALIPER |
59152-24A00-000 |
from US $15.79 |
||
|
11
|
11
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
12
|
12
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
13
|
13
59153-38B10-000 SCREW,CALIPER COVER(4X6)Screw (4x6); |
59153-38B10-000 |
from US $4.97 |
||
|
14
|
14
09106-10038-000 BOLT(10X33)Bolt (10x33); |
09106-10038-000 |
from US $5.68 |
||
|
15
|
15
09250-08014-000 CAP(OD:12) |
09250-08014-000 |
from US $1.82 |
||
