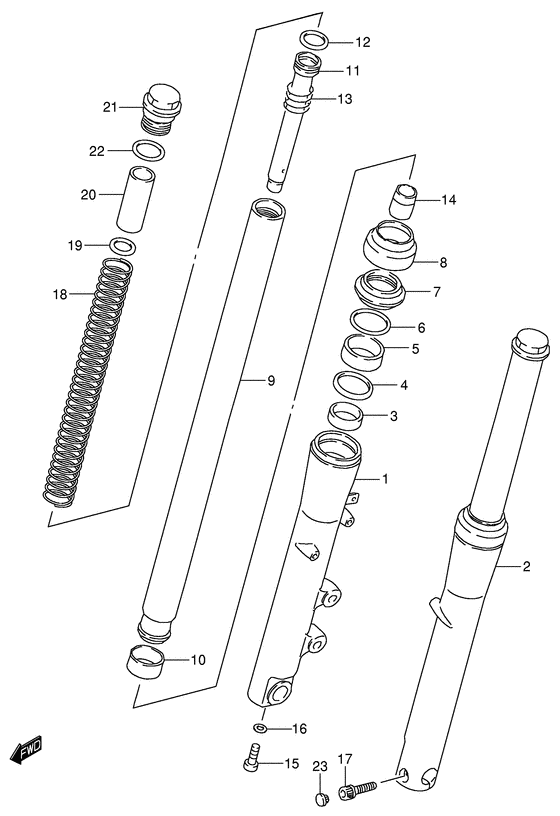

Front damper Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
51103-39A70-000
DAMPER ASSY,FR FORK,R
|
51103-39A70-000 |
— | ||
|
|
51104-39A70-000
DAMPER ASSY,FR FORK,L
|
51104-39A70-000 |
— | ||
|
1
|
1
51131-39A70-000
TUBE,OUTER,R
|
51131-39A70-000 |
— | ||
|
2
|
2
51141-39A70-000
TUBE,OUTER,L
|
51141-39A70-000 |
— | ||
|
3
|
3
51152-39A40-000 Bush,guideBush, guide |
51152-39A40-000 |
from US $14.20 |
||
|
4
|
4
51168-39A00-000 SPACER,SEALSpacer, seal |
51168-39A00-000 |
from US $4.97 |
||
|
5
|
5
51153-19D00-000 SEAL,OILSeal, oil |
51153-19D00-000 |
from US $22.80 |
||
|
6
|
6
51156-32B00-000 RING,OIL SEAL STOPPER |
51156-32B00-000 |
from US $4.27 |
||
|
7
|
7
51173-19D00-000 SEAL,DUSTSeal, dust |
51173-19D00-000 |
from US $13.92 |
||
|
8
|
8
51572-38B00-000 COVER,CASECover case, dust seal Cover, case; |
51572-38B00-000 |
from US $27.42 |
||
|
9
|
9
51110-39A41-000 TUBE,INNER |
51110-39A41-000 |
from US $327.52 |
||
|
10
|
10
51121-39A40-000 Bush,sliderBush, slide |
51121-39A40-000 |
from US $19.20 |
||
|
11
|
11
51146-39A00-000
PIPE,SEAT
|
51146-39A00-000 |
— | ||
|
12
|
12
51196-32B00-000 RING,PISTON |
51196-32B00-000 |
from US $5.26 |
||
|
13
|
13
51177-32B00-000 SPRING,REBOUND |
51177-32B00-000 |
US $6.29 |
||
|
14
|
14
51195-38B00-000 PIECE,OIL LOCKPiece, oil lock |
51195-38B00-000 |
from US $18.95 |
||
|
15
|
15
51147-48130-000 BOLT(8X27)Bolt, center |
51147-48130-000 |
from US $2.29 |
||
|
16
|
16
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
17
|
17
07130-08357-000 BoltBolt, front Bolt, lh; |
07130-08357-000 |
from US $1.44 |
||
|
18
|
18
51171-39A00-000 SPRING |
51171-39A00-000 |
from US $50.78 |
||
|
19
|
19
51172-32B00-000 WASHER,SPRING |
51172-32B00-000 |
from US $3.97 |
||
|
20
|
20
51176-39A00-000 COLLAR,SPRINGSpacer, spring |
51176-39A00-000 |
from US $8.13 |
||
|
21
|
21
51351-39A00-000 BOLT,FORKBolt, inner tube |
51351-39A00-000 |
from US $53.73 |
||
|
22
|
22
51117-39A00-000 O RING |
51117-39A00-000 |
from US $2.24 |
||
|
23
|
23
09250-06009-000 CAP(OD:14.5) |
09250-06009-000 |
from US $1.82 |
