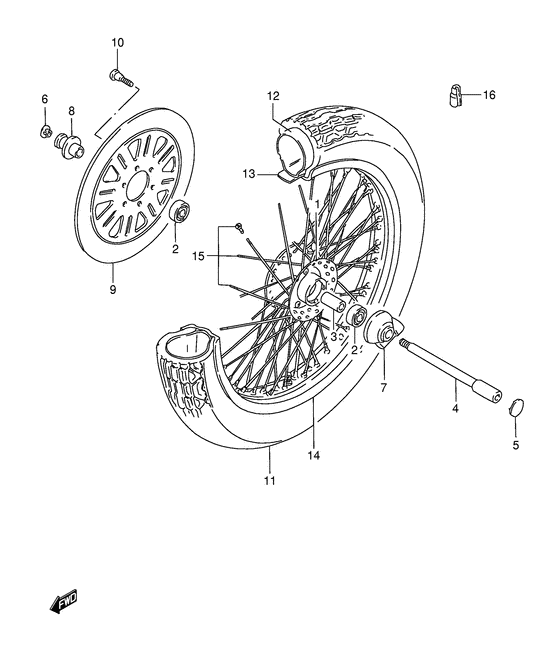

Front wheel Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-38B00-000 HUB ASSY,FRHub assy, front |
54110-38B00-000 |
US $544 |
||
|
2
|
2
08123-63027-000 BEARINGBearing; |
08123-63027-000 |
US $25.88 |
||
| replacement | |||||
|
2
|
2
08123-6302B-000 Bearing,front HubBearing; |
08123-6302B-000 |
from US $11.52 |
||
|
3
|
3
09180-15004-000 SPACER(15.3X21.7X65)Spacer, hub bearing (15.3x21.7x65); |
09180-15004-000 |
from US $11.78 |
||
|
4
|
4
54711-38B02-000 AXLE,FRAxle, front |
54711-38B02-000 |
from US $50.78 |
||
|
5
|
5
54792-38B00-000 CAP,FR AXLECap, lh Cap, front axle lh; |
54792-38B00-000 |
from US $25.64 |
||
|
6
|
6
54791-38B01-000 CAP,FR AXLECap, axle rh Cap, front axle rh; |
54791-38B01-000 |
from US $4.96 |
||
|
7
|
7
54600-38A30-000 BOX ASSY,SPEEDOMETER GEARBox assy, speedometer gear (nt:26) |
54600-38A30-000 |
from US $184 |
||
|
8
|
8
54750-38B00-000 SPACER,FR AXLESpacer, axle lh |
54750-38B00-000 |
from US $17.37 |
||
|
9
|
9
59211-38B00-000 DISC,FR BRAKEDisc, front brake |
59211-38B00-000 |
from US $414.60 |
||
|
10
|
10
09106-08125-000
Bolt (8x33)
Bolt (8x33); |
09106-08125-000 |
— | ||
| replacement | |||||
|
10
|
10
09106-08148-000 BOLT(8X33)Bolt (8x33); |
09106-08148-000 |
from US $1.98 |
||
|
11
|
11
55110-38A90-000
Tire, front (100/90-19 57h) (b
Tire, front (100/90-19 57h) (bridgestone); |
55110-38A90-000 |
— | ||
|
12
|
12
55200-38A90-000 TUBE ASSY,WHEEL INNER |
55200-38A90-000 |
from US $38.27 |
||
|
13
|
13
55261-38A90-000
Protector, inner tube
|
55261-38A90-000 |
— | ||
| replacement | |||||
|
13
|
13
55261-38A91-000 PROTECTOR,WHL INR TUBE |
55261-38A91-000 |
from US $3.28 |
||
|
14
|
14
55311-38E10-000 RIM,FR WHEEL(19X2.15 AL)Rim, wheel (2.15x19) Rim, wheel (2.15x19); |
55311-38E10-000 |
from US $327.52 |
||
|
15
|
15
55320-38B00-000 SPOKE SET,FR WHEELSpoke set, front wheel Spoke set, front wheel; |
55320-38B00-000 |
from US $258.43 |
||
|
16
|
16
55412-38A00-000
Balancer (20g)
Balancer (20g); |
55412-38A00-000 |
— | ||
| replacement | |||||
|
16
|
16
55412-41F00-000 BALANCER,WHEEL(20G)Balancer, wheel no.1 Balancer (20g); |
55412-41F00-000 |
from US $3.97 |
||
|
16
|
16
55413-38A00-000
Balancer (30g)
Balancer (30g); |
55413-38A00-000 |
— | ||
| replacement | |||||
|
16
|
16
55413-41F00-000 BALANCER,WHEEL(30G)Balancer, wheel no.2 Balancer (30g); |
55413-41F00-000 |
from US $4.42 |
||
