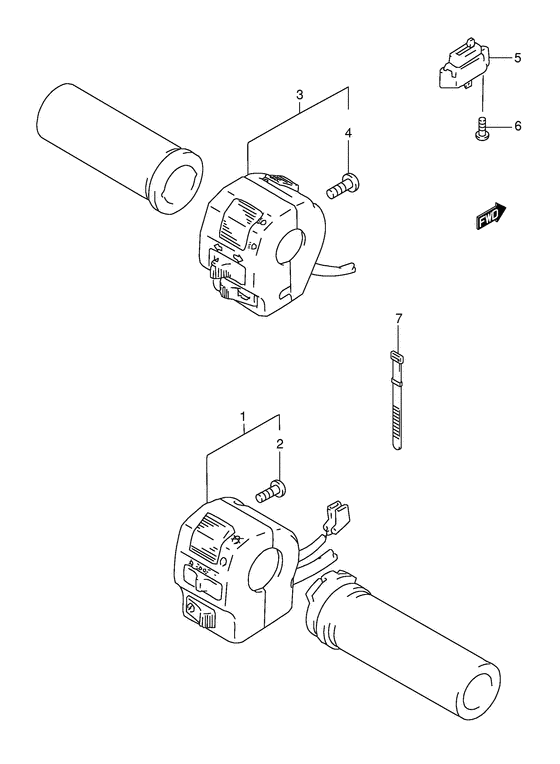

Handle switch Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37200-38AA0-000
Switch assy, handle rh
|
37200-38AA0-000 |
— | ||
|
2
|
2
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
3
|
3
37400-38AD0-000 SWITCH ASSY,HANDLE,L |
37400-38AD0-000 |
US $173.70 |
||
|
4
|
4
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
5
|
5
37560-38A00-000 SWITCH ASSY,CLUTCHSwitch assy, clutch |
37560-38A00-000 |
from US $24.97 |
||
|
6
|
6
02142-03127-000 SCREW |
02142-03127-000 |
from US $3.04 |
||
|
7
|
7
09407-14401-000 CLAMPClamp, receptacle lead Clamp, handle switch; |
09407-14401-000 |
from US $5.13 |
