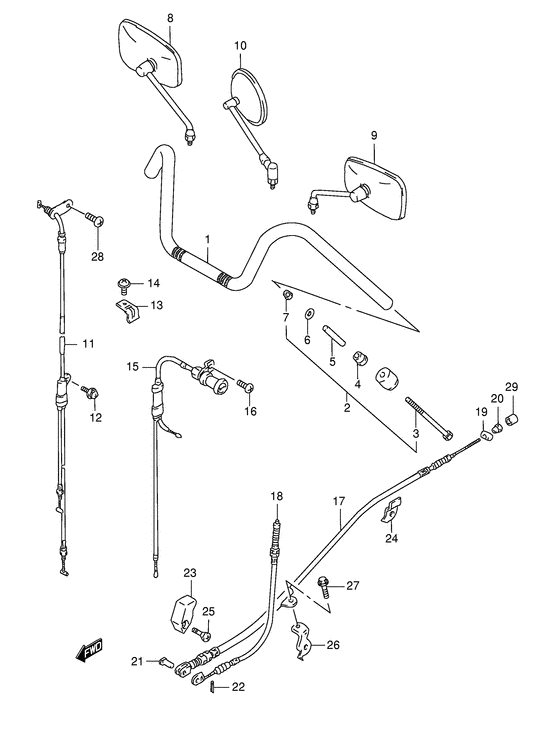

Handlebar Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-38E00-000 HANDLEBAR |
56111-38E00-000 |
from US $209.76 |
||
|
2
|
2
56200-48831-000 BALANCER SET,HANDLEBAR |
56200-48831-000 |
from US $77.60 |
||
|
3
|
3
09127-06019-000 SCREW(6X110) |
09127-06019-000 |
from US $5.68 |
||
|
4
|
4
56272-26D01-000 EXPANDER,HANDLE BALANCER NO.2 |
56272-26D01-000 |
from US $4.10 |
||
|
5
|
5
56276-17D00-000 SPACER,EXPANDER |
56276-17D00-000 |
from US $1.82 |
||
|
6
|
6
09160-06121-000 WASHER(6.5X18X2) |
09160-06121-000 |
from US $5.10 |
||
|
7
|
7
09159-06024-000 NUT |
09159-06024-000 |
from US $1.28 |
||
|
8
|
8
56500-38A41-000
MIRROR ASSY,RR VIEW,R
E25 |
56500-38A41-000 |
— | ||
| replacement | |||||
|
8
|
8
56500-38A42-000 Mirror Assy,rr View,rE25 |
56500-38A42-000 |
from US $110.48 |
||
|
9
|
9
56600-38A41-000
MIRROR ASSY,RR VIEW,L
E25 |
56600-38A41-000 |
— | ||
| replacement | |||||
|
9
|
9
56600-38A42-000
Mirror Assy,rr View,l
E25 |
56600-38A42-000 |
— | ||
|
10
|
10
56500-38A60-000
Mirror assy, rear view
E34 |
56500-38A60-000 |
— | ||
| replacement | |||||
|
10
|
10
56500-38AE0-000 MIRROR ASSY,RR VIEWE34 |
56500-38AE0-000 |
from US $264.93 |
||
|
10
|
10
56500-38A90-000 MIRROR ASSY,RR VIEWE17,e22 |
56500-38A90-000 |
US $62.56 |
||
|
11
|
11
58300-39E00-000 Cable assy,throttleCable assy, throttle |
58300-39E00-000 |
from US $82.43 |
||
|
12
|
12
02112-75123-000
Screw
Screw, throttle cable; |
02112-75123-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-7512A-000 SCREWScrew, throttle cable; |
02112-7512A-000 |
from US $3.83 |
||
|
13
|
13
58621-38A00-000 CLAMP,THROTTLE CABLEClamp, throttle cable |
58621-38A00-000 |
from US $3.97 |
||
|
14
|
14
02112-75123-000
Screw
Screw; |
02112-75123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-7512A-000 SCREWScrew; |
02112-7512A-000 |
from US $3.83 |
||
|
15
|
15
58400-38A14-000 CABLE ASSY,STARTERCable assy, starter |
58400-38A14-000 |
from US $88 |
||
|
16
|
16
02142-06103-000
Screw
Screw; |
02142-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0610B-000 SCREWStopper, cl rlse cam shaft Screw; |
02142-0610B-000 |
from US $0.76 |
||
|
16
|
16
02142-0610A-000 SCREWScrew; |
02142-0610A-000 |
from US $0.80 |
||
|
17
|
17
58510-38A01-000 CABLE,RR BRAKECable, rear brake |
58510-38A01-000 |
from US $97.15 |
||
|
18
|
18
58830-38A00-000 CABLE,STOP LAMP SWITCHCable, stop lamp switch |
58830-38A00-000 |
from US $23 |
||
|
19
|
19
09209-13018-000 PIN(13X18)Pin, rear; |
09209-13018-000 |
from US $1.82 |
||
|
20
|
20
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
20
|
20
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
21
|
21
09200-05001-000 PIN(L:17.5)Pin, front; |
09200-05001-000 |
from US $1.22 |
||
|
22
|
22
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
22
|
22
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
23
|
23
58631-38A00-000 GUIDE,RR BRAKE CABLEGuide, rear brake cable Guide, rear brake cable; |
58631-38A00-000 |
US $4.31 |
||
|
24
|
24
58721-38A00-000 CLAMP,RR BRAKE CABLEClamp, rear brake cable |
58721-38A00-000 |
from US $4.60 |
||
|
25
|
25
02122-06203-000
Screw
Screw, guide; |
02122-06203-000 |
— | ||
| replacements | |||||
|
25
|
25
02122-0620B-000 SCREWScrew, guide; |
02122-0620B-000 |
from US $3.04 |
||
|
25
|
25
02122-0620A-000 SCREWScrew, guide; |
02122-0620A-000 |
from US $0.77 |
||
|
26
|
26
43275-38A00-000 BRACKET,RR BRAKE CABLEBracket, rear brake cable |
43275-38A00-000 |
from US $5.60 |
||
|
27
|
27
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
27
|
27
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
28
|
28
02142-05087-000 SCREW |
02142-05087-000 |
from US $0.80 |
||
|
29
|
29
61442-33310-000 CAP,GREASE NIPPLECap, grease nipple Cap, brake rod; E17,e22 |
61442-33310-000 |
from US $1.60 |
||
