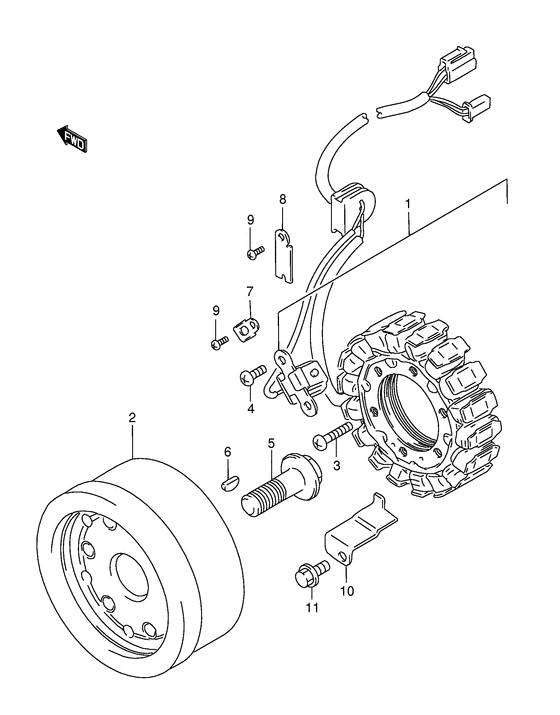

Magneto Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-45C00-000 STATOR ASSY |
32101-45C00-000 |
from US $408.48 |
||
|
2
|
2
32102-38A30-000
ROTOR ASSY
|
32102-38A30-000 |
— | ||
|
3
|
3
01547-06303-000
Bolt
Screw; |
01547-06303-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0630B-000 BOLTBolt Screw; |
01547-0630B-000 |
from US $0.96 |
||
|
4
|
4
02112-05103-000
Bolt
Screw; |
02112-05103-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0510A-000 SCREWScrew; |
02112-0510A-000 |
from US $0.76 |
||
|
5
|
5
09103-14001-000 BOLT(14X43)Bolt, rotor Bolt (14x43); |
09103-14001-000 |
from US $6.38 |
||
|
6
|
6
09420-04008-000 KEY |
09420-04008-000 |
from US $1.76 |
||
|
7
|
7
31497-45000-000 CLAMP,GENERATOR LEAD WIREClamp, magneto no.1 |
31497-45000-000 |
from US $0.92 |
||
|
8
|
8
32371-38A10-000 CLAMP NO.1,MAGNETO READ WIRE |
32371-38A10-000 |
US $0.92 |
||
|
9
|
9
02112-05103-000
Bolt
Screw; |
02112-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0510A-000 SCREWScrew; |
02112-0510A-000 |
from US $0.76 |
||
|
10
|
10
32371-45C00-000 CLAMP,MAGNETO LEAD WIREClamp, lead wire |
32371-45C00-000 |
from US $2.17 |
||
|
11
|
11
01547-06103-000
Bolt
|
01547-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0610B-000 BOLTBolt, cover |
01547-0610B-000 |
from US $0.77 |
||
