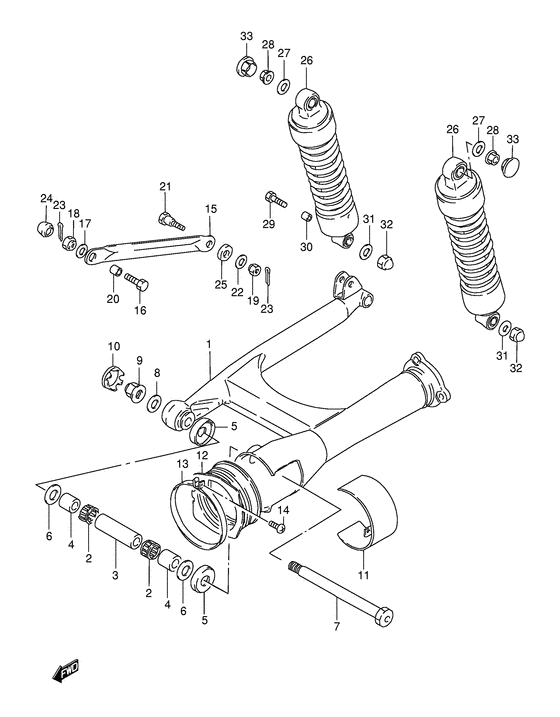

Rear swinging arm Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-38E01-19A
SWINGINGARM,RR
Swinging arm, rear (red); Model k2 |
61100-38E01-19A |
— | ||
|
1
|
1
61100-38E01-33J
Swinging arm, rear (black)
Swinging arm, rear (black); Model k2/k3 |
61100-38E01-33J |
— | ||
|
1
|
1
61100-38E01-YD8
SWINGINGARM,RR
Swinging arm, rear (silver); Model k3 |
61100-38E01-YD8 |
— | ||
|
2
|
2
09263-22022-000 BEARING(22X29X20)Bearing, pivot Bearing (22x29x20); |
09263-22022-000 |
from US $28.12 |
||
|
3
|
3
61282-38E01-000 SPACER,RR SWGARM PIVOTSpacer, center |
61282-38E01-000 |
from US $12.14 |
||
|
4
|
4
61251-32410-000 SPACER,RR SWGARM PIVOTSpacer (16*22*22) Spacer, pivot bearing; |
61251-32410-000 |
from US $13.76 |
||
|
5
|
5
61262-14A00-000
SEAL,RR SWGARM PIVOT DUST
|
61262-14A00-000 |
— | ||
| replacement | |||||
|
5
|
5
61262-14A01-000 Seal |
61262-14A01-000 |
from US $9.62 |
||
|
6
|
6
08211-16341-000 WASHER |
08211-16341-000 |
from US $1.52 |
||
|
7
|
7
61211-38E00-000 SAHFT,RR SWGARM PIVOTShaft, pivot |
61211-38E00-000 |
from US $44.16 |
||
|
8
|
8
09160-17047-000 WASHER(17X30X3) |
09160-17047-000 |
from US $6.82 |
||
|
9
|
9
08319-21168-000
Nut
|
08319-21168-000 |
— | ||
| replacement | |||||
|
9
|
9
08319-2116A-000 NUT |
08319-2116A-000 |
from US $7.83 |
||
|
10
|
10
61222-38A01-000 CAP,RR SWINGING ARM PIVOT,RCap, pivot cover Cap, rh; |
61222-38A01-000 |
from US $7.75 |
||
|
11
|
11
61232-38A00-19A COVER,RR SWGARM PIVOT,L(RED)Cap, lh (red) Cap, lh (red); Model k2 |
61232-38A00-19A |
US $17.37 |
||
|
11
|
11
61232-38A00-33J
Cap, lh (black)
Cap, lh (black); Model k2/k3 |
61232-38A00-33J |
— | ||
| replacement | |||||
|
11
|
11
61232-38A00-YAY
COVER,RR SWGARM PIVOT,L
Cap, lh (black); Model k2/k3 |
61232-38A00-YAY |
— | ||
|
11
|
11
61232-38A00-YD8
COVER,RR SWGARM PIVOT,L
Cap, lh (silver); Model k3 |
61232-38A00-YD8 |
— | ||
| replacement | |||||
|
11
|
11
61232-38A00-13L COVER,SWGARM PIVOT,LCover, pivot lh (silver) Cap, lh (silver); Model k3 |
61232-38A00-13L |
from US $27.42 |
||
|
12
|
12
61372-38A00-000 BOOT,PROPELLER SHAFTBoot, propeller shaft; |
61372-38A00-000 |
from US $32.10 |
||
|
13
|
13
09402-92306-000
Clamp
|
09402-92306-000 |
— | ||
| replacement | |||||
|
13
|
13
09402-92306-XC0 CLAMP |
09402-92306-XC0 |
from US $2.43 |
||
|
14
|
14
03211-04253-000
Screw
|
03211-04253-000 |
— | ||
| replacement | |||||
|
14
|
14
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
15
|
15
64310-38A13-019 TORQUELINK,RRTorque link, rear (black) Torque link, rear (black); |
64310-38A13-019 |
from US $13.91 |
||
|
16
|
16
09101-10037-000 BOLT(10X28)Bolt, front (10x28); |
09101-10037-000 |
from US $3.58 |
||
|
17
|
17
09160-10085-000
Washer, rear
Washer (10x20x2.30); |
09160-10085-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-10142-000 WASHER(10X20X2.3)Washer, crankcase bolt Washer (10x20x2.30); |
09160-10142-000 |
from US $0.96 |
||
|
18
|
18
09159-10059-000 NUTNut, front; |
09159-10059-000 |
from US $3.47 |
||
|
19
|
19
08310-00103-000
Nut
Nut, rear; |
08310-00103-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0010B-000 NUTNut, rear; |
08310-0010B-000 |
from US $0.80 |
||
|
19
|
19
08310-0010A-000 NUTNut, rear; |
08310-0010A-000 |
from US $0.80 |
||
|
20
|
20
09180-10137-000 SPACER(10.2X14X9.6)Spacer (10.2x14x9.60) Spacer (10.2x14x9.60); |
09180-10137-000 |
from US $5.78 |
||
|
21
|
21
09111-10035-000 BOLT(10X41)Bolt, rear (10x41); |
09111-10035-000 |
from US $8.48 |
||
|
22
|
22
09160-10085-000
Washer, rear
Washer (10x20x2.30); |
09160-10085-000 |
— | ||
| replacement | |||||
|
22
|
22
09160-10142-000 WASHER(10X20X2.3)Washer, crankcase bolt Washer (10x20x2.30); |
09160-10142-000 |
from US $0.96 |
||
|
23
|
23
04111-16208-000
Cotter pin
|
04111-16208-000 |
— | ||
| replacement | |||||
|
23
|
23
04111-1620A-000 PIN |
04111-1620A-000 |
from US $0.80 |
||
|
24
|
24
09251-13002-000 CAPCap, front; |
09251-13002-000 |
from US $6.36 |
||
|
25
|
25
09320-12501-000 CUSHION |
09320-12501-000 |
from US $10.22 |
||
|
26
|
26
62100-38A53-000 ABSORBER ASSY,RR SHOCKAbsorber assy, rear shock |
62100-38A53-000 |
from US $356.96 |
||
|
27
|
27
09160-10123-000 WASHER(10.5X20X2.3)Washer Washer, upper (10.5x20x2.3); |
09160-10123-000 |
from US $0.91 |
||
|
28
|
28
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
28
|
28
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
29
|
29
09100-10247-000 BOLT(10X39)Bolt, rear Bolt, lower rh (10x39); |
09100-10247-000 |
from US $4.76 |
||
|
30
|
30
09180-10139-000 SPACER(10.2X14X20.7)Spacer (10.2x14x20.7) Spacer, lower rh (10.5x24x2.3); |
09180-10139-000 |
from US $6.38 |
||
|
31
|
31
09160-10127-000
Washer, lower (10.5x24x2.3)
Washer, lower (10.5x24x2.30); |
09160-10127-000 |
— | ||
| replacement | |||||
|
31
|
31
09160-10093-000 WASHER(10.5X24X2.3)Washer, lower (10.5x24x2.30); |
09160-10093-000 |
from US $1.35 |
||
|
32
|
32
08313-10107-000 NUT |
08313-10107-000 |
from US $1.40 |
||
|
33
|
33
95672-24A00-000 CAP,FRAME HANDLE GRIPCap,frame handle gri |
95672-24A00-000 |
from US $2.58 |
||
