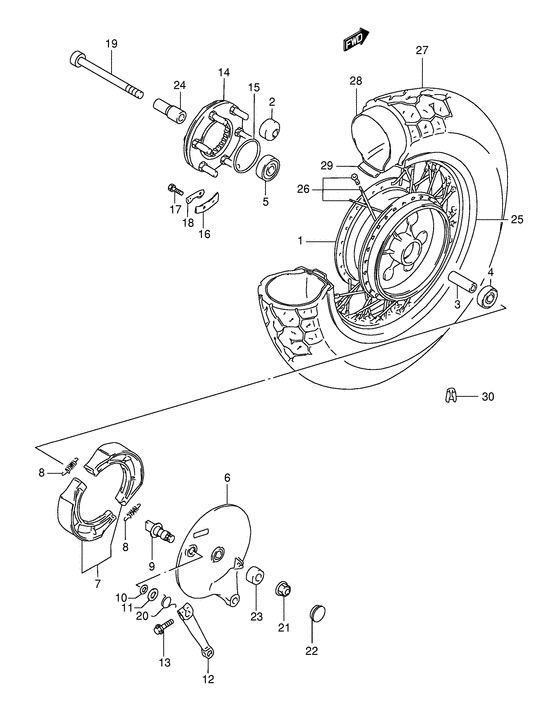

Rear wheel Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64100-07861-000
HUB SET,RR
|
64100-07861-000 |
— | ||
|
2
|
2
09319-12019-000 BUSHBushing Bushing (12x41x34); |
09319-12019-000 |
from US $7.14 |
||
|
3
|
3
09180-17091-000
SPACER(17.5X25X80)
Spacer, rear hub (17.5x25x80); |
09180-17091-000 |
— | ||
|
4
|
4
08133-62037-000
BEARING
Bearing, rh; |
08133-62037-000 |
— | ||
| replacement | |||||
|
4
|
4
08133-6203B-000 BearingBearing, rh; |
08133-6203B-000 |
from US $12.46 |
||
|
5
|
5
08143-63037-000 BEARINGBearing, rear hub lh Bearing, lh; |
08143-63037-000 |
from US $12.31 |
||
|
6
|
6
64210-38A21-000 PANEL,RR BRAKE ANCHORPanel, rear brake anchor |
64210-38A21-000 |
from US $173.70 |
||
|
7
|
7
64400-38810-000 SHOE SET,BRAKEShoe set, brake |
64400-38810-000 |
from US $50.02 |
||
|
8
|
8
55420-30000-000 SPRING,BRAKE SHOESpring, shoe Spring, shoe; |
55420-30000-000 |
from US $2.29 |
||
|
9
|
9
64441-38A20-000 CAM,RR BRAKE |
64441-38A20-000 |
from US $15.01 |
||
|
10
|
10
09280-15003-000 O RING(D:2.4,ID:14.8)O ring (id:14.8,dd:2.4) O ring (id:14.8,d:2.40); |
09280-15003-000 |
from US $1.92 |
||
|
11
|
11
09160-15048-000 WASHER(15.5X24X1.6)Washer; |
09160-15048-000 |
from US $0.96 |
||
|
12
|
12
64451-38A01-000 LEVER,RR BRAKE CAM |
64451-38A01-000 |
from US $37.54 |
||
|
13
|
13
01570-06257-000 Bolt |
01570-06257-000 |
from US $4.13 |
||
|
14
|
14
64680-45113-000 JOINT ASSY,RR HUB DRIVENJoint assy, driven Joint, hub driven; |
64680-45113-000 |
from US $136.16 |
||
|
15
|
15
09280-65003-000 O RING(D:2.1,ID:65)O ring, driven joint O ring (id:65,d:2.10); |
09280-65003-000 |
from US $5.07 |
||
|
16
|
16
64677-45110-000 WASHER,THRUST(T:1.6)Thrust washer (t:1.6) Washer, thrust; |
64677-45110-000 |
from US $4.59 |
||
|
17
|
17
09119-06049-000 BOLT(6X16)Bolt (6x16); |
09119-06049-000 |
from US $2.40 |
||
|
18
|
18
09169-06030-000 WASHERWasher, joint |
09169-06030-000 |
from US $4.28 |
||
|
19
|
19
64711-38A11-000 AXLE,RRAxle, rear (l:302) Axle, rear (l:302); |
64711-38A11-000 |
from US $54.83 |
||
|
20
|
20
09448-33006-000 SPRINGSpring, cam; |
09448-33006-000 |
from US $6.86 |
||
|
21
|
21
08319-31148-000
Nut
|
08319-31148-000 |
— | ||
| replacement | |||||
|
21
|
21
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
22
|
22
64791-38B00-000 CAP,RR AXLE,RCap, rh Cap, rh; |
64791-38B00-000 |
from US $25.76 |
||
|
23
|
23
64751-46D00-000 SPACER,RR AXLE,LSpacer, rear axle lh Spacer, rh; |
64751-46D00-000 |
from US $14.57 |
||
|
24
|
24
64772-34201-000 SPACER,RR AXLE,LSpacer, lh; |
64772-34201-000 |
from US $10.82 |
||
|
25
|
25
65311-38A02-000
RIM,RR WHEEL MT(3.00X15 M/C)
Rim, wheel (mt3.00x15 m/c); |
65311-38A02-000 |
— | ||
|
26
|
26
65320-38A02-000 SPOKE ASSY,RR WHEELSpoke set, rear wheel |
65320-38A02-000 |
from US $163.39 |
||
|
27
|
27
65110-38A70-000
Tire, rear (140/90-15 m/c 70h)
Tire, rear (140/90-15 m/c 70h) (bridgestone); |
65110-38A70-000 |
— | ||
|
28
|
28
65200-38A70-000 TUBE ASSY,WHEEL INNERTube assy, wheel inner |
65200-38A70-000 |
from US $42.32 |
||
|
29
|
29
65261-38A70-000
Protector, inner tube
|
65261-38A70-000 |
— | ||
| replacement | |||||
|
29
|
29
65261-38A71-000 PROTECTOR,WHL INR TUBE |
65261-38A71-000 |
from US $3.28 |
||
|
30
|
30
55412-38A00-000
Balancer (20g)
Balancer (20g); |
55412-38A00-000 |
— | ||
| replacement | |||||
|
30
|
30
55412-41F00-000 BALANCER,WHEEL(20G)Balancer, wheel no.1 Balancer (20g); |
55412-41F00-000 |
from US $3.97 |
||
|
30
|
30
55413-38A00-000
Balancer (30g)
Balancer (30g); |
55413-38A00-000 |
— | ||
| replacement | |||||
|
30
|
30
55413-41F00-000 BALANCER,WHEEL(30G)Balancer, wheel no.2 Balancer (30g); |
55413-41F00-000 |
from US $4.42 |
||
