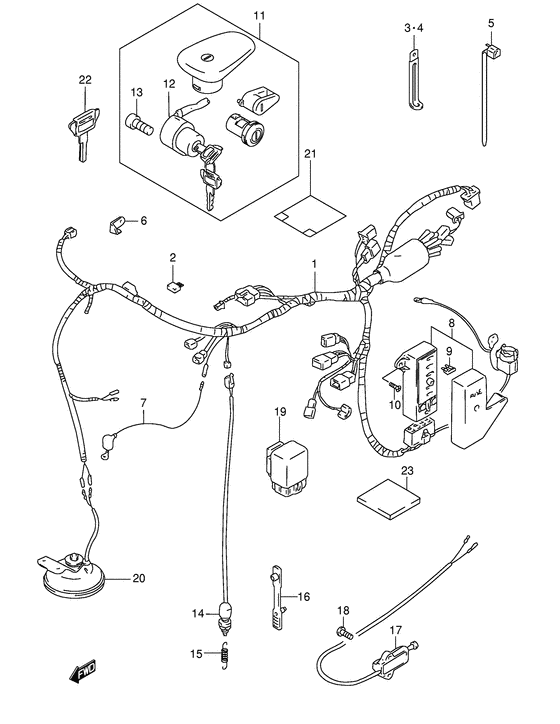

Wiring harness Diagram Suzuki VS800 Intruder 800
- Year
- 2003
- Model code
- VS800GLK3(E22) K3
- Engine Capacity
- 800
- Model
- VS800 (Intruder 800)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-39AE0-000
HARNESS,WIRING
|
36610-39AE0-000 |
— | ||
|
2
|
2
36611-38A00-000
Diode
For side stand |
36611-38A00-000 |
— | ||
| replacement | |||||
|
2
|
2
36611-38A10-000 DIODEFor side stand |
36611-38A10-000 |
from US $7.14 |
||
|
3
|
3
09404-06431-000
CLAMP(L:65)
Clamp (l:80,t:0.7); |
09404-06431-000 |
— | ||
| replacements | |||||
|
3
|
3
09404-06432-000
CLAMP(L:65)
Clamp (l:80,t:0.7); |
09404-06432-000 |
— | ||
|
3
|
3
09404-06039-000 Clamp(L:65)Clamp (l:80,t:0.7); |
09404-06039-000 |
from US $1.82 |
||
|
3
|
3
09404-06038-000 Clamp(L:65)Clamp (l:80,t:0.7); |
09404-06038-000 |
from US $2.40 |
||
|
4
|
4
09404-06432-000
CLAMP(L:65)
Clamp (l:80,t:1.0); |
09404-06432-000 |
— | ||
|
5
|
5
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
5
|
5
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
6
|
6
36687-38A00-000
PLATE,COUPLER HOLDER
|
36687-38A00-000 |
— | ||
|
7
|
7
36851-17E00-000 WIRE,WATER TEMP GAUGE LEADWire, warter gauge lead Wire, water temp gauge; |
36851-17E00-000 |
from US $5.26 |
||
|
8
|
8
36740-39A00-000 BOX ASSY,FUSEFuse box assy |
36740-39A00-000 |
from US $96 |
||
|
9
|
9
09481-10101-000 FUSE(10A)Fuse (10a); |
09481-10101-000 |
from US $1.28 |
||
|
9
|
9
09481-25103-000 FUSE(25A)Fuse (25a); |
09481-25103-000 |
from US $2.15 |
||
|
10
|
10
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
|
11
|
11
37100-38835-000
LOCK SET
|
37100-38835-000 |
— | ||
| replacement | |||||
|
11
|
11
37100-38836-000
Lock Set
|
37100-38836-000 |
— | ||
|
12
|
12
37110-38A04-000 SWITCH ASSY,IGNITIONSwitch assy, ignition |
37110-38A04-000 |
from US $65.50 |
||
|
13
|
13
07130-05163-000
Bolt
Bolt, ignition; |
07130-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
07130-0516A-000 BoltBolt, ignition; |
07130-0516A-000 |
from US $3.67 |
||
|
14
|
14
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; |
37740-31D00-000 |
from US $20.80 |
||
|
15
|
15
09443-06046-000 SPRINGSpring, stop lamp |
09443-06046-000 |
from US $4.96 |
||
|
16
|
16
09407-05403-000 CLAMP,L:88Clamp, side stand; |
09407-05403-000 |
from US $0.91 |
||
|
17
|
17
37840-39A22-000
Switch Assy,Side Stand
|
37840-39A22-000 |
— | ||
| replacement | |||||
|
17
|
17
37840-39A23-000 Switch Assy,Side Stand |
37840-39A23-000 |
from US $76.39 |
||
|
18
|
18
02112-76203-000
Screw
|
02112-76203-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-7620B-000 SCREW |
02112-7620B-000 |
from US $4.39 |
||
|
19
|
19
38740-24X50-000 RELAY ASSYRelay, neutral start Relay assy, side stand; |
38740-24X50-000 |
from US $25.08 |
||
|
20
|
20
38500-39A00-000 HORN ASSY |
38500-39A00-000 |
from US $88.32 |
||
|
21
|
21
36618-15D20-000
COVER,WIRING HARNESS
Cover, harness; |
36618-15D20-000 |
— | ||
| replacement | |||||
|
21
|
21
36618-15D21-000 Cover,wiring HarnessCover, harness; |
36618-15D21-000 |
from US $9.12 |
||
|
22
|
22
37146-03A00-000 KEY,BLANK(TYPE:C)Key, blank (type c); Opt |
37146-03A00-000 |
from US $9.68 |
||
|
22
|
22
37146-03A10-000 KEY,BLANK(TYPE:D)Key, blank (type d); Opt |
37146-03A10-000 |
from US $8.36 |
||
|
22
|
22
37146-03A20-000 KEY,BLANK(TYPE:E)Key, blank (type e); Opt |
37146-03A20-000 |
from US $9.68 |
||
|
22
|
22
37146-03A30-000 KEY,BLANK(TYPE:F)Key, blank (type f); Opt |
37146-03A30-000 |
from US $9.68 |
||
|
23
|
23
36920-02200-000 COVER,HARNESSTape, trunk box lamp Protector; |
36920-02200-000 |
from US $1.80 |
||
