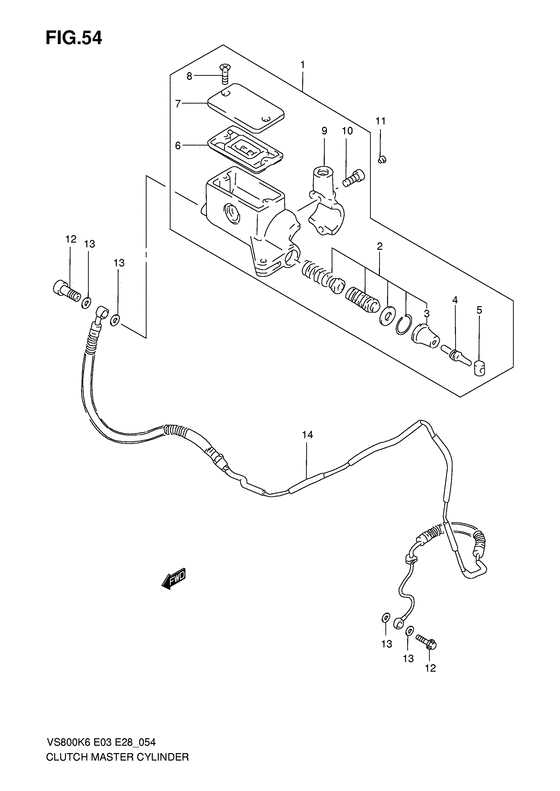

Clutch master cylinder Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59800-39A40-000
Cylinder assy, clutch master
|
59800-39A40-000 |
— | ||
| replacement | |||||
|
1
|
1
59800-39A41-000 CYLINDER ASSY,CLUTCH MASTER |
59800-39A41-000 |
from US $323.84 |
||
|
2
|
2
59800-08810-000 PISTON & CUP SETPiston/cup set |
59800-08810-000 |
from US $53.28 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59871-38A00-000
Push rod
|
59871-38A00-000 |
— | ||
| replacements | |||||
|
4
|
4
59866-23H00-000 BOOT |
59866-23H00-000 |
from US $1.92 |
||
|
4
|
4
59871-32F00-000 ROD,PUSH |
59871-32F00-000 |
from US $9.11 |
||
|
5
|
5
59892-08A00-000 BUSH |
59892-08A00-000 |
from US $4.10 |
||
|
6
|
6
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
7
|
7
59669-10F00-000 CAP |
59669-10F00-000 |
from US $37.90 |
||
|
8
|
8
02122-04127-000 SCREW |
02122-04127-000 |
from US $0.80 |
||
|
9
|
9
59671-38A00-000 HOLDER |
59671-38A00-000 |
from US $32.68 |
||
|
10
|
10
07130-06207-000 Bolt |
07130-06207-000 |
from US $0.96 |
||
|
11
|
11
09250-05008-000 CAP(OD:10) |
09250-05008-000 |
from US $1.92 |
||
|
12
|
12
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Bolt (10x1.00x22); |
09360-10061-000 |
from US $6.24 |
||
|
13
|
13
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer; |
09161-10009-000 |
from US $1.06 |
||
|
14
|
14
59900-38A71-000
HOSE ASSY,CLUTCH
|
59900-38A71-000 |
— | ||
| replacement | |||||
|
14
|
14
59900-38A72-000 Hose |
59900-38A72-000 |
US $305.44 |
||
