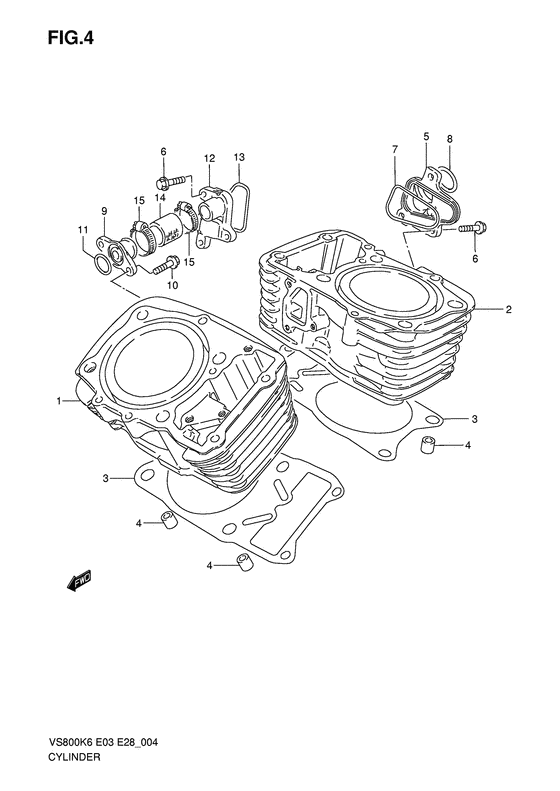

Cylinder Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-39A50-0F0
CYLINDER,FR
|
11210-39A50-0F0 |
— | ||
|
2
|
2
11220-39A20-0F0 CYLINDER,RRCylinder, rear |
11220-39A20-0F0 |
from US $461.12 |
||
|
3
|
3
11241-45C20-000 GASKET,CYLINDERGasket, cylinder Gasket, cylinder; |
11241-45C20-000 |
from US $15.84 |
||
|
4
|
4
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
5
|
5
11237-41F00-000 CONNECTOR,CYLINDER INLET PIPE |
11237-41F00-000 |
from US $24 |
||
|
6
|
6
01547-06207-000 BoltBolt, lower |
01547-06207-000 |
from US $0.80 |
||
|
7
|
7
11247-38A00-000 O RING,INLET WATER CHAMBER |
11247-38A00-000 |
from US $2.13 |
||
|
8
|
8
09280-24007-000 O RING(D:2.3,ID:24.4)O ring (d:2.3,id:24.4); |
09280-24007-000 |
from US $1.12 |
||
|
9
|
9
11235-41F00-000 UNION,CYL INLETUnion, water inlet; |
11235-41F00-000 |
from US $15.68 |
||
|
10
|
10
01547-06167-000 BOLTBolt, fastener bracket |
01547-06167-000 |
from US $0.80 |
||
|
11
|
11
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe O ring (d:2.4,id:15.8); |
09280-16005-000 |
from US $1.31 |
||
|
12
|
12
11236-45C10-000 CHAMBER,WATER OUTLETChamber, water outlet |
11236-45C10-000 |
from US $27.68 |
||
|
13
|
13
11246-38A00-000 O RING,OUTLET WATER CHAMBERO ring |
11246-38A00-000 |
from US $2.46 |
||
|
14
|
14
17851-01A00-000 HOSE,RADIATOR INLETHose, head outlet joint |
17851-01A00-000 |
from US $18.24 |
||
|
15
|
15
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
