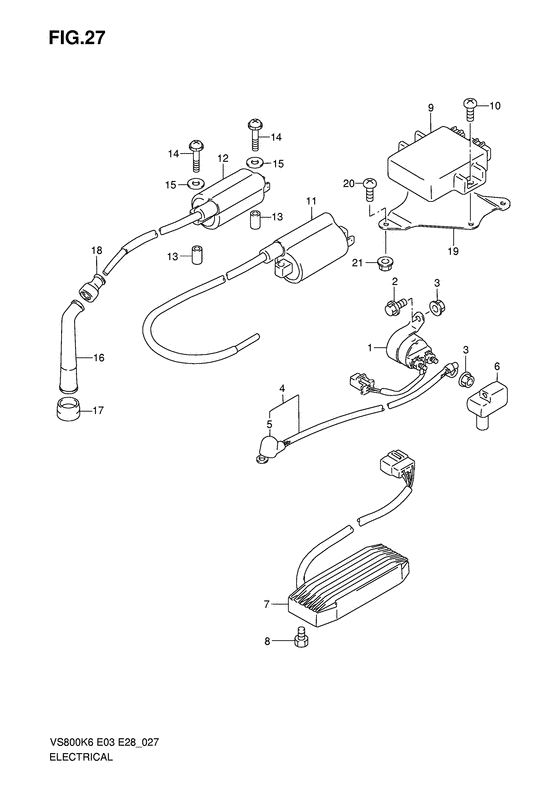

Electrical Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-15501-000 RELAY ASSY,STARTING MOTORRelay assy, starting motor Relay, starting motor; |
31800-15501-000 |
from US $52.45 |
||
|
2
|
2
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
3
|
3
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.77 |
||
|
4
|
4
33850-38A00-000 WIRE,STARTER MOTOR LEADLead wire, starting motor |
33850-38A00-000 |
from US $15.79 |
||
|
5
|
5
31861-48B10-000 CAP,STARTER MOTOR LEADCap, starter motor Cap, starter motor; |
31861-48B10-000 |
from US $3.50 |
||
|
6
|
6
31861-38A00-000 CAP,STARTER RELAYCap, terminal |
31861-38A00-000 |
from US $5 |
||
|
7
|
7
32800-12E01-000 Rectifier AssyRectifier, regulator |
32800-12E01-000 |
from US $367.71 |
||
|
8
|
8
01500-0610B-000 BOLTBolt Screw; |
01500-0610B-000 |
from US $0.80 |
||
|
9
|
9
32900-38A31-000 IGNITOR ASSYIgniter unit |
32900-38A31-000 |
from US $922.24 |
||
|
10
|
10
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
11
|
11
33410-38A20-000 COIL ASSY,IGNITION RRCoil, ignition (cord l:300) Coil, ignition (cord l:300); For rear |
33410-38A20-000 |
from US $56.80 |
||
|
12
|
12
33420-38A20-000 COIL ASSY,IGNITION FRCoil, ignition (cord l:520); For front |
33420-38A20-000 |
from US $105.25 |
||
|
13
|
13
09180-06144-000 SPACER(6.4X10X19)Spacer, fuel pump Spacer (6.4x10x19); |
09180-06144-000 |
from US $6.70 |
||
|
14
|
14
09137-05008-000
SCREW(5X38)
5x38 |
09137-05008-000 |
— | ||
|
15
|
15
08322-0105B-000 WASHERWasher; |
08322-0105B-000 |
from US $0.76 |
||
|
16
|
16
33510-11410-000 Cap,spark plugCap, spark plug Cap, spark plug; |
33510-11410-000 |
from US $28.16 |
||
|
17
|
17
33541-38210-000 SEAL,SPARK PLUGSeal, plug; |
33541-38210-000 |
US $7.48 |
||
| replacement | |||||
|
17
|
17
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug Seal, plug; |
33541-47D00-000 |
from US $4.26 |
||
|
18
|
18
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
19
|
19
32910-38A10-000 PLATE,IGNITOR FITINGPlate, igniter fitting |
32910-38A10-000 |
US $7.91 |
||
|
20
|
20
02112-3612B-000 SCREW |
02112-3612B-000 |
US $13.60 |
||
|
21
|
21
08316-2006B-000 NUT |
08316-2006B-000 |
US $14.40 |
||
