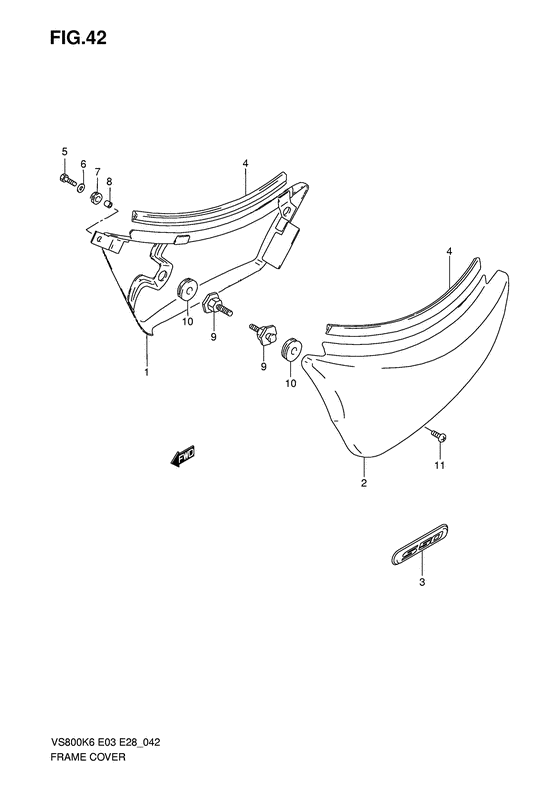

Frame cover Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47100-39AA0-YAY
COVER ASSY,FRAME,R(BLACK)
Cover, frame rh (black); |
47100-39AA0-YAY |
— | ||
|
1
|
1
47100-39AA0-YDV
Cover, frame rh (silver)
Cover, frame rh (silver); Model k6 |
47100-39AA0-YDV |
— | ||
|
1
|
1
47100-39AA0-YHL
Cover, frame rh (red)
Cover, frame rh (red); Model k6 |
47100-39AA0-YHL |
— | ||
| replacement | |||||
|
1
|
1
47110-38A00-13L COVER,FRAME,R(SILVER)Cover, frame rh (red); Model k6 |
47110-38A00-13L |
from US $292.56 |
||
|
1
|
1
47100-39AA0-YC3
COVER ASSY,FRAME,R(WHITE)
Cover, frame rh (white); Model k7 |
47100-39AA0-YC3 |
— | ||
| replacement | |||||
|
1
|
1
47110-38A00-13L COVER,FRAME,R(SILVER)Cover, frame rh (white); Model k7 |
47110-38A00-13L |
from US $292.56 |
||
|
1
|
1
47100-39AA0-YMD
COVER ASSY,FRAME,R(SILVER)
Cover, frame rh (silver); Model k8 |
47100-39AA0-YMD |
— | ||
|
1
|
1
47100-39AA0-YRB
COVER ASSY,FRAME,R(BLUE)
Cover, frame rh (blue); Model k9 |
47100-39AA0-YRB |
— | ||
|
2
|
2
47200-39AA0-YAY
Cover, frame lh (black)
Cover, frame lh (black); |
47200-39AA0-YAY |
— | ||
| replacement | |||||
|
2
|
2
47210-38A00-13L COVER,FRAME,L(SILVER)Cover, frame lh (black); |
47210-38A00-13L |
from US $201.15 |
||
|
2
|
2
47200-39AA0-YDV
COVER ASSY,FRAME,L(SILVER)
Cover, frame lh (silver); Model k6 |
47200-39AA0-YDV |
— | ||
| replacement | |||||
|
2
|
2
47210-38A00-13L COVER,FRAME,L(SILVER)Cover, frame lh (silver); Model k6 |
47210-38A00-13L |
from US $201.15 |
||
|
2
|
2
47200-39AA0-YHL
Cover, frame lh (red)
Cover, frame lh (red); Model k6 |
47200-39AA0-YHL |
— | ||
| replacement | |||||
|
2
|
2
47210-38A00-13L COVER,FRAME,L(SILVER)Cover, frame lh (red); Model k6 |
47210-38A00-13L |
from US $201.15 |
||
|
2
|
2
47200-39AA0-YC3
COVER ASSY,FRAME,L(WHITE)
Cover, frame lh (white); Model k7 |
47200-39AA0-YC3 |
— | ||
| replacement | |||||
|
2
|
2
47210-38A00-13L COVER,FRAME,L(SILVER)Cover, frame lh (white); Model k7 |
47210-38A00-13L |
from US $201.15 |
||
|
2
|
2
47200-39AA0-YMD
COVER ASSY,FRAME,L(SILVER)
Cover, frame lh (silver); Model k8 |
47200-39AA0-YMD |
— | ||
|
2
|
2
47200-39AA0-YRB
COVER ASSY,FRAME,L(BLUE)
Cover, frame lh (blue); Model k9 |
47200-39AA0-YRB |
— | ||
| replacement | |||||
|
2
|
2
47210-38A00-13L COVER,FRAME,L(SILVER)Cover, frame lh (blue); Model k9 |
47210-38A00-13L |
from US $201.15 |
||
|
3
|
3
68131-39AA0-000
EMBLEM,S50
|
68131-39AA0-000 |
— | ||
|
4
|
4
68241-04X50-300 MOLDING |
68241-04X50-300 |
from US $2.46 |
||
|
5
|
5
01550-06167-000 BOLTBolt, rh; |
01550-06167-000 |
from US $0.68 |
||
|
6
|
6
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
7
|
7
09320-06017-000
CUSHION
|
09320-06017-000 |
— | ||
| replacement | |||||
|
7
|
7
09320-08516-000 Cushion(8X18X5.8) |
09320-08516-000 |
from US $3.35 |
||
|
8
|
8
09180-06246-000 SPACER(6.1X8X5.2) |
09180-06246-000 |
from US $1.60 |
||
|
9
|
9
47250-38A01-000 BOSS,FRAME COVERBoss, frame cover; |
47250-38A01-000 |
from US $3.34 |
||
|
10
|
10
09320-08013-000
CUSHION
|
09320-08013-000 |
— | ||
| replacement | |||||
|
10
|
10
09320-08509-000 Cushion(8X22X7) |
09320-08509-000 |
from US $1.98 |
||
|
11
|
11
02142-0610B-000 SCREWStopper, cl rlse cam shaft Screw, lh; |
02142-0610B-000 |
from US $0.76 |
||
