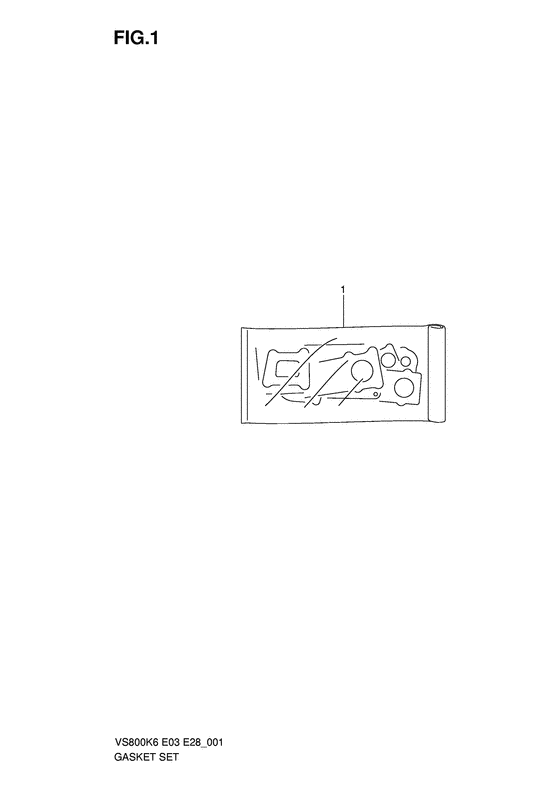

Gasket set Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11402-45818-000 GASKET SETOpt |
11402-45818-000 |
from US $242.88 |
||
|
2
|
2
11123-38A00-000 GASKET,CYLINDER HEAD WATERGasket, head cover Gasket, head cover; Not shown |
11123-38A00-000 |
from US $2.11 |
||
|
3
|
3
11141-45C00-000 GASKET,CYLINDER HEAD FRGasket, cylinder head front Gasket, cylinder head front; Not shown |
11141-45C00-000 |
from US $52.80 |
||
|
4
|
4
11142-45C00-000 GASKET,CYLINDER HEAD RRGasket, cylinder head rear Gasket, cylinder head rear; Not shown |
11142-45C00-000 |
from US $52.80 |
||
|
5
|
5
11177-38A00-000 GASKET,INSPECTION CAPGasket, inspection cap; Not shown |
11177-38A00-000 |
from US $2.58 |
||
|
6
|
6
11182-38A00-000 GASKET,WATER OUTLET UNIONGasket, water outlet union; Not shown |
11182-38A00-000 |
from US $1.52 |
||
|
7
|
7
11187-38A02-H17 GASKET,BREATHER COVERGasket, breather cover Gasket, breather cover; Not shown |
11187-38A02-H17 |
from US $7.04 |
||
|
8
|
8
11241-45C20-000 GASKET,CYLINDERGasket, cylinder Gasket, cylinder; Not shown |
11241-45C20-000 |
from US $15.84 |
||
|
9
|
9
11246-38A00-000 O RING,OUTLET WATER CHAMBERO ring O ring, outlet water chamber; Not shown |
11246-38A00-000 |
from US $2.46 |
||
|
10
|
10
11247-38A00-000 O RING,INLET WATER CHAMBERO ring, inlet water chamber; Not shown |
11247-38A00-000 |
from US $2.13 |
||
|
11
|
11
11482-41F00-000 GASKET,CLUTCH COVERNot shown |
11482-41F00-000 |
from US $12.35 |
||
|
12
|
12
11483-41F00-000 GASKET,GENERATOR COVERNot shown |
11483-41F00-000 |
from US $8.97 |
||
|
13
|
13
14181-45C00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe Gasket, exhaust pipe; Not shown |
14181-45C00-000 |
from US $6.08 |
||
|
14
|
14
16528-38A00-000 O RING,OIL STRAINER CAPO ring, oil strainer cap; Not shown |
16528-38A00-000 |
from US $6.54 |
||
|
15
|
15
17431-38A10-000 GASKET,WATER PUMPNot shown |
17431-38A10-000 |
from US $2.13 |
||
|
16
|
16
17435-38A00-000 O RING,WATER PUMP CAPO ring, water pump cap; Not shown |
17435-38A00-000 |
from US $5.32 |
||
|
17
|
17
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); Not shown |
09168-06023-000 |
from US $1.51 |
||
|
18
|
18
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1); Not shown |
09168-08016-000 |
from US $1.22 |
||
|
19
|
19
09168-16002-000 GASKET(16X22X2)Gasket (16x22x2); Not shown |
09168-16002-000 |
from US $0.90 |
||
|
20
|
20
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4.0); Not shown |
09280-04004-000 |
from US $1.82 |
||
|
21
|
21
09280-12009-000 O RING(D:1.9,ID:12.6)O ring (d:1.9,id:12.6); Not shown |
09280-12009-000 |
from US $1.76 |
||
|
22
|
22
09280-15008-000 O RING(D:3.1,ID:14.8)Not shown |
09280-15008-000 |
from US $1.22 |
||
|
23
|
23
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe O ring (d:2.4,id:15.8); Not shown |
09280-16005-000 |
from US $1.31 |
||
|
24
|
24
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); Not shown |
09280-17003-000 |
from US $1.51 |
||
|
25
|
25
09280-18004-000 O RING(D:2.4,ID:17.8)O ring, front hook O ring (d:2.4,id:17.8); Not shown |
09280-18004-000 |
from US $2.56 |
||
|
26
|
26
09280-24007-000 O RING(D:2.3,ID:24.4)O ring (d:2.3,id:24.4); Not shown |
09280-24007-000 |
from US $1.12 |
||
|
27
|
27
09280-33004-000 O RING(D:3.1,ID:32.7)O ring (d:3.1,id:32.7); Not shown |
09280-33004-000 |
from US $1.67 |
||
|
28
|
28
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); Not shown |
09280-40010-000 |
— | ||
| replacement | |||||
|
28
|
28
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); Not shown |
09280-40020-000 |
from US $4.59 |
||
|
29
|
29
09280-60003-000 O RING(D:1.2,ID:59.6)O ring (d:1.2,id:59.6); Not shown |
09280-60003-000 |
from US $3.77 |
||
|
30
|
30
09280-67004-000 O RING(D:2.1,ID:66.2)O ring (d:2.1,id:66.2) Not shown |
09280-67004-000 |
from US $2.24 |
||
