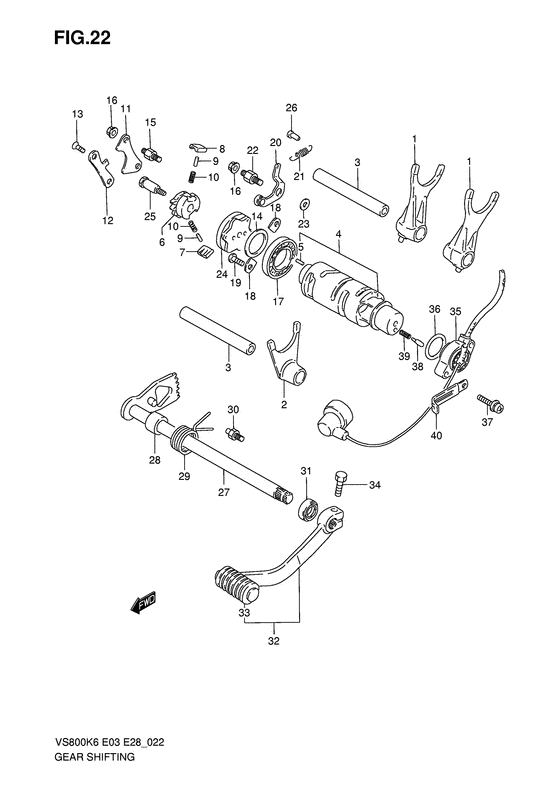

Gear shifting Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-38A02-000 FORK,GEAR SHIFT NO.1 |
25211-38A02-000 |
from US $73.92 |
||
|
2
|
2
25221-38A01-000 FORK,GEAR SHIFT NO.2 |
25221-38A01-000 |
from US $68.64 |
||
|
3
|
3
25411-38A00-000 SHAFT,GEAR SHIFT FORK(L:115)Shaft, sub t/m gear shift Shaft, gear shifting fork; |
25411-38A00-000 |
from US $13.73 |
||
|
4
|
4
25310-38A03-000
CAM,GEAR SHIFT
|
25310-38A03-000 |
— | ||
|
5
|
5
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
6
|
6
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVEN |
25322-31310-000 |
from US $15.96 |
||
|
7
|
7
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 Pawl, no.1; |
25323-34201-000 |
from US $6.23 |
||
|
8
|
8
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 Pawl, no.2; |
25324-34201-000 |
from US $6.23 |
||
|
9
|
9
09261-05003-000 PIN(5X8)Pin |
09261-05003-000 |
from US $1.22 |
||
|
10
|
10
09440-04003-000 SPRINGSpring; |
09440-04003-000 |
from US $1.06 |
||
|
11
|
11
25331-38A00-000 LIFTER,GEAR SHIFT POLELifter, pawl; |
25331-38A00-000 |
from US $3.97 |
||
|
12
|
12
25341-38A00-000 GUIDE,GEAR SHIFT CAM |
25341-38A00-000 |
US $5.19 |
||
|
13
|
13
09126-06011-000 SCREW(6X12)Screw, retainer mdl Screw (6x12); |
09126-06011-000 |
from US $0.76 |
||
|
14
|
14
09160-25059-000 WASHER(25X32X3)Washer (25x32x3); |
09160-25059-000 |
from US $1.60 |
||
|
15
|
15
25332-38A10-000 BOSS,SHIFT POLE LIFTER |
25332-38A10-000 |
US $2.98 |
||
|
16
|
16
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
17
|
17
09262-25006-000 BEARING(25X47X8)Bearing (25x47x8) Bearing (25x47x8); |
09262-25006-000 |
from US $14.08 |
||
|
18
|
18
24741-21A00-000 RETAINERRetainer, bearing; |
24741-21A00-000 |
from US $1.60 |
||
|
19
|
19
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw (6x12); |
09125-06110-000 |
from US $1.52 |
||
|
20
|
20
25350-38A00-000 STOPPER,GEAR SHIFT CAM |
25350-38A00-000 |
US $7.95 |
||
|
21
|
21
09443-09027-000 SPRING |
09443-09027-000 |
from US $2.08 |
||
|
22
|
22
25355-38A10-000 SUPPORT,CAM STOPPER ARM |
25355-38A10-000 |
US $4.23 |
||
|
23
|
23
08211-06141-000 WASHERWasher |
08211-06141-000 |
from US $2.52 |
||
|
24
|
24
25380-38A02-000 PLATE,GEAR SHIFT CAMPlate, stopper; |
25380-38A02-000 |
from US $8.98 |
||
|
25
|
25
25312-38A00-000 PIN,SHIFT CAM DRIVEN GEARPin, shift cam driven gear |
25312-38A00-000 |
from US $4.56 |
||
|
26
|
26
09223-04001-000 RIVETPin Hook (4x12.5); Model k6 |
09223-04001-000 |
from US $2.30 |
||
|
26
|
26
09223-04004-000 RIVETHook Hook (4x13); Model k7/k8/k9 |
09223-04004-000 |
US $11 |
||
|
27
|
27
25510-38A00-000 SHAFT,GEAR SHIFT |
25510-38A00-000 |
from US $51.15 |
||
|
28
|
28
09180-12068-000 SPACER(12X20X15.3)Spacer (12x20x15.3) Spacer (12x20x15.3); |
09180-12068-000 |
from US $5.07 |
||
|
29
|
29
09444-26013-000 SPRINGSpring Spring; |
09444-26013-000 |
from US $1.68 |
||
|
30
|
30
25671-01011-000 STOPPER,GEAR SHIFT ARMStopper, arm; |
25671-01011-000 |
from US $1.92 |
||
|
31
|
31
09285-12002-000
Shift shaft oil
Oil seal (12x22x9); |
09285-12002-000 |
— | ||
| replacement | |||||
|
31
|
31
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) Oil seal (12x22x9); |
09285-12006-000 |
from US $2.58 |
||
|
32
|
32
25600-38A00-000 LEVER ASSY,GEAR SHIFTLever assy, gear shifting |
25600-38A00-000 |
from US $63.66 |
||
|
33
|
33
25652-20C00-000 RUBBER,GEAR SHIFT PEDAL |
25652-20C00-000 |
from US $2.89 |
||
|
34
|
34
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
35
|
35
37720-38A40-000 BASE,NEUTRAL SWH TERMINALBody, switch |
37720-38A40-000 |
from US $45.26 |
||
|
36
|
36
09280-26005-000 O RING(D:2.4,ID:26.2)O ring (d:2.4,id:26.2) O ring (d:2.4,id:26.2); |
09280-26005-000 |
from US $1.82 |
||
|
37
|
37
02112-7520A-000 SCREW |
02112-7520A-000 |
from US $3.96 |
||
|
38
|
38
09209-05011-000 PIN(5X15.5)Contact Contact, switch; |
09209-05011-000 |
from US $1.51 |
||
|
39
|
39
09440-04010-000 SPRINGSpring; |
09440-04010-000 |
from US $1.06 |
||
|
40
|
40
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
40
|
40
09404-06433-000
CLAMP(L:80)
Clamp (l:80); |
09404-06433-000 |
— | ||
| replacements | |||||
|
40
|
40
09404-06434-000
CLAMP(L:80 T:1.0)
Clamp (l:80); |
09404-06434-000 |
— | ||
|
40
|
40
09404-06436-000 Clamp(L:80)Clamp (l:80); |
09404-06436-000 |
from US $2.13 |
||
|
40
|
40
09404-06036-000 Clamp(L:80)Clamp (l:80); |
09404-06036-000 |
from US $1.82 |
||
