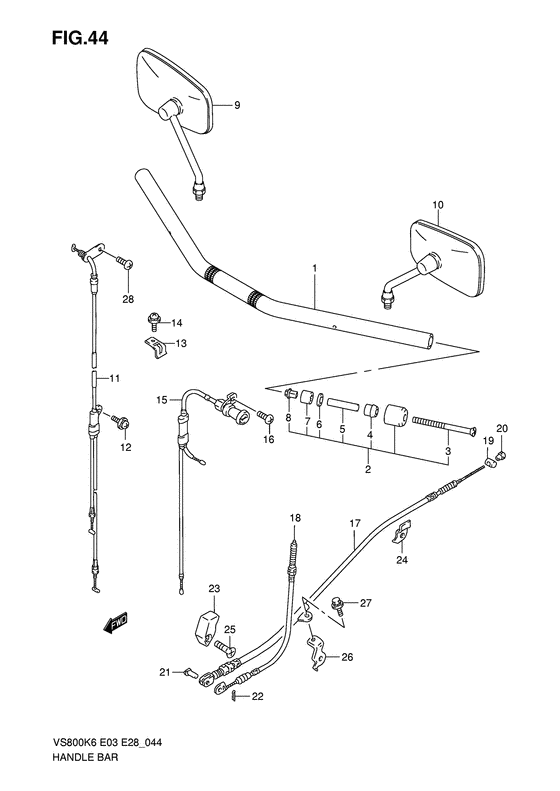

Handlebar Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-39A00-000 HANDLEBAR |
56111-39A00-000 |
from US $162.33 |
||
|
2
|
2
56200-48861-000 BALANCER SET,HANDLEBAR |
56200-48861-000 |
from US $48.21 |
||
|
3
|
3
09127-06019-000 SCREW(6X110) |
09127-06019-000 |
from US $5.68 |
||
|
4
|
4
56272-26D01-000 EXPANDER,HANDLE BALANCER NO.2Expander, outer; |
56272-26D01-000 |
from US $4.10 |
||
|
5
|
5
56276-17D00-000 SPACER,EXPANDER |
56276-17D00-000 |
from US $1.82 |
||
|
6
|
6
09160-06131-000 WASHER(6.5X16X4)Washer; |
09160-06131-000 |
from US $0.76 |
||
|
7
|
7
56272-10G10-000 EXPANDER,HANDLE BALANCER |
56272-10G10-000 |
from US $1.98 |
||
|
8
|
8
56273-10G10-000 NUT,HANDLE BALANCER |
56273-10G10-000 |
from US $4.10 |
||
|
9
|
9
56500-45C40-000
Mirror assy, rear view rh
Model k6 |
56500-45C40-000 |
— | ||
| replacement | |||||
|
9
|
9
56500-45C41-000 MIRROR ASSY,RR VIEW,RModel k6 |
56500-45C41-000 |
from US $107.46 |
||
|
9
|
9
56500-45C41-000 MIRROR ASSY,RR VIEW,RModel k7/k8/k9 |
56500-45C41-000 |
from US $107.46 |
||
|
10
|
10
56600-45C40-000
Mirror assy, rear view lh
Model k6 |
56600-45C40-000 |
— | ||
| replacement | |||||
|
10
|
10
56600-45C41-000 MIRROR ASSY,RR VIEW,LModel k6 |
56600-45C41-000 |
from US $107.46 |
||
|
10
|
10
56600-45C41-000 MIRROR ASSY,RR VIEW,LModel k7/k8/k9 |
56600-45C41-000 |
from US $107.46 |
||
|
11
|
11
58300-39A00-000 Cable assy,throttle |
58300-39A00-000 |
from US $89.79 |
||
|
12
|
12
02112-7512B-000 SCREWScrew, throttle cable; |
02112-7512B-000 |
US $15.50 |
||
|
13
|
13
58621-38A00-000 CLAMP,THROTTLE CABLEClamp, throttle cable |
58621-38A00-000 |
from US $3.97 |
||
|
14
|
14
02112-7512B-000 SCREW |
02112-7512B-000 |
US $15.50 |
||
|
15
|
15
58400-38A14-000 CABLE ASSY,STARTERCable assy, starter |
58400-38A14-000 |
from US $88 |
||
|
16
|
16
02142-0610B-000 SCREWStopper, cl rlse cam shaft Screw; |
02142-0610B-000 |
from US $0.76 |
||
|
17
|
17
58510-38A01-000 CABLE,RR BRAKECable, rear brake |
58510-38A01-000 |
from US $97.15 |
||
|
18
|
18
58830-38A00-000 CABLE,STOP LAMP SWITCHCable, stop lamp switch |
58830-38A00-000 |
from US $23 |
||
|
19
|
19
09209-13018-000 PIN(13X18)Pin, rear; |
09209-13018-000 |
from US $1.82 |
||
|
20
|
20
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
21
|
21
09200-05001-000 PIN(L:17.5)Pin, front; |
09200-05001-000 |
from US $1.22 |
||
|
22
|
22
04111-2015A-000 PIN |
04111-2015A-000 |
from US $0.76 |
||
|
23
|
23
58631-38A00-000 GUIDE,RR BRAKE CABLEGuide, rear brake cable Guide, rear brake cable; |
58631-38A00-000 |
US $4.31 |
||
|
24
|
24
58721-38A00-000 CLAMP,RR BRAKE CABLEClamp, rear brake cable |
58721-38A00-000 |
from US $4.60 |
||
|
25
|
25
02122-0620B-000 SCREWScrew, guide; |
02122-0620B-000 |
from US $3.04 |
||
|
26
|
26
43275-38A00-000 BRACKET,RR BRAKE CABLEBracket, rear brake cable |
43275-38A00-000 |
from US $5.60 |
||
|
27
|
27
01580-0616B-000 BoltBolt, bracket |
01580-0616B-000 |
US $15.50 |
||
|
28
|
28
09139-05033-000 SCREW(5X10)Bolt, guard lh Screw; |
09139-05033-000 |
from US $1.06 |
||
