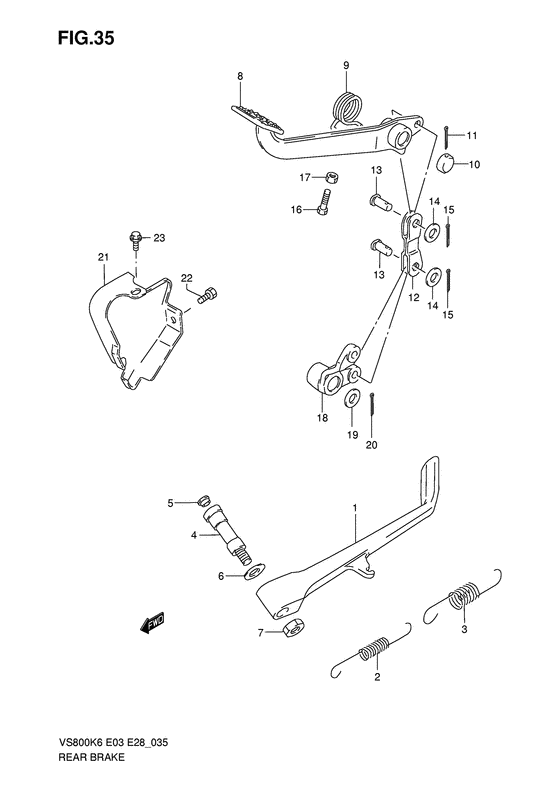

Rear brake Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-24B01-000 STAND,PROP |
42310-24B01-000 |
from US $69.18 |
||
|
2
|
2
09443-13025-000 SPRINGSpring, inner |
09443-13025-000 |
from US $9.01 |
||
|
3
|
3
09443-18021-000 SPRINGSpring, outer |
09443-18021-000 |
from US $8.48 |
||
|
4
|
4
42341-38B01-000 BOLT,PROP STANDBolt |
42341-38B01-000 |
from US $6.66 |
||
|
5
|
5
43575-34500-000 CAP |
43575-34500-000 |
from US $1.60 |
||
|
6
|
6
09181-15158-000 SHIM(15X24X0.5) |
09181-15158-000 |
from US $1.58 |
||
|
7
|
7
09140-10044-000 NUT |
09140-10044-000 |
from US $4.13 |
||
|
8
|
8
43100-38A31-000 PEDAL ASSY,BRAKEPedal assy, brake |
43100-38A31-000 |
from US $85.38 |
||
|
9
|
9
09448-31034-000 SPRING |
09448-31034-000 |
from US $4.11 |
||
|
10
|
10
43135-07A02-000 CAP,BRAKE PEDALCap |
43135-07A02-000 |
from US $5.26 |
||
|
11
|
11
04111-3025A-000 PINPin, cotter |
04111-3025A-000 |
from US $2.18 |
||
|
12
|
12
43230-38A02-000 LINK,BRAKE ROD NO.1Link, brake rod |
43230-38A02-000 |
from US $11.38 |
||
|
13
|
13
09200-08055-000 PINPin,front |
09200-08055-000 |
from US $4.76 |
||
|
14
|
14
08322-01087-000 WASHERLock washer Washer; |
08322-01087-000 |
from US $0.76 |
||
|
15
|
15
04111-2015A-000 PIN |
04111-2015A-000 |
from US $0.76 |
||
|
16
|
16
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
17
|
17
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
18
|
18
43260-38A22-000
ARM,BRAKE PEDAL LINK
|
43260-38A22-000 |
— | ||
|
19
|
19
09160-16043-000 WASHER(16.5X22X1)Washer; |
09160-16043-000 |
from US $1.12 |
||
|
20
|
20
04111-3025A-000 PINPin, cotter |
04111-3025A-000 |
from US $2.18 |
||
|
21
|
21
43295-38A31-000 COVER,BRAKE |
43295-38A31-000 |
from US $41.95 |
||
|
22
|
22
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
23
|
23
01547-06107-000 BOLT |
01547-06107-000 |
from US $1.60 |
