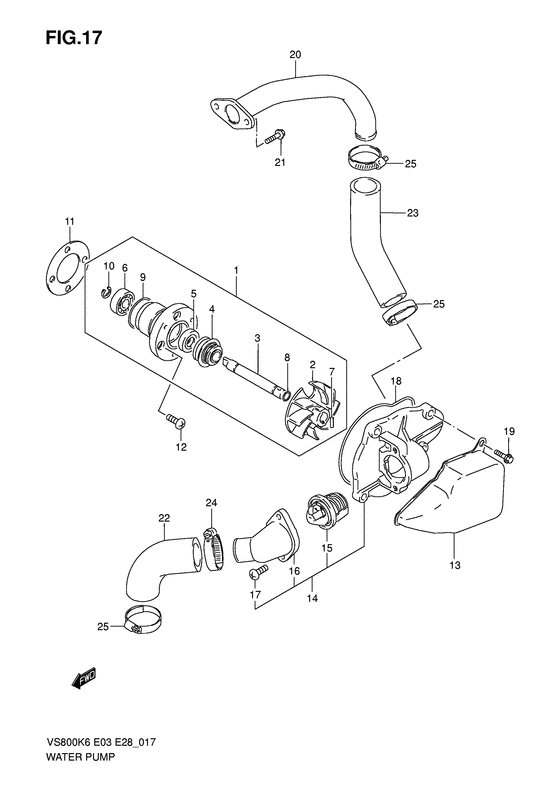

Water pump Diagram Suzuki VS800 Boulevard S50
- Year
- 2008
- Model code
- VS800K8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VS800 (Boulevard S50)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-38A10-000
PUMP ASSY,WATER
|
17400-38A10-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-38A11-000 Pump Assy,water |
17400-38A11-000 |
from US $160.16 |
||
|
2
|
2
17491-38A00-000 IMPELLER |
17491-38A00-000 |
from US $25.60 |
||
|
3
|
3
17511-38A00-000 SHAFT |
17511-38A00-000 |
from US $22.82 |
||
|
4
|
4
17470-02F10-000
SEAL,MECHANICAL
Seal, mechanical; |
17470-02F10-000 |
— | ||
| replacement | |||||
|
4
|
4
17470-02F11-000 Seal,mechanicalSeal, mechanical; |
17470-02F11-000 |
from US $18.25 |
||
|
5
|
5
09283-10004-000 SEAL,OIL(10X21X5)Oil seal (10x21x5) |
09283-10004-000 |
from US $2.28 |
||
|
6
|
6
09262-10004-000 BEARING(10X22X6)Bearing (10x22x6) Bearing; |
09262-10004-000 |
from US $19.14 |
||
|
7
|
7
17516-38A00-000 PIN |
17516-38A00-000 |
from US $1.76 |
||
|
8
|
8
17515-38A00-000 O RING |
17515-38A00-000 |
from US $2.13 |
||
|
9
|
9
17417-38A00-000
O RING
|
17417-38A00-000 |
— | ||
| replacement | |||||
|
9
|
9
17417-38A01-000 O Ring |
17417-38A01-000 |
from US $2.58 |
||
|
10
|
10
08332-11086-000
E ring
|
08332-11086-000 |
— | ||
| replacement | |||||
|
10
|
10
08332-1108A-000 E RING |
08332-1108A-000 |
from US $0.96 |
||
|
11
|
11
17431-38A10-000 GASKET,WATER PUMP |
17431-38A10-000 |
from US $2.13 |
||
|
12
|
12
02112-0612B-000 SCREWScrew, oil guide plate Screw; |
02112-0612B-000 |
from US $0.76 |
||
|
13
|
13
17441-38A02-000 COVER,WATER PUMPCover, water pump |
17441-38A02-000 |
from US $12.77 |
||
|
14
|
14
17410-38A00-000 CASE ASSY,WATER PUMP |
17410-38A00-000 |
from US $118.86 |
||
|
15
|
15
17670-33410-000
THERMOSTAT,WATER
|
17670-33410-000 |
— | ||
| replacement | |||||
|
15
|
15
17670-33411-000 Thermostat,water |
17670-33411-000 |
from US $48.31 |
||
|
16
|
16
17412-45C00-000 CONNECTOR |
17412-45C00-000 |
from US $32.38 |
||
|
17
|
17
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
18
|
18
17435-38A00-000 O RING,WATER PUMP CAP |
17435-38A00-000 |
from US $5.32 |
||
|
19
|
19
01547-06207-000 BoltBolt, lower |
01547-06207-000 |
from US $0.80 |
||
|
20
|
20
17890-38A00-000 PIPE,CYLINDER INLETPipe, cylinder in |
17890-38A00-000 |
from US $31.46 |
||
|
21
|
21
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
22
|
22
17857-38A02-000 HOSE,WATER PUMP INHose, water pump in |
17857-38A02-000 |
from US $12.64 |
||
|
23
|
23
17858-38820-000 HOSE,WATER PUMP OUTLETHose, water pump out; |
17858-38820-000 |
from US $16.80 |
||
|
24
|
24
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
25
|
25
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
