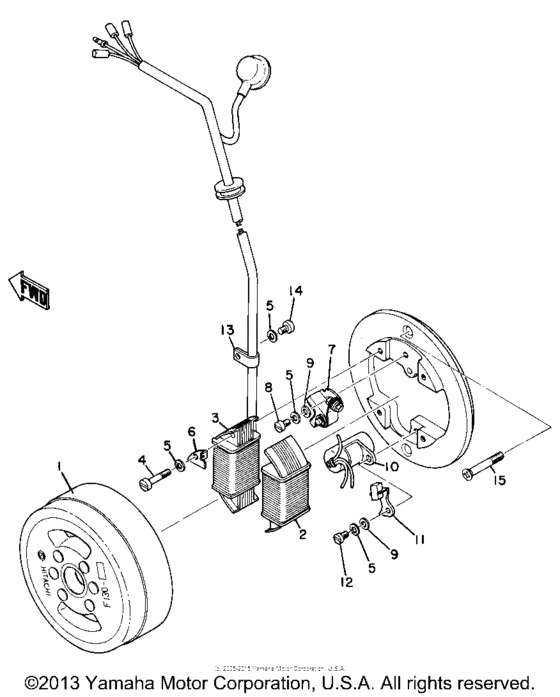

Flywheel & magneto Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-81300-10-00
Flywhl Magneto Assembly
|
248-81300-10-00 |
— | ||
|
1
|
1
248-81350-10-00
Rotor Assembly
|
248-81350-10-00 |
— | ||
|
1
|
1
251-81300-10-00
Flywhl Magneto Assembly
|
251-81300-10-00 |
— | ||
|
2
|
2
185-81312-10-00
Coil, Source
|
185-81312-10-00 |
— | ||
|
3
|
3
248-81313-10-00
Coil, Lighting 1
|
248-81313-10-00 |
— | ||
|
3
|
3
251-81313-10-00
Coil, Lighting 1
|
251-81313-10-00 |
— | ||
|
4
|
4
97602-04125-00 Screw, Pan Head With Washer |
97602-04125-00 |
US $1.21 |
||
| replacement | |||||
|
4
|
4
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
207-81321-90-00 Contact Brkr Assembly |
207-81321-90-00 |
US $61.96 |
||
|
6
|
6
185-81332-10-00
Plate, Timing
|
185-81332-10-00 |
— | ||
|
8
|
8
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
9
|
9
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
10
|
10
207-81326-90-00 Condenser 2 |
207-81326-90-00 |
US $29.83 |
||
|
11
|
11
207-81331-10-00 Lubricator |
207-81331-10-00 |
US $6.52 |
||
|
12
|
12
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
13
|
13
109-81328-11-00
Clamp
|
109-81328-11-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
15
|
15
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
