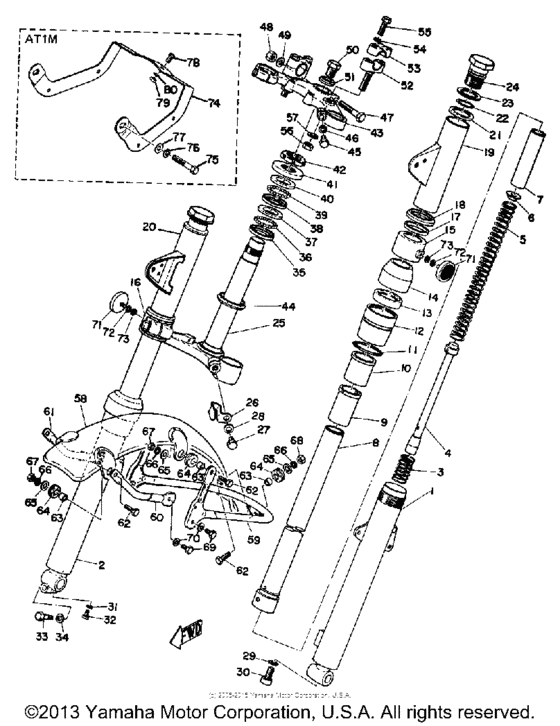

Front fork & front fender Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
970-11060-25-00
Bolt
97001-06025-00 STAY REAR |
970-11060-25-00 |
— | ||
| replacement | |||||
|
1
|
1
970-17060-25-00 Bolt97001-06025-00 STAY REAR |
970-17060-25-00 |
from US $1.34 |
||
|
1
|
1
248-23126-00-35
Tube, Outer 1
ISO |
248-23126-00-35 |
— | ||
|
1
|
1
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
2
|
2
248-23136-00-35
Tube, Outer 2
ISO |
248-23136-00-35 |
— | ||
|
3
|
3
248-23152-00-00
Spring, Sub
|
248-23152-00-00 |
— | ||
|
4
|
4
248-23170-01-00
Cylinder, Frtfrk
|
248-23170-01-00 |
— | ||
|
5
|
5
318-23141-00-00
Spring, Front Fork
|
318-23141-00-00 |
— | ||
|
6
|
6
248-23142-00-00
Seat, Spring Upper
|
248-23142-00-00 |
— | ||
|
7
|
7
248-23118-00-00
Spacer
|
248-23118-00-00 |
— | ||
|
8
|
8
248-23124-00-00
Tube, Inner 1
|
248-23124-00-00 |
— | ||
|
9
|
9
248-23166-00-00
Spacer, Oil Lock
|
248-23166-00-00 |
— | ||
|
10
|
10
137-23125-01-00
Metal, Slide 1
|
137-23125-01-00 |
— | ||
|
11
|
11
137-23147-00-00
O-Ring
|
137-23147-00-00 |
— | ||
|
12
|
12
193-23150-40-00
Outer Nut
|
193-23150-40-00 |
— | ||
|
13
|
13
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
14
|
14
248-23144-00-00 Seal, Dust |
248-23144-00-00 |
from US $35.20 |
||
|
15
|
15
261-23122-60-00
Cover, Outer 1
ISO |
261-23122-60-00 |
— | ||
|
16
|
16
261-23122-60-00
Cover, Outer 1
ISO |
261-23122-60-00 |
— | ||
|
17
|
17
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
18
|
18
248-23116-01-00
Guide, Cover Lower
|
248-23116-01-00 |
— | ||
|
19
|
19
248-23121-00-46
Cover, Upper 1
|
248-23121-00-46 |
— | ||
|
20
|
20
248-23131-00-46
Cover, Upper 2
|
248-23131-00-46 |
— | ||
|
21
|
21
248-23115-01-00
Guide, Cover Upper
|
248-23115-01-00 |
— | ||
|
22
|
22
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
23
|
23
177-23112-00-00
Washer, Cap
|
177-23112-00-00 |
— | ||
|
24
|
24
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
248-23340-00-33
Under Bracket
|
248-23340-00-33 |
— | ||
|
26
|
26
256-23318-60-00
Holder, Cable 1
|
256-23318-60-00 |
— | ||
|
27
|
27
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
27
|
27
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
28
|
28
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
29
|
29
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
30
|
30
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
30
|
30
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.42 |
||
|
31
|
31
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
32
|
32
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
33
|
33
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
34
|
34
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
35
|
35
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
35
|
35
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
36
|
36
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
36
|
36
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
37
|
37
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
37
|
37
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
38
|
38
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
38
|
38
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
39
|
39
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
39
|
39
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
40
|
40
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
40
|
40
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
41
|
41
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
42
|
42
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
42
|
42
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
42
|
42
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
43
|
43
248-23435-03-33
Crown, Handle
|
248-23435-03-33 |
— | ||
|
44
|
44
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
45
|
45
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
45
|
45
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
45
|
45
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
45
|
45
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
46
|
46
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
47
|
47
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
47
|
47
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
48
|
48
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 ISO |
95303-08800-00 |
from US $3.12 |
||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
50
|
50
901-01141-13-00
Bolt (214-23451-10)
214-23451-10 |
901-01141-13-00 |
— | ||
|
51
|
51
902-09140-22-00
Washer, Spec''l Shap (214-23443
214-23443 |
902-09140-22-00 |
— | ||
|
52
|
52
214-23442-02-00
Holder, Handle Lwr
|
214-23442-02-00 |
— | ||
|
53
|
53
315-23441-00-93
Holder, Handle Upr
|
315-23441-00-93 |
— | ||
|
54
|
54
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
55
|
55
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
55
|
55
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
55
|
55
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
55
|
55
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
56
|
56
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
56
|
56
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
57
|
57
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
58
|
58
214-21510-00-35
Fender, Front
|
214-21510-00-35 |
— | ||
|
58
|
58
248-21510-00-35
Fender, Front
|
248-21510-00-35 |
— | ||
|
59
|
59
214-21512-00-93
Bracket, Fender
|
214-21512-00-93 |
— | ||
|
59
|
59
248-21512-00-93
Bracket, Fender
|
248-21512-00-93 |
— | ||
|
60
|
60
214-21513-00-00
Stay, Fender 1
|
214-21513-00-00 |
— | ||
|
60
|
60
248-21513-00-00
Stay, Fender 1
|
248-21513-00-00 |
— | ||
|
61
|
61
214-21514-00-00
Stay, Fender 2
|
214-21514-00-00 |
— | ||
|
61
|
61
248-21514-00-00
Stay, Fender 2
|
248-21514-00-00 |
— | ||
|
62
|
62
97023-06020-00 Bolt3XF 97302-06020-00 STAY FRONT |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
62
|
62
970-24060-20-00 Bolt(3Dm)3XF 97302-06020-00 STAY FRONT |
970-24060-20-00 |
from US $0.93 |
||
|
63
|
63
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
63
|
63
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
64
|
64
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
65
|
65
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
65
|
65
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
66
|
66
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
67
|
67
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
68
|
68
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
68
|
68
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
69
|
69
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
69
|
69
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
70
|
70
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
71
|
71
233-85111-00-00
Reflector, Front 1
ISO |
233-85111-00-00 |
— | ||
|
72
|
72
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
73
|
73
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
74
|
74
263-21685-00-35
Bracket, License
|
263-21685-00-35 |
— | ||
|
75
|
75
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
75
|
75
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
76
|
76
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
77
|
77
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
78
|
78
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
78
|
78
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
79
|
79
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
80
|
80
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
