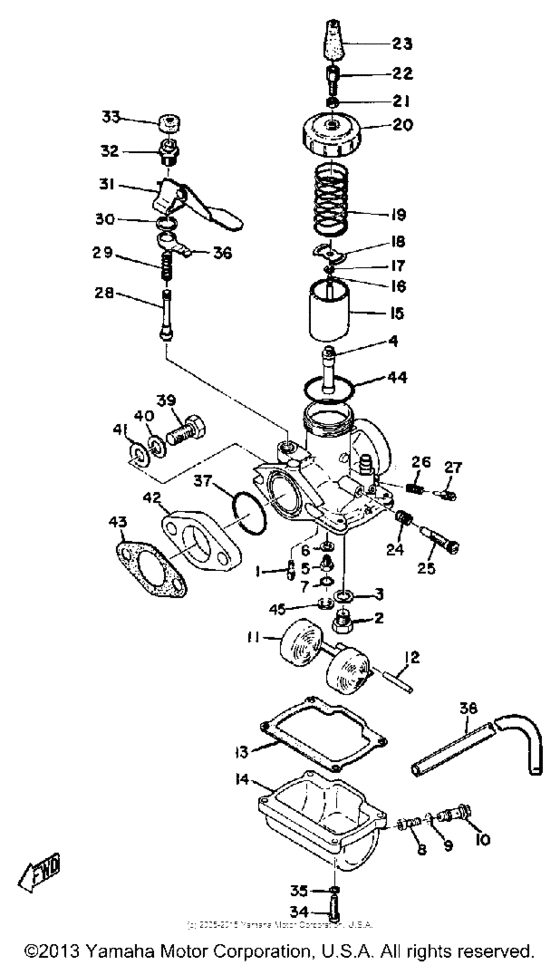

Carburetor Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
193-14142-30-A0 Jet, Pilot #30 (#30)#30 #30 ISO |
193-14142-30-A0 |
from US $11.12 |
||
|
1
|
1
248-14101-01-00
Carburetor Assembly 1
ISO |
248-14101-01-00 |
— | ||
|
1
|
1
248-14101-70-00
Carburetor Assembly 1
|
248-14101-70-00 |
— | ||
|
2
|
2
168-14190-20-00 Valve, Seat Assy |
168-14190-20-00 |
from US $38.77 |
||
|
2
|
2
23L-14107-25-00 Needle Valve Set |
23L-14107-25-00 |
from US $48.92 |
||
|
3
|
3
214-14195-00-00 Washer, Valve Seat |
214-14195-00-00 |
from US $2.66 |
||
|
4
|
4
248-14141-28-00
Nozzle, Main
|
248-14141-28-00 |
— | ||
|
4
|
4
261-14141-32-00
Nozzle, Main
|
261-14141-32-00 |
— | ||
|
5
|
5
248-14145-01-00
Setter, Needle Jet
0015 AT1E |
248-14145-01-00 |
— | ||
|
5
|
5
248-14145-00-00
Setter, Needle Jet 001
001 3000 AT1E |
248-14145-00-00 |
— | ||
|
6
|
6
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
7
|
7
932-10041-21-00
O-Ring
0015 AT1E |
932-10041-21-00 |
— | ||
| replacement | |||||
|
7
|
7
93210-04230-00 O-Ring0015 AT1E |
93210-04230-00 |
from US $1.66 |
||
|
7
|
7
932-10061-20-00
O-Ring 001
001 3000 AT1E |
932-10061-20-00 |
— | ||
|
8
|
8
137-14143-38-A0 Jet, Main (#190) |
137-14143-38-A0 |
from US $7.28 |
||
|
8
|
8
137-14143-28-A0 Jet, Main (#140) |
137-14143-28-A0 |
from US $10.71 |
||
|
8
|
8
137-14143-32-00 Jet, Main #160#160 U.R. U.R. |
137-14143-32-00 |
from US $10.85 |
||
|
8
|
8
137-14143-36-A1 Jet, Main (#180) |
137-14143-36-A1 |
from US $11.66 |
||
|
8
|
8
137-14143-34-00 Jet, Main #170Jet, main (170) #170 U.R. U.R. STD AT1M |
137-14143-34-00 |
from US $10.73 |
||
|
8
|
8
137-14143-30-00 Jet, Main#150 U.R. U.R. STD AT1E |
137-14143-30-00 |
from US $10.62 |
||
|
8
|
8
137-14143-26-A0 Jet, Main #130Jet, main (130) |
137-14143-26-A0 |
from US $9.95 |
||
|
9
|
9
248-14198-00-00
Gasket
|
248-14198-00-00 |
— | ||
|
10
|
10
248-14166-00-00
Bolt, Banjo
|
248-14166-00-00 |
— | ||
| replacement | |||||
|
10
|
10
479-14166-00-00
Bolt, Banjo
|
479-14166-00-00 |
— | ||
|
11
|
11
156-14185-00-00
Float
|
156-14185-00-00 |
— | ||
|
12
|
12
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
13
|
13
156-14184-00-00
Gasket, Float Chamber
|
156-14184-00-00 |
— | ||
|
14
|
14
248-14181-01-00
Body, Float Chmbr 1
0015 AT1E |
248-14181-01-00 |
— | ||
|
15
|
15
204-14112-20-00
Valve, Throttle 1
|
204-14112-20-00 |
— | ||
|
15
|
15
204-14112-15-00
Valve, Throttle 1
|
204-14112-15-00 |
— | ||
|
16
|
16
156-14116-03-00
Needle
|
156-14116-03-00 |
— | ||
|
16
|
16
152-14116-15-00
Needle
|
152-14116-15-00 |
— | ||
|
17
|
17
137-14137-00-00
Clip
|
137-14137-00-00 |
— | ||
|
18
|
18
246-14132-00-00
Stopper, Cable
|
246-14132-00-00 |
— | ||
|
19
|
19
248-14131-00-00 Spring, Throttle Valve |
248-14131-00-00 |
from US $10.46 |
||
|
20
|
20
802-14158-00-00
Top, Mixing Chamber
|
802-14158-00-00 |
— | ||
|
21
|
21
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
22
|
22
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
23
|
23
802-14169-00-00 Cap |
802-14169-00-00 |
from US $5.81 |
||
| replacement | |||||
|
23
|
23
8A7-14169-00-00 Cap |
8A7-14169-00-00 |
from US $5.81 |
||
|
24
|
24
137-14133-00-00 Spring, Throttle Stop |
137-14133-00-00 |
from US $5.10 |
||
|
25
|
25
24X-14103-00-00
Throttle Screw Set
|
24X-14103-00-00 |
— | ||
| replacement | |||||
|
25
|
25
40T-14103-00-00 Throttle Screw Set |
40T-14103-00-00 |
from US $18.28 |
||
|
26
|
26
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
27
|
27
23X-14104-00-00 Air Screw Set |
23X-14104-00-00 |
from US $10.39 |
||
|
28
|
28
132-14171-00-00 Plunger, Starter |
132-14171-00-00 |
from US $23.80 |
||
|
29
|
29
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
30
|
30
132-14179-00-00
Washer, Starter Lvr
|
132-14179-00-00 |
— | ||
|
31
|
31
248-14175-00-00
Lever, Starter 1
|
248-14175-00-00 |
— | ||
|
32
|
32
132-14174-00-00
Cap, Plunger
|
132-14174-00-00 |
— | ||
|
33
|
33
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
34
|
34
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
34
|
34
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
35
|
35
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
36
|
36
170-14178-00-00
Plate, Starter Lever
|
170-14178-00-00 |
— | ||
|
37
|
37
248-14147-00-00 O-Ring |
248-14147-00-00 |
from US $10.76 |
||
|
38
|
38
90445-05013-00 Hose (L200) |
90445-05013-00 |
from US $1.73 |
||
| replacement | |||||
|
38
|
38
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $1.34 |
||
|
39
|
39
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
39
|
39
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
39
|
39
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
39
|
39
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
40
|
40
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
41
|
41
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
42
|
42
248-13555-01-00
Manifold, Intake
|
248-13555-01-00 |
— | ||
|
43
|
43
248-13556-70-00 Gasket,manifold |
248-13556-70-00 |
from US $6.23 |
||
| replacement | |||||
|
43
|
43
248-13556-71-00 Gasket, Manifold |
248-13556-71-00 |
from US $4.56 |
||
|
44
|
44
246-14126-00-00 Gasket |
246-14126-00-00 |
from US $5.81 |
||
|
45
|
45
127-14195-00-00 Washer, Needle Valve3000 AT1E |
127-14195-00-00 |
from US $2.98 |
||
