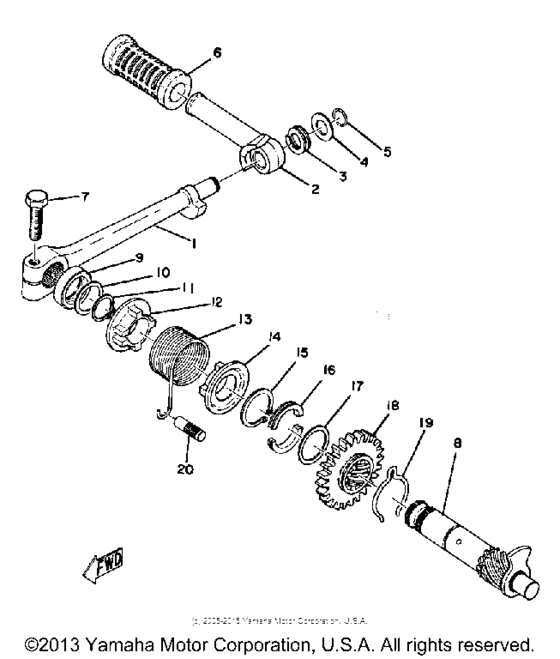

Kick Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V6-15620-00-00 Kick Crank Assembly |
3V6-15620-00-00 |
from US $78.68 |
||
|
1
|
1
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
2
|
2
214-15612-01-00
Lever, Kick
|
214-15612-01-00 |
— | ||
|
3
|
3
90504-18009-00 Spring, Compression (214-1562214-1562 |
90504-18009-00 |
from US $2.41 |
||
|
4
|
4
214-15616-00-00 Washer, Kick Lever |
214-15616-00-00 |
from US $3.40 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
93440-11029-00 Circlip, Outer |
93440-11029-00 |
from US $1.98 |
||
|
6
|
6
214-15618-00-00 Cover, Kick Lever |
214-15618-00-00 |
from US $6.52 |
||
|
7
|
7
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
7
|
7
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
7
|
7
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
7
|
7
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
8
|
8
248-15660-00-00
Kick Axle Assembly
|
248-15660-00-00 |
— | ||
|
9
|
9
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $5.96 |
||
| replacement | |||||
|
9
|
9
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $3.64 |
||
|
10
|
10
90201-203E7-00 Washer, Plate |
90201-203E7-00 |
from US $1.70 |
||
|
11
|
11
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
12
|
12
214-15676-00-00
Cover, Spring
|
214-15676-00-00 |
— | ||
|
13
|
13
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
14
|
14
214-15664-00-00
Guide, Spring
|
214-15664-00-00 |
— | ||
|
15
|
15
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
16
|
16
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
17
|
17
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
18
|
18
180-15641-00-00
Gear, Kick
|
180-15641-00-00 |
— | ||
|
19
|
19
90468-26048-00 Clip |
90468-26048-00 |
from US $1.84 |
||
|
20
|
20
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.32 |
||
