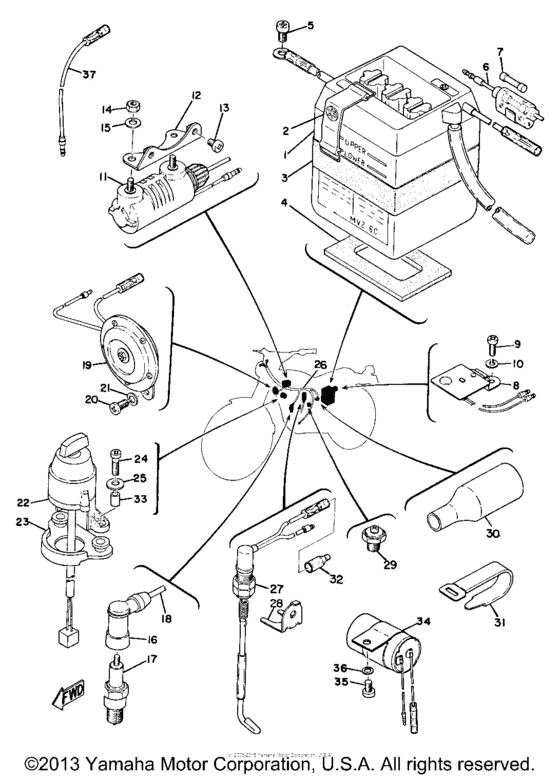

Electrical Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N22A-30-00
6N2-2A-3 Gs Battery
GS BATTERY |
BTG-6N22A-30-00 |
— | ||
| replacement | |||||
|
1
|
1
6N2-2A300-00-00
BULK PREMIER II CABL
GS BATTERY |
6N2-2A300-00-00 |
— | ||
|
2
|
2
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
2
|
2
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
3
|
3
214-82124-00-00 Band, Battery |
214-82124-00-00 |
US $9.23 |
||
|
4
|
4
214-82122-00-00
Seat, Battery
|
214-82122-00-00 |
— | ||
|
5
|
5
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
6
|
6
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
6
|
6
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
US $14.99 |
||
|
7
|
7
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
8
|
8
315-81970-61-00
Rectifier Assembly
|
315-81970-61-00 |
— | ||
|
9
|
9
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
248-82310-11-00
Ignition Coil Assembly
|
248-82310-11-00 |
— | ||
|
12
|
12
248-82316-00-00
Bracket, Ign Coil
|
248-82316-00-00 |
— | ||
|
13
|
13
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
17
|
17
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
10P |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
17
|
17
B8E-S0000-00-00 UNI CVR XA800A/ XA1210P |
B8E-S0000-00-00 |
US $4.23 |
||
|
17
|
17
BR8-ES000-00-00 Spark plug BR8ES10P |
BR8-ES000-00-00 |
US $20.32 |
||
|
17
|
17
947-01000-16-00
Spark Plug B9En
B9EN |
947-01000-16-00 |
— | ||
|
18
|
18
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
19
|
19
266-83371-12-00
Horn
|
266-83371-12-00 |
— | ||
|
20
|
20
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
251-82508-21-00
Main Switch Assembly
|
251-82508-21-00 |
— | ||
|
23
|
23
256-82515-00-00
Damper, Main Switch
|
256-82515-00-00 |
— | ||
|
24
|
24
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
24
|
24
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.98 |
||
|
25
|
25
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
25
|
25
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
25
|
25
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
26
|
26
251-82590-23-00
Wire Harness Assembly
|
251-82590-23-00 |
— | ||
|
27
|
27
248-82530-02-00
Stop Switch Assembly
|
248-82530-02-00 |
— | ||
|
28
|
28
248-82539-00-00
Stay, Stop Switch
|
248-82539-00-00 |
— | ||
|
29
|
29
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
29
|
29
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
30
|
30
214-82599-00-00
Cover, Connecter
|
214-82599-00-00 |
— | ||
|
31
|
31
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
31
|
31
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
32
|
32
248-82599-00-00
Cover, Connecter
|
248-82599-00-00 |
— | ||
|
33
|
33
90387-05285-00 Collar (256-82517-00)256-82517-00 |
90387-05285-00 |
from US $2.69 |
||
|
34
|
34
115-83350-62-00
Flasher Relay Assembly
|
115-83350-62-00 |
— | ||
|
35
|
35
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
35
|
35
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
37
|
37
263-82319-00-00
Wire, Sub-Lead
|
263-82319-00-00 |
— | ||
